Swisher The Predator WB11524 Owner's Manual

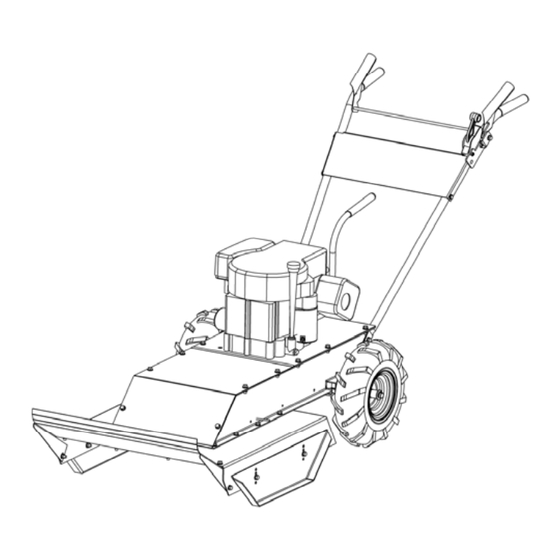

24" rough cut walk behind cutter
Hide thumbs Also See for The Predator WB11524:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
swisherinc.com
OWNER'S
MANUAL
STARTING SERIAL #:
L205-057001
MODEL NO.
WB11524
Read and follow all Safety
Rules and Instructions
before operating this
equipment.
Rev 05-069
1602 CORPORATE DRIVE, P.O. BOX 67, WARRENSBURG, MISSOURI 64093
Manufacturing quality lawn care equipment since 1945
10750
WALK BEHIND CUTTER
Operation
Service and Adjustment

Repair Parts

PHONE (660) 747-8183 FAX (660) 747-8650
Need Parts
www.SmallEngineDiscount.com
THE PREDATOR
24" ROUGH CUT
Made In The
USA
