OWNER'S
MANUAL
MODEL NO.
WB11542F
Important!
Read and follow all Safety
Rules and Instructions
before operating this
equipment.
Rev.
1602 CORPORATE DRIVE, P.O. B OX 67, WARRENSB URG, MISSOURI 64093
Manufacturing quality lawn care equipment since 1945
10655
Visit us at: www.swisherinc.com
THE FINISHING TOUCH

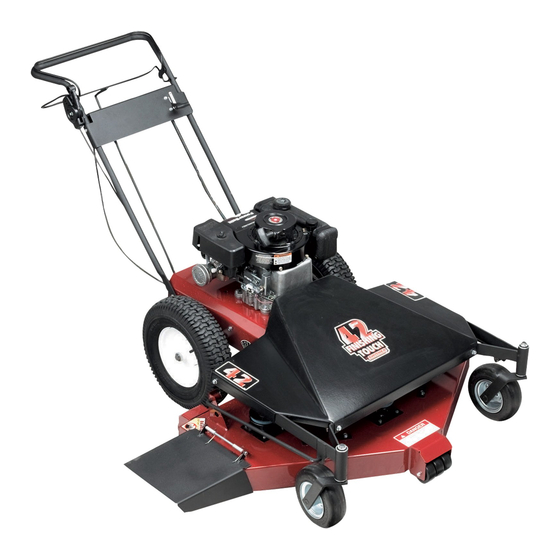

42" FINISH CUT MOWER SELF PROPELLED
Assembly
Operation
Service and Adjustment
Repair Parts
PHONE (660) 747-8183 FAX (660) 747-8650
WALK BEHIND
Made In The
USA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Swisher WB11542F
Summary of Contents for Swisher WB11542F
-
Page 1: Repair Parts
OWNER’S MANUAL MODEL NO. WB11542F Important! Read and follow all Safety Rules and Instructions before operating this equipment. Rev. 1602 CORPORATE DRIVE, P.O. B OX 67, WARRENSB URG, MISSOURI 64093 PHONE (660) 747-8183 FAX (660) 747-8650 Manufacturing quality lawn care equipment since 1945 10655 Visit us at: www.swisherinc.com... -
Page 2: Limited Warranty
1-800-222-8183. The model number, serial number, date of purchase, and the name of the authorized Swisher dealer from whom you purchased the mower will be needed before any warranty claim can be processed. - Page 3 SAFETY PRECAUTIONS AND DECALS This Safety Alert Symbol indicates important messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury. Read this manual completely. This machine is capable of amputating hands and feet, and throwing objects.
- Page 4 • Turn off the blades when not mowing. Before leaving the machine, turn off the blades and stop the engine. • Watch for traffic when operating near or crossing roadways. • Do not operate the mower if it has been dropped or damaged in any manner or if the mower vibrates excessively.
- Page 5 OPERATING YOUR NEW CUTTER The operation of any cutter can produce foreign objects to be thrown into the eyes, resulting in severe eye damage. Always wear certified safety glasses or wide- vision safety goggles before starting any cutting machine and while operating such a machine.
-
Page 6: Safety And Operational Decals
SAFETY AND OPERATIONAL DECALS Replace decal immediately if damaged. Order by part number from Swisher Mower and Machine Co. Inc. OD36 – DEFLECTOR DECAL OD30 – WARNING DECAL OD55 – DANGER DECAL OD43 – FLYING DEBRIS DECAL OD29 – SPINNING BLADE DECAL... -
Page 7: Service And Adjustments
SERVICE AND ADJUSTMENTS Stop engine, let all moving parts come to a complete stop. Disconnect spark plug. BLADE SPINDLE BELT BLADE SPINDLE BELT REPLACEMENT REMOVAL • Stop engine, let all moving parts come to a complete stop. Disconnect spark plug. •... -
Page 8: Wheel Brake Adjustment
WHEEL DRIVE BELT REPLACEMENT REMOVAL • Stop engine, let all moving parts come to a complete stop. Disconnect spark plug. • Remove belt cover. • Remove Blade Drive Belt, (See “Blade Drive Belt replacement”) • Locate belt guide for wheel drive belt and loosen. •... -
Page 10: Replacement Parts
When ordering painted parts, please indicate with corresponding letters: C = Red Parts; TK = Textured Black Parts (ex. 4207TK, 4237C) Item # Description Motor Base Wire Link Link Spring 5/16-18 Serrated Flange Nut 5/16-18 x 21/2 Grade 5 Bolt Shift Linkage Blade Driver Housing Brake Spring... - Page 11 When ordering painted parts, please indicate with corresponding letters: C = Red Parts; TK = Textured Black Parts (ex. 4207TK, 4237C) Item # Description Sway Bar 3/16 x 1 1/2 Keystock 3/4 E-Clip 3/4 x 10 GA Washer 5/16-18 x 1/2 Set Screw 4 Speed Transmission 1/4 SAE Washer Shift Link...
- Page 12 All cutter parts listed herein may be ordered directly from Swisher Mower & Machine Co. Inc. or your nearest Swisher dealer. All engine parts may be ordered from the nearest dealer of the...
