Inseego SKYUS 160 Quick Start Manual

SKYUS
This guide provides instructions for configuring and connecting your Skyus 160 or160S.

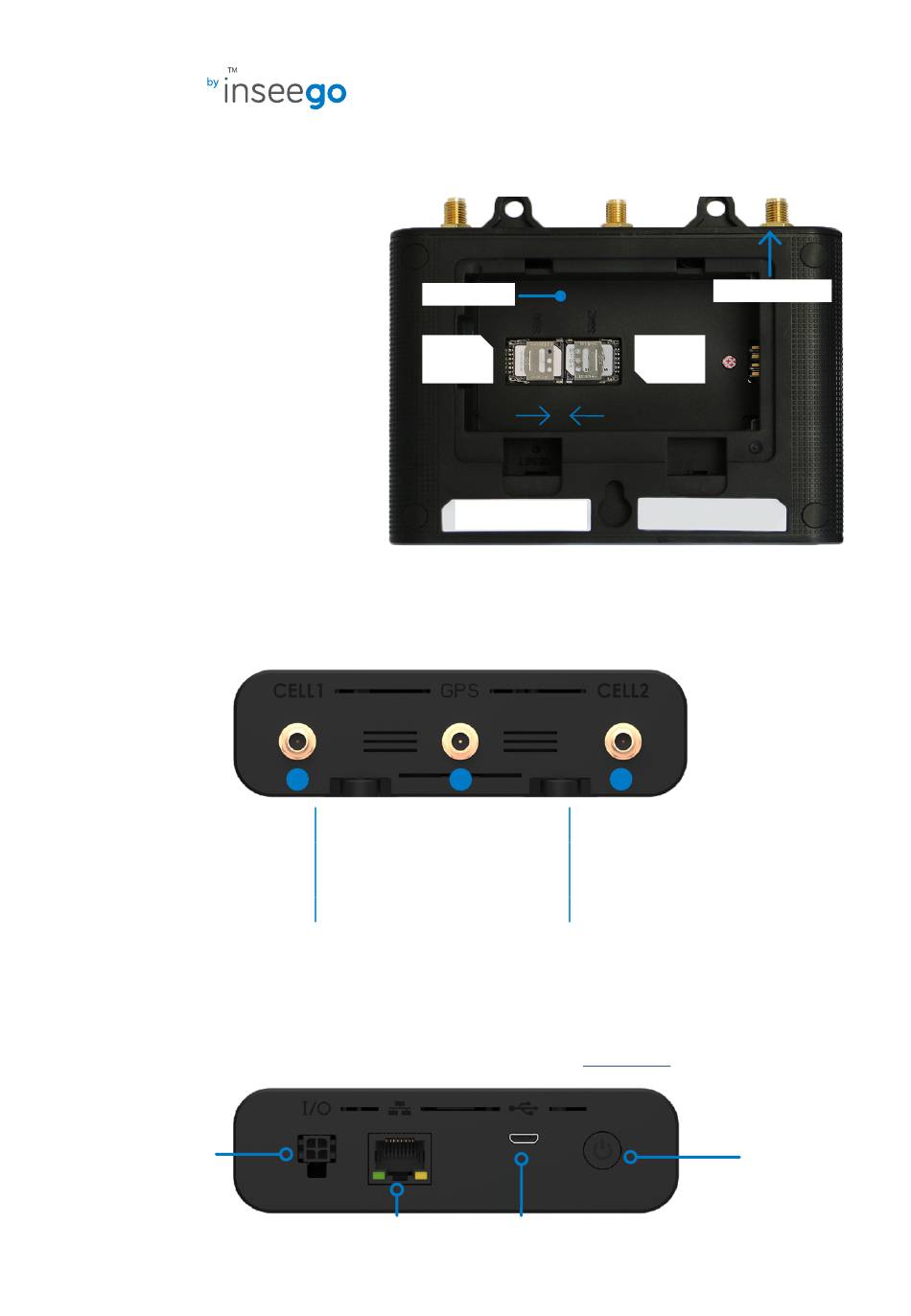

One: Install Active SIM
Step
1. Slide SIM socket retainer to
unlocked position.
2. Lift SIM retainer
3. Place SIM in appropriate slot in
orientation shown.
4. Press down retainer
5. Move retainer to locked position
Step Two: Connect Antennas
Torque all applicable antennas to 5 in-lbs to securely fasten your antennas.
At a minimum, be sure to connect antennas to CELL 1 and CELL 2.
Antenna Ports
1. CELL 1
2. GPS*
3. CELL 2
* Ensure GPS antenna is located with clear access to GNSS satellites.
Three: Connect to Your Device
Step
Power the device via 4-pin, ethernet, or USB port and connect to a PC using ethernet or
USB. Open a web browser and open the web UI by visiting
4-pin Latching
Connector
(power and GPIO)
*Press and release reset button to reset device. Press and hold for 15 seconds to factory reset to default values.
** For future release.
160
1
Frequency Range
690–960 MHz; 1700–2700 MHz
1570 - 1580 MHz
690–960 MHz; 1700–2700 MHz
Ethernet LAN
(power and/or data)
Quick Start Guide
Battery Tray
4FF
Contacts
Down
SIM 1 IN SIM 2 IN
SKYUS 160
2
Connector Type
my.skyus/
USB Device Port
(power and/or data)

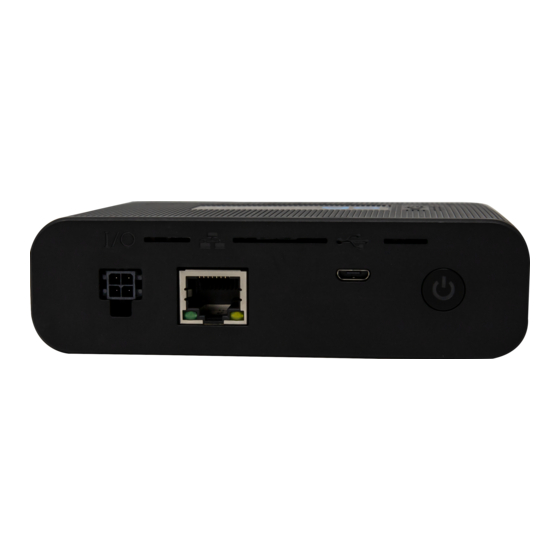

Back of Device
4FF
Contacts
Down
3
SMA
SMA
SMA
or 192.168.1.1.
Power Button
