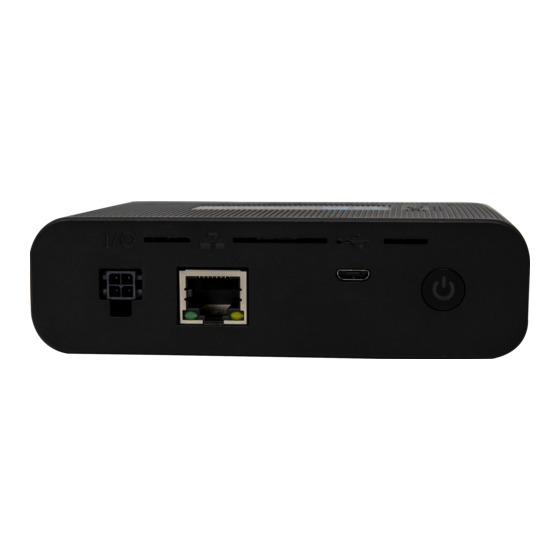

Inseego SKYUS 160 Quick Start Manual

SKYUS
This guide provides instructions for configuring and connecting your Skyus 160.

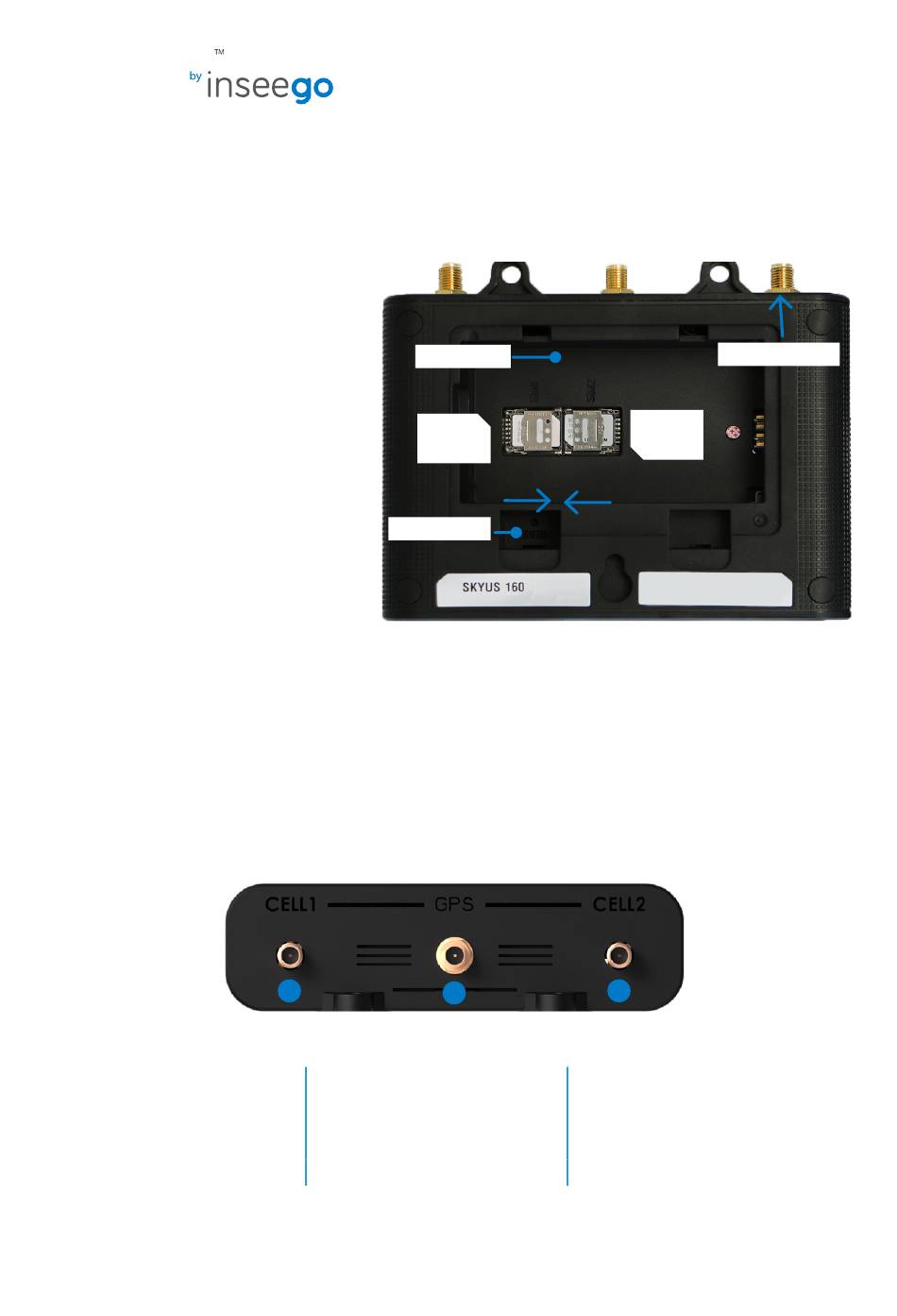

one: install SIM cards
Step
– Remove battery cover and
battery to expose SIM slots.
– Slide SIM socket retainer to
unlocked position.
– Lift SIM retainer.
– Place SIM in appropriate slot in
orientation shown. If using only
one SIM, you can use either slot.
– Press down retainer.
– Move retainer to locked position.
– Reinstall battery and battery
cover.
two: connect antennas
Step
Finger tighten your antennas onto the threaded antenna ports*. NOTE: At a minimum,
be sure to connect antennas to CELL 1 and CELL 2. The device will not work without cell
antennas connected.
Antenna Ports
160
1
1. CELL 1 690–960 MHz; 1700–2700 MHz
2. GPS**
3. CELL 2 690–960 MHz; 1700–2700 MHz
* Recommended torque is 5 in-lbs.
** Ensure GPS antenna is located with clear access to GNSS satellites.
Battery tray
4FF
contacts
down
SIM 1 IN SIM 2 IN
Reset button*
* To reset the device, press and release the reset button. To restore to factory default
settings, press and hold for 15 seconds.
2
Frequency Range
1570 - 1580 MHz
Quick start guide
Back of device
4FF
contacts
down
3
Connector Type
SMA
SMA
SMA
