Inseego Skyus 160 Quick Start Manual

SKYUS
This guide provides instructions for configuring and connecting your Skyus 160 or160S.

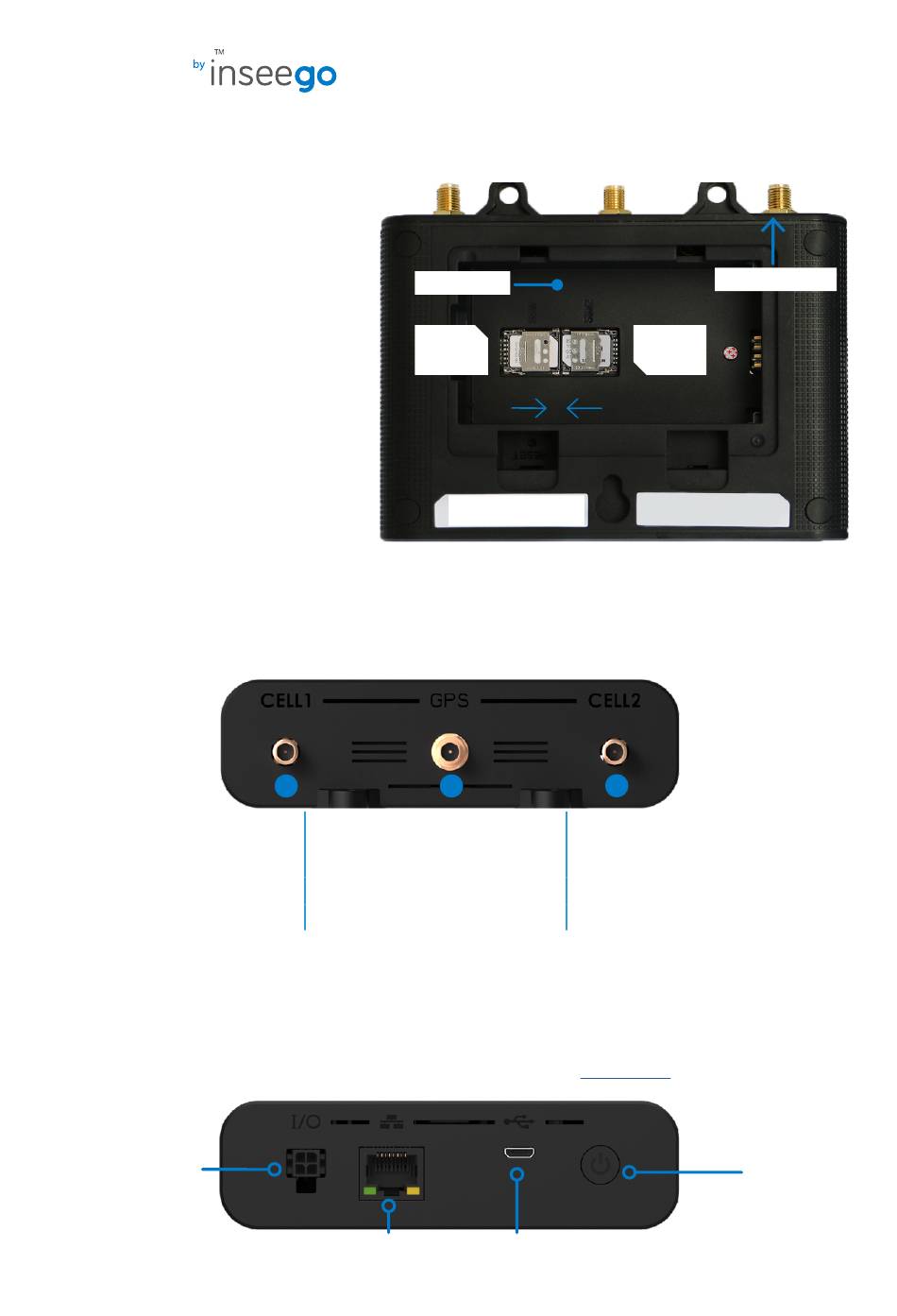

One: Install Active SIM
Step
1. Slide SIM socket retainer to
unlocked position.
2. Lift SIM retainer
3. Place SIM in appropriate slot in
orientation shown.
4. Press down retainer
5. Move retainer to locked position
Two: Connect Antennas
Step
Torque all applicable antennas to 5 in-lbs to securely fasten your antennas. At a minimum,
be sure to connect antennas to CELL 1 and CELL 2.
Antenna Ports

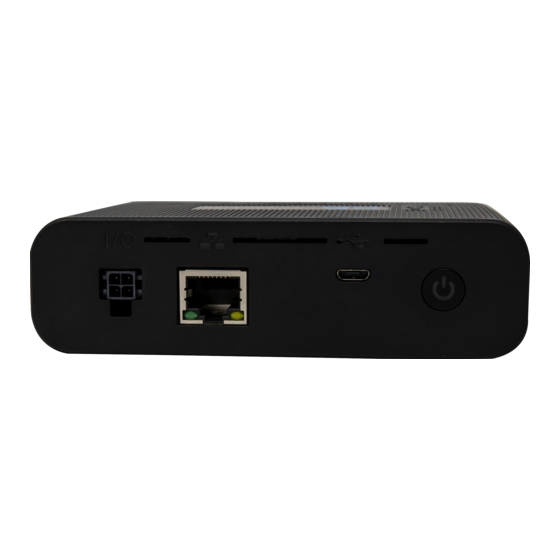

Three: Connect to Your Device
Step
Power the device via 4-pin, ethernet, or USB port and connect to a PC using Ethernet or
USB. Open a web browser and open the web UI by visiting
4-pin Latching
Connector
(power and GPIO)
160
1
1. CELL 1 690–960 MHz; 1700–2700 MHz
2. GPS*
3. CELL 2 690–960 MHz; 1700–2700 MHz
* Ensure GPS antenna is located with clear access to GNSS satellites.
Ethernet LAN
(power and/or data)
Battery Tray
4FF
Contacts
Down
SIM 1 IN SIM 2 IN
SKYUS 160
2
Frequency Range
1570 - 1580 MHz
USB Device Port
(power and/or data)
Quick Start Guide
Back of Device
4FF
Contacts
Down
3
Connector Type
SMA
SMA
SMA
my.skyus/ or 192.168.1.1.
Power Button
