Inseego SKYUS 160 Quick Start Manual

SKYUS
This guide provides instructions for configuring and connecting your Skyus 160.
Step One: Connect Antennas
Fasten your antennas onto the threaded antenna ports by screwing hand-
tight. At a minimum, be sure to connect antennas to CELL 1 and CELL 2.
Antenna Ports
Three: Connect to Your Device
Step

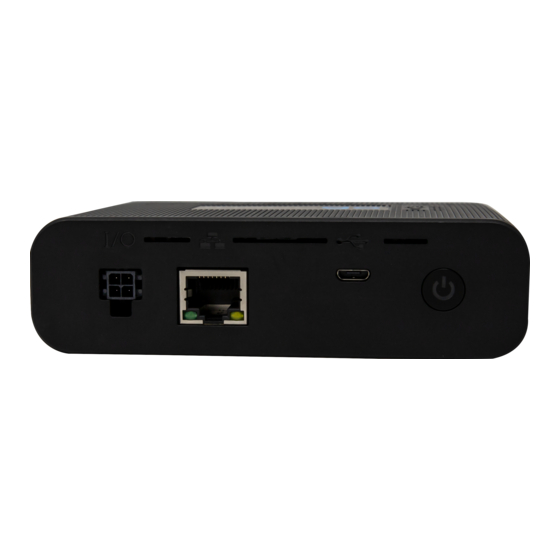

Power the device via 4-pin, ethernet, or USB port and connect to a PC using ethernet or
USB. Open a web browser and open the web UI by visiting
4-pin Latching
Connector
(power and GPIO)
Step Three: Change Your Passwords
The default password is unique to your gateway. However, it is strongly recommended to
change your passwords before using your gateway.
Admin Password: On the home page, click the 'Sign In' drop down and select 'Change
Password' to change the admin password.
Wi-Fi Passwords: In the UI, navigate to Wi-Fi > Wi-Fi Settings to change Wi-Fi passwords .
NOTE: It is strongly recommended to change both your Admin and Wi-Fi passwords (ensure
they are each different) and be sure to retain them in a safe place.
160
1
1. CELL 1 690–960 MHz; 1700–2700 MHz
2. GPS*
3. CELL 2 690–960 MHz; 1700–2700 MHz
Ethernet LAN
(power and/or data)
2
Frequency Range
1570 - 1580 MHz
USB Device Port
(power and/or data)
Quick Start Guide
3
Connector Type
SMA
SMA
SMA
my.skyus/ or 192.168.1.1.
Power Button
