SKYUS

This guide provides instructions for configuring and connecting your Skyus 160.

one: connect antennas

Step

Finger tighten your antennas onto the threaded antenna ports*. NOTE: At a minimum,

be sure to connect antennas to CELL 1 and CELL 2. The device will not work without cell

antennas connected.

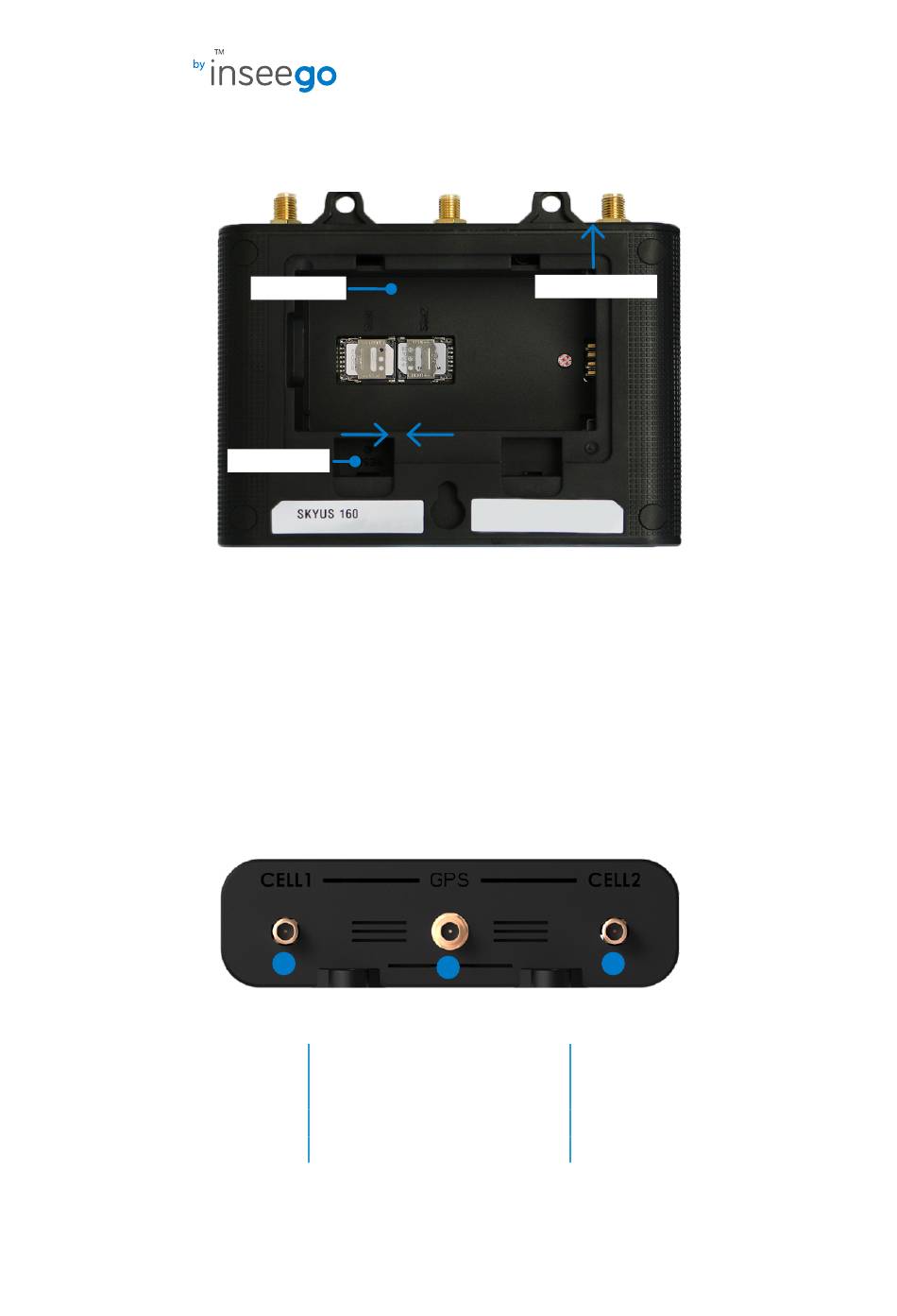

Antenna Ports

160

Battery tray

SIM 1 IN

Reset button*

* To reset the device, press and release the reset button. To restore to factory default

settings, press and hold for 15 seconds.

1. CELL 1

690–960 MHz; 1700–2700 MHz

2. GPS**

3. CELL 2

690–960 MHz; 1700–2700 MHz

* Recommended torque is 5 in-lbs.

** Ensure GPS antenna is located with clear access to GNSS satellites.

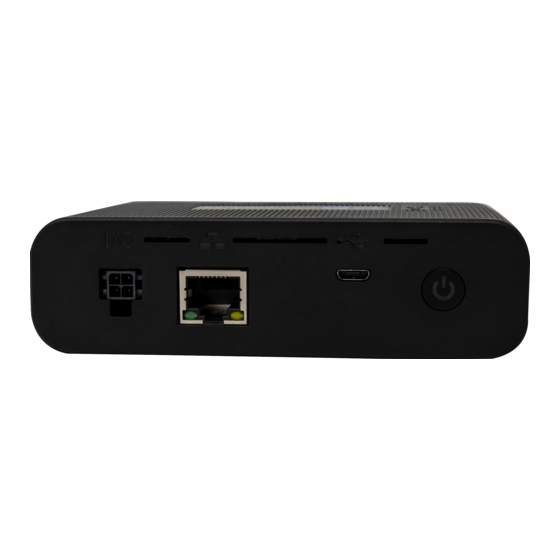

Back of device

SIM 2 IN

Frequency Range

1570 - 1580 MHz

Quick Start Guide

Connector Type

SMA
