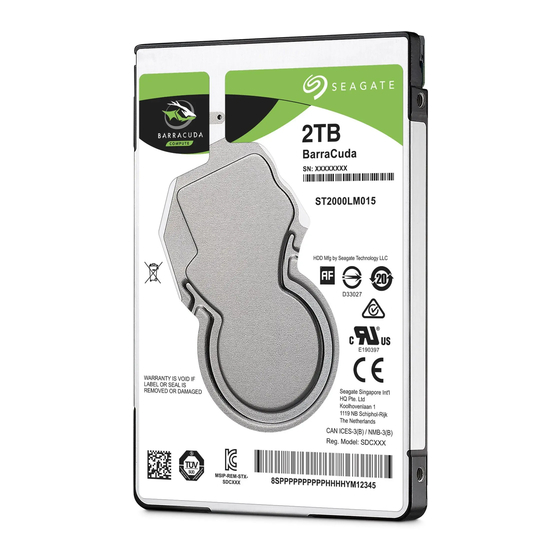

- Page 1 SATA Product Manual Standard models SED-FIPS (140-2) models ST2000LM015 ST2000LM010 ST1000LM048 ST1000LM038 ST500LM030 ST500LM033 Self-Encrypting Drive (SED) models ST500LM032 100807728, Rev. F October 2017...
- Page 2 Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. SeaTools and 3D Defense System are either a trademark or registered trademark of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. The FIPS logo is a certification mark of NIST, which does not imply product endorsement by NIST, the U.S., or Canadian governments.
-
Page 3: Table Of Contents
Seagate® Technology Support Services ........ - Page 4 S.M.A.R.T. commands ............... . 37 Seagate BarraCuda Product Manual, Rev. F...
- Page 5 Example of FIPS tamper evidence labels..............26 Seagate BarraCuda Product Manual, Rev. F...
-
Page 6: Seagate® Technology Support Services
For information regarding online support and services, visit: http://www.seagate.com/contacts/ For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/recover/ For Seagate OEM, Distribution partner and reseller portals, visit: http://www.seagate.com/partners/ Seagate BarraCuda Product Manual, Rev. F... -
Page 7: Introduction
Introduction This manual describes the functional, mechanical and interface specifications for the following Seagate® BarraCuda® model drives: Standard models Standard SED-FIPS models Standard SED models ST2000LM015 ST2000LM010 ST1000LM048 ST1000LM038 ST500LM030 ST500LM033 ST500LM032 Previous generations of Seagate Self-Encrypting Drive models were called Full Disk Encryption (FDE) models Note before a differentiation between drive-based encryption and other forms of encryption was necessary. -
Page 8: About The Serial Ata Interface
Register Block. All Serial ATA devices behave like Device 0 devices. For additional information about how Serial ATA emulates parallel ATA, refer to the Serial ATA International Organization: Serial ATA (Revision 3.2). The specification can be downloaded from www.serialata.org. Seagate BarraCuda Product Manual, Rev. F... -
Page 9: Drive Specifications
Wet bulb temperature 40.0°C max (non-operating) Altitude, operating –304.8 m to 3048 m (–1000 ft to 10,000+ ft) Altitude, non-operating –304.8 m to 12,192 m (–1000 ft to 40,000+ ft) (below mean sea level, max) Seagate BarraCuda Product Manual, Rev. F... -
Page 10: Formatted Capacity
Accessible capacity may vary depending on operating environment and formatting. † Seagate does not recommend operating at sustained case temperatures above 60°C. Operating at higher temperatures will reduce useful life of the product. If the drive is powered-off before issuing flush cache command, in some instances, Note the end user data in the DRAM cache might not be committed to the disk. -
Page 11: Physical Organization
(such as track-to-track and average), are expected to meet the noted values. However, due Note to the manner in which these drives are formatted, benchmark tests that include command overhead or measure logical seeks may produce results that vary from these specifications. Seagate BarraCuda Product Manual, Rev. F... -
Page 12: Start/Stop Times
+5V input average (25° C) Spinup (max) 1.00A Write average 1.70W 1.80W Read average 1.60W 1.70W Idle, low power mode 0.45W 0.50W Standby 0.13W Sleep 0.13W Standby power is measured at steady state (after 200ms from transition) Seagate BarraCuda Product Manual, Rev. F... - Page 13 Drive Specifications 2.7.1.1 Typical current profiles The typical 5V startup and operation current profile is shown in Figure 1 Figure Figure 1 Typical 1D - 5V Startup and Operation Current Profile Seagate BarraCuda Product Manual, Rev. F...
- Page 14 Drive Specifications Figure 2 Typical 2D - 5V Startup and Operation Current Profile Seagate BarraCuda Product Manual, Rev. F...
-
Page 15: Conducted Noise
If the standby timer reaches zero before any drive activity is required, the drive makes a transition to standby mode. In both Idle and standby mode, the drive accepts all commands and returns to active mode when disk access is necessary. Seagate BarraCuda Product Manual, Rev. F... -
Page 16: Environmental Specifications
-304.8m to 12,192m Altitude (-1000ft to 10,000ft) (-1000ft to 40,000ft) Seagate does not recommend operating at sustained case temperatures above 60°C. Note Operating at higher temperatures will reduce useful life of the product. The recommended storage period: • 1 year under controlled conditions of 34°C 90%RH or less Note •... -
Page 17: Vibration
Test for prominent discrete tones (PDTs) Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses the lower limit for the threshold curve* to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards. -
Page 18: Electromagnetic Immunity
Testing to be done with magnet.375” dia. x 0.100” Ni-plated NdFeB; B,~11.5 kG, magnetized along its length; the magnet is ori- ented with the length perpendicular to the drive cover/PCBA. Drive to be properly secured during test. Seagate BarraCuda Product Manual, Rev. F... -
Page 19: Reliability
Seagate drives are tested in representative end-user systems. Although CE-marked Seagate drives comply with all relevant regulatory requirements and standards for the drives, Seagate cannot guarantee that all system-level products into which the drives are installed comply with all regulatory requirements and standards applicable to the system-level products. The drive is designed for operation inside a properly designed system (e.g., enclosure designed for the drive), with properly shielded I/O cable (if... -
Page 20: Canada Ices-003
2.12.6 Morocco Commodity Mark To satisfy our OEM customers, Seagate has added the Moroccan Commodity Mark to the drives provided to the OEM for the sale of Customer Kits produced by our OEM customers that are intended to be incorporated into the OEM's finished system-level product by an end user. -
Page 21: Environmental Protection
2.13.1.1 Restriction of Hazardous Substances in Electrical and Electronic Equipment Seagate drives are designed to be compliant with the European Union RoHS "Recast" Directive 2011/65/EU (RoHS 2) as amended by Directive (EU) 2015/863. The RoHS2 restricts the use of certain hazardous substances such as Lead, Cadmium, Mercury, Hexavalent Chromium, Polybrominated Biphenyls (PBB) and Polybrominated Diphenyl Ether (PBDE), BisBis(2-Ethylhexyl) phthalate (DEHP), Benzyl butyl phthalate (BBP), Dibutyl phthalate (DBP), and Diisobutyl phthalate (DIBP) in electrical and electronic equipment (EEE). -
Page 22: Taiwan Requirements - Taiwan Rohs
Users should use caution exposing any electronic components to uncontrolled chemical pollutants and corrosive chemicals as electronic drive component reliability can be affected by the installation environment. The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. In addition, electronic components should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an ambient relative humidity greater than 95%. -
Page 23: Configuring And Mounting The Drive
For installations which require cables, users can connect the drive as shown in Figure Figure 3 Attaching SATA Cabling Signal connector Power connector Signal cable Power cable Each cable is keyed to ensure correct orientation. Seagate BarraCuda Product Manual, Rev. F... -
Page 24: Drive Mounting
7.000 0.200 4MM MIN. SCREW DEPTH FROM BOTH SIDES M3 PADS. NO THRU. 3.5+.075-.3X90 RECOMMENDED TEMPERATURE MEASUREMENT LOCATION (13.430) 4 X M3 X 0.5-6H (3.500) 2.5MM MIN FULL THREAD. NO THRU 3.5 +.075 -.3 X90 Seagate BarraCuda Product Manual, Rev. F... - Page 25 7.000 0.200 4MM MIN. SCREW DEPTH FROM BOTH SIDES M3 PADS. NO THRU. 3.5+.075-.3X90 RECOMMENDED TEMPERATURE MEASUREMENT LOCATION (13.430) 4 X M3 X 0.5-6H (3.500) 2.5MM MIN FULL THREAD. NO THRU 3.5 +.075 -.3 X90 Seagate BarraCuda Product Manual, Rev. F...
- Page 26 2X (3.000) BOTH SIDES 7.000 0.200 FROM M3 PADS. NO THRU 3.5 +.075 -.3 X90 RECOMMENDED TEMPERATURE MEASUREMENT LOCATION 4 X M3 X 0.5-6H 2.5MM MIN FULL THREAD. NO THRU 3.5 +.075 -.3 X90 Seagate BarraCuda Product Manual, Rev. F...
-
Page 27: About Fips
In addition Security Level 2 requires, at a minimum, role-based authentication in which a cryptographic module authenticates the authorization of an operator to assume a specific role and perform a corresponding set of services. Figure 7 Example of FIPS tamper evidence labels. For reference only. May not represent actual drive. Note Seagate BarraCuda Product Manual, Rev. F... -
Page 28: About (Sed) Self-Encrypting Drives
The Trusted Computing Group (TCG) is an organization sponsored and operated by companies in the computer, storage and digital communications industry. Seagate's SED models comply with the standards published by the TCG. To use the security features in the drive, the host must be capable of constructing and issuing the following two SATA commands: •... -
Page 29: Random Number Generator (Rng)
In addition to providing a locking mechanism to prevent unwanted firmware download attempts, the drive also only accepts download files which have been cryptographically signed by the appropriate Seagate Design Center. Three conditions must be met before the drive will allow the download operation: 1. -
Page 30: Serial Ata (Sata) Interface
• the signal pins and the rest of the power pins. There are three power pins for each voltage. One pin from each voltage is used for pre-charge when installed in a blind-mate backplane configuration. All used voltage pins (V ) must be terminated. Seagate BarraCuda Product Manual, Rev. F... -
Page 31: Supported Ata Commands
Set Max Features Password: register as defined to the right. Lock: Unlock: Freeze Lock: Set Max Address Ext Set Multiple Mode S.M.A.R.T. Disable Operations B0h/D9h S.M.A.R.T. Enable/Disable Autosave B0h/D2h S.M.A.R.T. Enable Operations B0h/D8h Seagate BarraCuda Product Manual, Rev. F... - Page 32 Write Sectors Extended ATA-standard power-management commands Check Power Mode Idle Idle Immediate Sleep Standby Standby Immediate ATA-standard security commands Security Set Password Security Unlock Security Erase Prepare Security Erase Unit Security Freeze Lock Security Disable Password Seagate BarraCuda Product Manual, Rev. F...
-
Page 33: Identify Device Command
Number of current logical heads xxxx Number of current logical sectors per logical track xxxx 57–58 Current capacity in sectors xxxx Number of sectors transferred during a Read Multiple or Write Multiple command xxxx Seagate BarraCuda Product Manual, Rev. F... - Page 34 FFFE Hardware reset value (see description following this table) xxxx Auto acoustic management setting xxxx Stream Min. Request Size 0000 Streaming Transfer Time - DMA 0000 Streaming Access Latency - DMA and PIO 0000 Seagate BarraCuda Product Manual, Rev. F...
- Page 35 160–221 ATA-reserved 0000 Transport major version number 101F 223–254 ATA-reserved 0000 Integrity word xxA5 See the bit descriptions below for words 63, 88 and 93 of the Identify Drive data. (on next page) Note Seagate BarraCuda Product Manual, Rev. F...
- Page 36 Ultra DMA mode 4 is currently active. Ultra DMA mode 5 is currently active. Ultra DMA mode 6 is currently active. Word 93 1 = 80-conductor cable detected, CBLID above VIH 0 = 40-conductor cable detected, CBLID below VIL Seagate BarraCuda Product Manual, Rev. F...
-
Page 37: Set Features Command
Disable the Free Fall Protection feature (41 above enables the Free Fall Protection feature) Report full capacity available At power-on, or after a hardware or software reset, the default values of the features are as indicated above Note Seagate BarraCuda Product Manual, Rev. F... -
Page 38: Commands
S.M.A.R.T. Enable Operations S.M.A.R.T. Disable Operations S.M.A.R.T. Return Status If an appropriate code is not written to the Features Register, the Note command is aborted and 0x 04 (abort) is written to the Error register. Seagate BarraCuda Product Manual, Rev. F... - Page 39 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00 Publication Number: 100807728, Rev. F...
