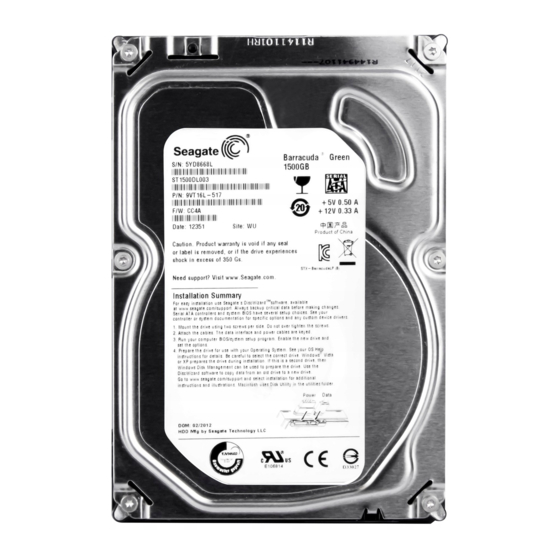

- Page 1 Product Manual Barracuda® Green ST2000DL003 ST1500DL003 100649225 Rev. A November 2010...
- Page 2 In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. Seagate reserves the right to change, without...
-
Page 3: Table Of Contents
Seagate Technology Support Services ........ - Page 4 Barracuda Green SATA Product Manual, Rev. A...
- Page 5 Mounting dimensions (2000 and 1500GB models) ....... . 24 Barracuda Green SATA Product Manual, Rev. A...
- Page 6 Barracuda Green SATA Product Manual, Rev. A...
-
Page 7: Seagate Technology Support Services
• Authorized Service Centers For information regarding Warranty Support, visit http://www.seagate.com/www/en-us/support/warranty_&_returns_assistance For information regarding data recovery services, visit http://www.i365.com For Seagate OEM and Distribution partner portal, visit https://direct.seagate.com/portal/system For Seagate reseller portal, visit http://spp.seagate.com Barracuda Green SATA Product Manual, Rev. A... - Page 8 Barracuda Green SATA Product Manual, Rev. A...
-
Page 9: Introduction
1.0 Introduction This manual describes the functional, mechanical and interface specifications for the following Seagate ® Barracuda Green SATA model drives: ST2000DL003 ST1500DL003 These drives provide the following key features: • 5900 RPM spindle speed • Seagate SmartAlign™ technology manages read-modify-write conditions dynamically in the drive without host computer intervention, allowing a 4K drive to behave like a legacy 512-byte sector drive without the necessity of a hardware utility. - Page 10 Serial ATA devices behave like Device 0 devices. For additional information about how Serial ATA emulates parallel ATA, refer to the “Serial ATA International Organization: Serial ATA Revision 3.0”. The specification can be downloaded from www.sata-io.org. Barracuda Green SATA Product Manual, Rev. A...
-
Page 11: Drive Specifications
Ultra DMA modes: 0 to 6 Cache buffer 64MB 64MB Height (max) 26.1mm / 1.028 in 26.1mm / 1.028 in Width (max) 101.6mm / 4.0 in 101.6mm / 4.0 in 0.010 in) 0.010 in) ± ± Barracuda Green SATA Product Manual, Rev. A... - Page 12 2.1 bels (typical) 2.3 bels (max) 2.3 bels (max) Seek 2.3 bels (typical) 2.3 bels (typical) 2.4 bels (max) 2.4 bels (max) Nonrecoverable read errors 1 per 10 bits read 1 per 10 bits read Barracuda Green SATA Product Manual, Rev. A...
-
Page 13: Formatted Capacity
Sectors per track 16,383 LBA mode When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where n is the number of guaranteed sectors as defined above. Barracuda Green SATA Product Manual, Rev. A... -
Page 14: Recording And Interface Technology
(such as track-to-track and average), are expected to meet the noted values. Note However, due to the manner in which these drives are formatted, benchmark tests that include command overhead or measure logical seeks may produce results that vary from these specifications. Barracuda Green SATA Product Manual, Rev. A... -
Page 15: Start/Stop Times
0.085 0.01 *During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. †5W IDLE, Standby and Sleep,with DIPLM Enabled Barracuda Green SATA Product Manual, Rev. A... -
Page 16: Figure 1 Typical Current Profiles (5V)
Drive Specifications www.seagate.com Figure 1 Typical Current Profiles (5V) Figure 2 Typical Current Profiles (12V) Barracuda Green SATA Product Manual, Rev. A... -
Page 17: Conducted Noise
If the standby timer reaches zero before any drive activity is required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the drive accepts all commands and returns to Active mode when disk access is necessary. Barracuda Green SATA Product Manual, Rev. A... -
Page 18: Environmental Specifications
These drives comply with the performance levels specified in this document when subjected to a maximum operating shock of 80 Gs based on half-sine shock pulses of 2ms during read operations. Shocks should not be repeated more than two times per second. Barracuda Green SATA Product Manual, Rev. A... -
Page 19: Vibration
2.3 bels (typ) All models 2.3 bels (max) 2.4 bels (max) *During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. Barracuda Green SATA Product Manual, Rev. A... -
Page 20: Test For Prominent Discrete Tones (Pdts)
Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389- 7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards. -
Page 21: Fcc Verification
As a subassembly, no Federal Communications Commission verification or certification of the device is required. Seagate has tested this device in enclosures as described above to ensure that the total assembly (enclosure, disk drive, motherboard, power supply, etc.) does comply with the limits for a Class B computing device, pursuant to Subpart J, Part 15 of the FCC rules. -
Page 22: Environmental Protection
The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. In addition, electronic components should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an ambient relative humidity greater than 95%. -
Page 23: Configuring And Mounting The Drive
For installations which require cables, you can connect the drive as illustrated in Figure 3 Figure 3 Attaching SATA cabling Signal connector Power connector Signal cable Power cable Each cable is keyed to ensure correct orientation. Barracuda LP drives support latching SATA connectors. Barracuda Green SATA Product Manual, Rev. A... -
Page 24: Drive Mounting
• The screws should be inserted no more than 0.150 in (3.81mm) into the bottom or side mounting holes. Do not overtighten the mounting screws (maximum torque: 6 in per lb). Figure 4 Mounting dimensions (2000 and 1500GB models) Recommended case temperature measurement location Barracuda Green SATA Product Manual, Rev. A... -
Page 25: Serial Ata Interface
Segment Pin Function Definition Ground 2nd mate Differential signal pair A from PHY Ground 2nd mate Signal Differential signal pair B from PHY Ground 2nd mate Key and spacing separate signal and power segments Barracuda Green SATA Product Manual, Rev. A... -
Page 26: Supported Ata Commands
See “S.M.A.R.T. commands” on page 34 for details and subcommands used in the S.M.A.R.T. implementation. Table 6 Supported ATA commands Command name Command code (in hex) Check Power Mode Device Configuration Freeze Lock / C1 Device Configuration Identify / C2 Barracuda Green SATA Product Manual, Rev. A... - Page 27 Read Native Max Address Extended Read Sectors Read Sectors Extended Read Sectors Without Retries Read Verify Sectors Read Verify Sectors Extended Read Verify Sectors Without Retries Recalibrate Security Disable Password Security Erase Prepare Barracuda Green SATA Product Manual, Rev. A...
- Page 28 / D3 S.M.A.R.T. Write Log Sector / D6 Standby Standby Immediate Write Buffer Write DMA Write DMA Extended Write DMA FUA Extended Write DMA Without Retries Write Log Extended Write Multiple Write Multiple Extended Barracuda Green SATA Product Manual, Rev. A...
-
Page 29: Identify Device Command
(40 ASCII characters, padded with blanks to end of string) ST1500DL003 (Bits 7–0) Maximum sectors per interrupt on Read multiple and 8010 Write multiple (16) Reserved 0000 Standard Standby timer, IORDY supported and may be disabled 2F00 Barracuda Green SATA Product Manual, Rev. A... - Page 30 Reserved for future Serial ATA definition xxxx Serial ATA features supported xxxx Serial ATA features enabled xxxx Major version number 01F0 Minor version number 0028 Command sets supported 346B Command sets supported 7F01 Barracuda Green SATA Product Manual, Rev. A...
- Page 31 See the bit descriptions below for words 63, 84, and 88 of the Identify Drive data. Note Table 8 Bit Descriptions Description (if bit is set to 1) Word 63 Multiword DMA mode 0 is supported. Multiword DMA mode 1 is supported. Barracuda Green SATA Product Manual, Rev. A...
- Page 32 Ultra DMA mode 1 is currently active. Ultra DMA mode 2 is currently active. Ultra DMA mode 3 is currently active. Ultra DMA mode 4 is currently active. Ultra DMA mode 5 is currently active. Barracuda Green SATA Product Manual, Rev. A...
-
Page 33: Set Features Command
Disable use of SATA features Enable read look-ahead (read cache) feature (default). Report full capacity available At power-on, or after a hardware or software reset, the default values of the features are as indicated above. Note Barracuda Green SATA Product Manual, Rev. A... -
Page 34: Commands
S.M.A.R.T. Enable Operations S.M.A.R.T. Disable Operations S.M.A.R.T. Return Status If an appropriate code is not written to the Features Register, the command is aborted and 0x 04 (abort) is Note written to the Error register. Barracuda Green SATA Product Manual, Rev. A... - Page 35 Device Configuration Set 27 Idle mode 15 Device Reset 27 Information Technology Equipment (ITE) 20 dissipation 15 Initialize Device Parameters 27 Download Microcode 27 Input noise ripple 17 input voltage 15 interface 14 Barracuda Green SATA Product Manual, Rev. A...
- Page 36 Security Freeze 28 Security Set Password 28 Security Unlock 28 quick reference 11 See “S.M.A.R.T. commands” on page 34 26 Seek 28 Seek time 14 Radiated RF immunity 20 Serial ATA (SATA) interface 25 Barracuda Green SATA Product Manual, Rev. A...
- Page 37 14 Write Buffer 28 Write DMA 28 Write DMA Extended 28 Write DMA FUA Extended 28 Write DMA Without Retries 28 Write Log Extended 28 Write Multiple 28 Write Multiple Extended 28 Barracuda Green SATA Product Manual, Rev. A...
- Page 38 Barracuda Green SATA Product Manual, Rev. A...
- Page 40 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00 Publication Number: 100649225, Rev. A...
