THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions

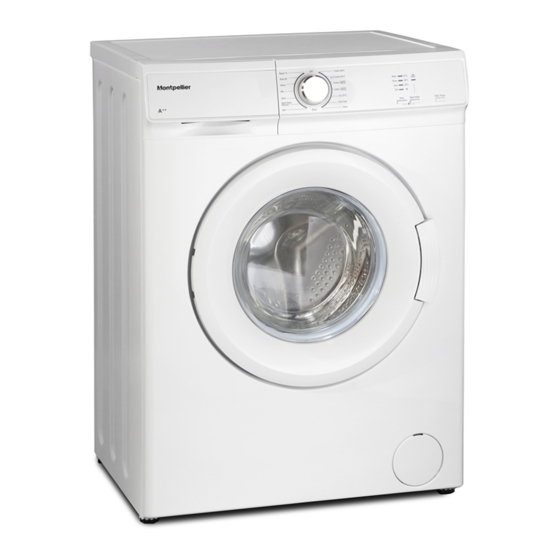

Freestanding Washing Machine
MW6201P -6kg - 1200rpm
White
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Advertisement
Table of Contents
Related Manuals for montpellier MW6201P
Summary of Contents for montpellier MW6201P
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Freestanding Washing Machine MW6201P -6kg - 1200rpm White Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier Washing Machine Our Washing Machines have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Washing Machine to ensure you get the most from your purchase.
- Page 3 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...
-
Page 4: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................2 1.2. During Use ........................6 1.3. Packaging and Environment..................7 1.4. Savings Information .......................7 2. TECHNICAL SPECIFICATIONS ..................8 2.1. General Appearance......................8 2.2. Technical Specifications ....................8 3. INSTALLATION .........................9 3.1. Removing the Transit Bolts....................9 3.2. -
Page 5: Safety Instructions
1. SAFETY INSTRUCTIONS Operating voltage / frequency (V/Hz) (220-240) V~/50Hz Total current (A) Water pressure (Mpa) Maximum 1 Mpa / Minimum 0.1Mpa Total power (W) 2100 Maximum washing capacity (dry laundry) (kg) • Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base. -
Page 6: General Safety Warnings
NOTE: For a softcopy of this user manual, please contact the following address: “washingmachine@ standardtest.info”. In your e-mail, please provide the model name and serial number (20 digits) which you can find on the appliance door. Read this user manual carefully. Your machine is for domestic use only. - Page 7 as a result of quality checks during production. This will not affect the operation of your Washing Machine. • The packaging of the machine could be hazardous to children. Do not allow children to play with the packaging or small parts from the Washing Machine. •...
- Page 8 injuries. RISK OF BURNS Do not touch the drain hose or any discharged water while your Washing Machine is running. The high temperatures involved pose a burn risk. RISK OF DEATH FROM ELECTRICAL CURRENT • Do not connect your Washing Machine to the mains electricity supply using an extension lead.
- Page 9 corrosion. Never use paint removing materials in your machine. • Never use products that contain solvents in your machine. • Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters and coins. Risk of fire and explosion Risk of falling and injury •...
-
Page 10: During Use
1.2. During Use • Keep pets away from your machine. • Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened. -
Page 11: Packaging And Environment
NOTE: Specifications for the machine may vary depending on the product purchased. 1.3. Packaging and Environment Removal of packaging materials Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. -
Page 12: Technical Specifications
2. TECHNICAL SPECIFICATIONS 2.2. Technical Specifications Operating voltage / (220-240) frequency V~/50Hz (V/Hz) Total current (A) Maximum: Water 1 Mpa pressure Minimum : (Mpa) 0.1 Mpa Total 2100 power (W) Maximum dry laundry capacity (kg) Spinning revolution 1200 (rev / min) Programme number 2.1. -
Page 13: Installation
3. INSTALLATION 3.2. Adjusting the Feet / Adjusting Adjustable Stays 3.1. Removing the Transit Bolts 1. Do not install your machine on a surface (such as carpet) that would prevent ventilation at the base. • To ensure silent and vibration-free operation of your machine, install it on a firm surface. -
Page 14: Water Inlet Hose Connection
The mains cord of your washing machine or double water inlet connection (hot • is equipped with an earthed plug. This and cold) depending on the machine plug should always be inserted to an specifications. The white capped hose earthed socket of 10 amps. should be connected to cold water inlet and red capped hose to the hot The plug should always be inserted to a... -
Page 15: Water Discharge Connection
using the supplied new fill hose. Old hoses 4.1. Detergent Drawer must not be reused. 3.5. Water Discharge Connection Connect the water drain hose to a • standpipe or to the outlet elbow of a household sink, using additional equipment. Never attempt to extend the water drain •... -
Page 16: Sections
4.2. Sections 4.3. Program Dial Main wash detergent compartment: This compartment is for liquid or powder detergents or limescale remover. The fluid detergent level plate will be supplied inside To select the desired programme, turn • your machine. (*) the programme dial either clockwise or Fabric conditioner, starch, detergent anti-clockwise until the marker on the compartment:... -
Page 17: Using Your Washing Machine
stage). occur due to foreign materials damaging your machine are not The display panel shows “Finished” when covered by the warranty. the selected programme is complete. The display panel also indicates if a fault 4. Close zips and fasten any hooks and has occurred with your machine. -
Page 18: Adding Detergent To The Machine
amount of detergent to use. NOTE: Take care not to exceed the In areas of hard water, more detergent • maximum load of the drum as this will give will be required. poor wash results and cause creasing. Refer to the washing programme tables for The amount of the detergent required •... -
Page 19: Half-Load Detection System
5.6. Half-Load Detection System 1. Temperature Selection Your machine features a half-load detection system. If you put less than half the maximum load Wash Temp. Rinse of laundry into your machine it will Spin automatically set the half-load function, regardless of the programme you selected. This means that the selected programme will take less time to complete and will use less water and energy. - Page 20 3. Anti- Allergic(*) 6. Extra Rinse(*) Anti- Wash allergic Rinse Wash Spin Extra Rinse rinse Spin You can add an additional rinse operation to your laundry using this additional function. You can add an additional rinse operation Your machine will carry out all rinsing steps to the end of the selected wash programme with hot water.
-
Page 21: Child Lock
the maximum load of laundry into your continues from where it was left. machine, the half-load function will be To deactivate the child lock, press and automatically set, regardless of the hold additional functions 1 and 2 buttons programme you selected. This means simultaneously for at least 3 seconds. -
Page 22: Programme Table
6. PROGRAMME TABLE Programme Laundry type / Descriptions Very dirty, cotton and flax textiles. (Underwear, linen, COTTON 90° 90° tablecloth, towel (maximum 3.0 kg), bedclothes, etc.) Dirty cotton and flax textiles. (Underwear, linen, Pre-Wash Cotton 60° 1&2 tablecloth, towel (maximum 3,0 kg), bedclothes, etc.) COTTON ECO Dirty cotton and flax textiles. -
Page 23: Cleaning And Maintenance
7. CLEANING AND 7.2. Water Inlet Filters Water inlet filters prevent dirt and foreign MAINTENANCE materials from entering your machine. We recommend that these filters are cleaned when your machine is unable to receive 7.1. Warning sufficient water, although your water supply is on and the tap is open. -
Page 24: Pump Filter
7.3. Pump Filter meet the holes on the front panel side. 6. Close the filter cover. WARNING: The water in the pump may be hot, wait until it has cooled down before carrying out any cleaning or maintenance. (*) Specifications may vary depending on the machine purchased. -
Page 25: Flush Stopper / Body / Drum
8. FLUSH STOPPER / BODY / DRUM 1. Flush stopper Remove the detergent drawer and disassemble the flush stopper. Clean thoroughly to completely remove any softener residue. Refit the flush stopper after cleaning and check that it is seated properly. 2. -
Page 26: Troubleshooting
9. TROUBLESHOOTING Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should: Unplug your machine from the mains power supply. •... -
Page 27: Automatic Fault Warnings And What To Do
FAULT POSSIBLE CAUSE TROUBLESHOOTING Increase the amount of detergent following the Hard water. manufacturer’s instructions. Unsatisfactory washing result. Your laundry is too tightly packed Check that your laundry is spread out. together in the drum. As soon as the machine is The end of water drain hose is too Check that the drain hose is at a suitable height. -
Page 28: Describing The Energy Label And Saving Energy
11. DESCRIBING THE ENERGY Use programmes of shorter duration for lightly soiled laundry and daily LABEL AND SAVING ENERGY washes. Carry out cleaning and maintenance at regular intervals. 1. Brand 2. Model 3. Energy Class 4. Energy Consumption 5. Noise Value While Washing 6. - Page 29 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 30 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
