SmartTrunk and Port Connections

The SmartTrunk application dynamically determines network loops and is used
concurrently with the Spanning Tree protocol. The SmartTrunk application only
acknowledges its neighboring switches. If a user goes through several switch
hops, then loops back to the first switch hop (creating a loop), a common
connection between two switches (any two) will go into a Blocking state (see
Figure 1-2).
1-4
Chassis
9C106
SmartSwitch 2200
PWR
C P U
2E43-27
COM
Users

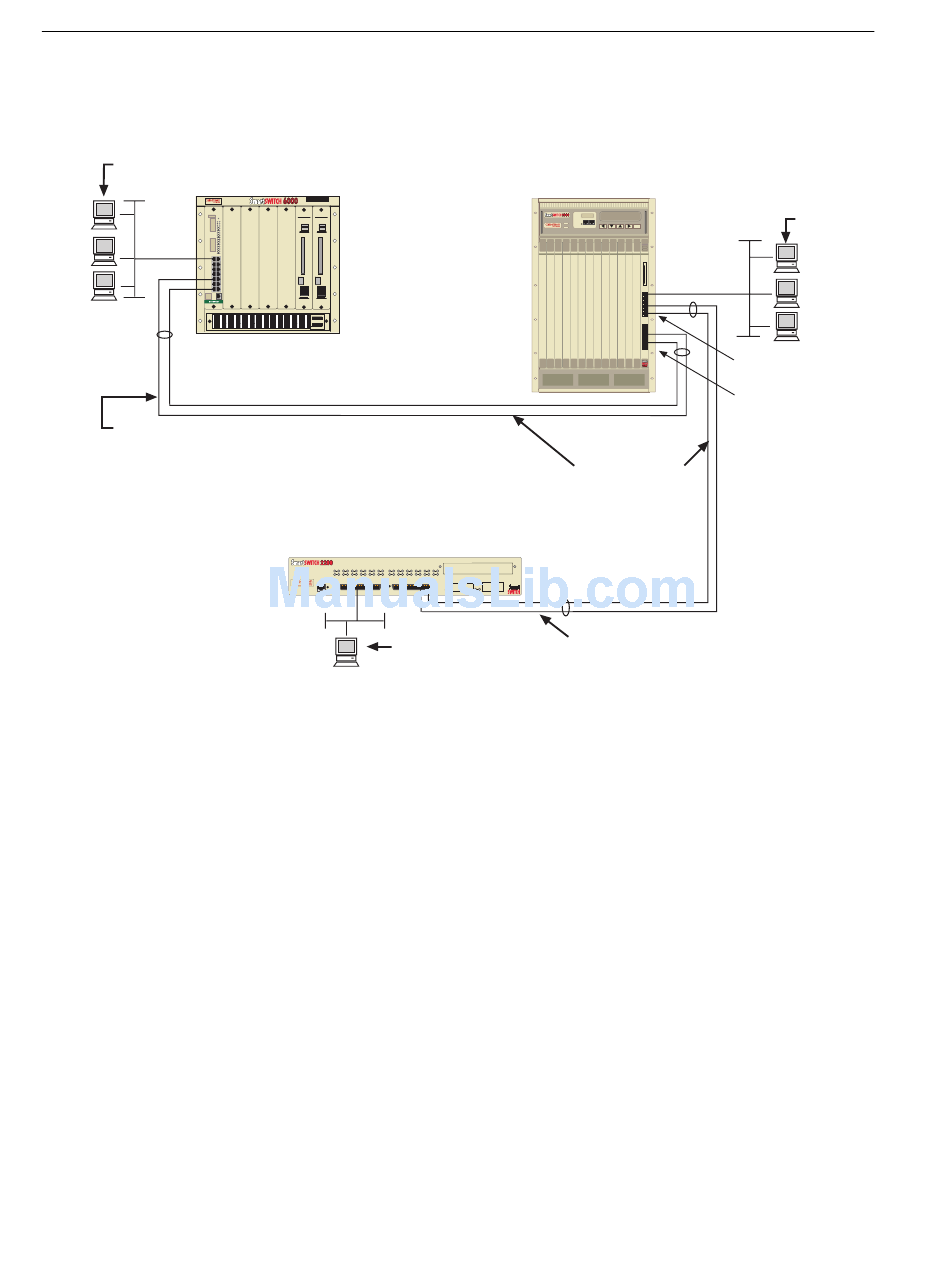

Figure 1-1. Chassis with Multiple SmartTrunk Groups Enabled
SmartSwitch 9000
Chassis
9H422-12
Both Groups
on the
SmartSwitch 9000
Group A on the
SmartSwitch 2200
Users
Group A
Group B
