2. Set the device on a flat surface near an AC power source, making sure there
are at least two inches of space on all sides for proper air flow.
3. If installing a single switch only, go to "Connecting to a Power Source" at the
end of this chapter.
4. If installing multiple switches, attach four adhesive feet to each one. Place each
device squarely on top of the one below, in any order.

Installing an Optional Module into the Switch

10 0B
A S E -F
X S in
g le m
o d e M
o d u le
Caution: DO NOT install slide-in modules with the switch powered on. Be sure you
power off the switch before installing any module.
Note: The stacking module must only be installed in port 25.
To install an optional module into the switch, do the following:
1. Disconnect power to the switch.
2. Remove the blank metal plate (or a previously installed module) from the
appropriate port by removing the two screws with a flat-head screwdriver.
3. With the module still in the anti-static bag, touch the metal frame of the switch to
prevent damage caused by static electricity discharge. Also, it is recommended
to use an ESD wrist strap during installation.
4. Remove the module from the anti-static shielded bag.
5. Holding the module level, guide it into the carrier rails on each side and gently
push it all the way into the port, ensuring that it firmly engages with the
connector.
2 5

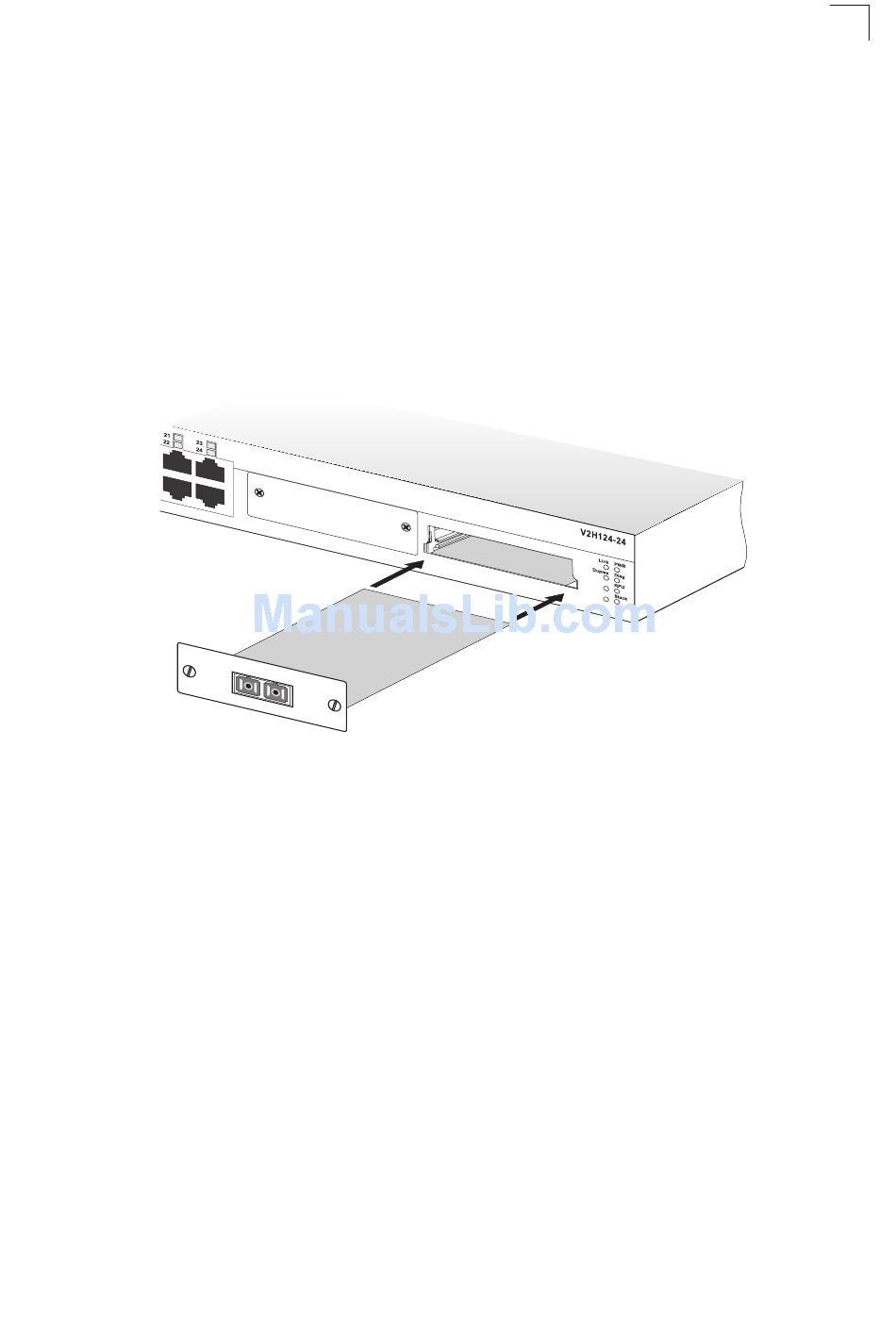

Figure 3-5. Installing an Optional Module

Installing an Optional Module into the Switch
2 6
2 5
2 6
3
3-5
