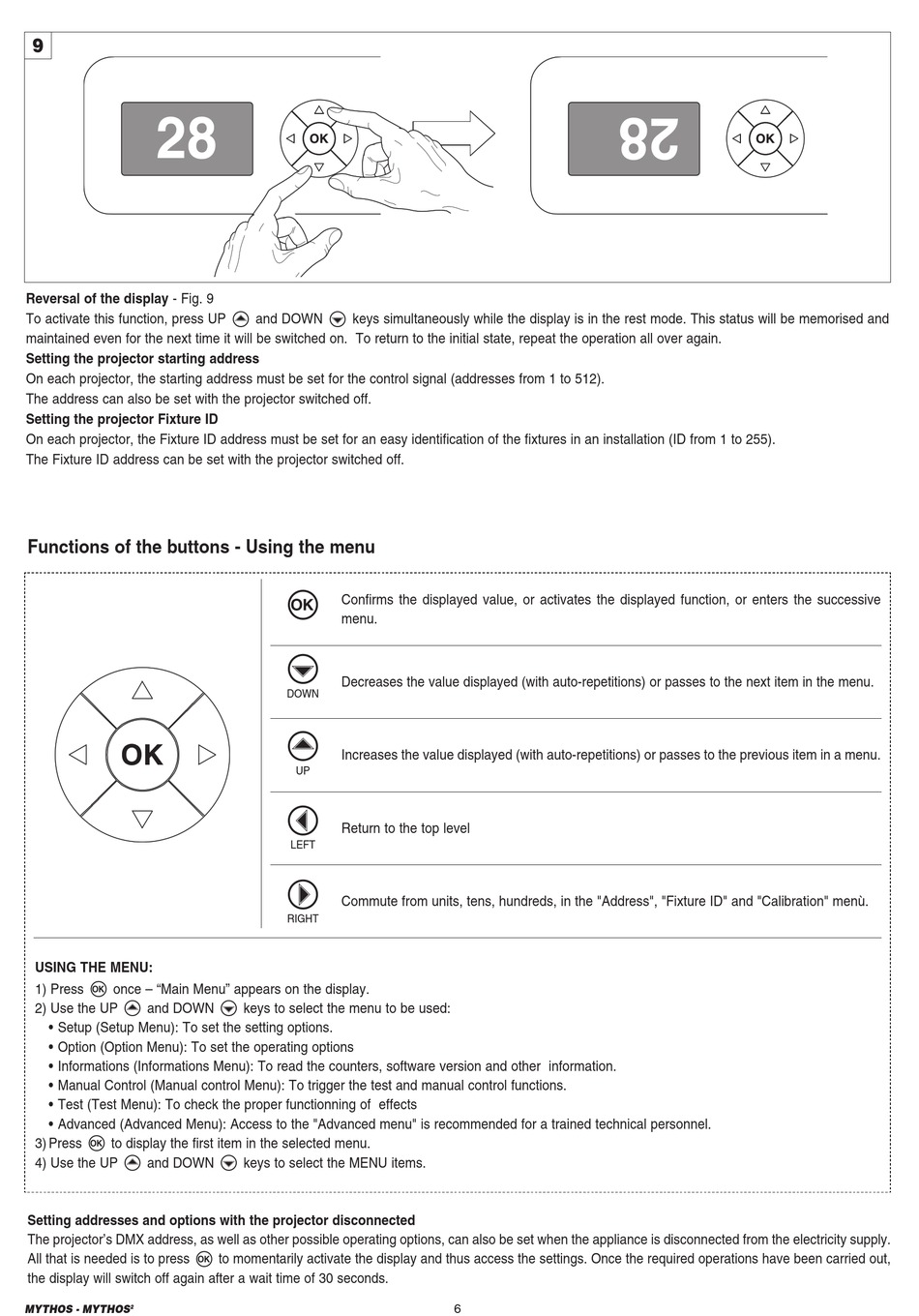

Clay Paky MYTHOS2 Instruction Manual page 6

9
28
Reversal of the display - Fig. 9
To activate this function, press UP
maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.
Setting the projector starting address
On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
The address can also be set with the projector switched off.
Setting the projector Fixture ID
On each projector, the Fixture ID address must be set for an easy identification of the fixtures in an installation (ID from 1 to 255).
The Fixture ID address can be set with the projector switched off.
Functions of the buttons - Using the menu
USING THE MENU:
F
1) Press once – "Main Menu" appears on the display.
B
2) Use the UP and DOWN
• Setup (Setup Menu): To set the setting options.
• Option (Option Menu): To set the operating options
• Informations (Informations Menu): To read the counters, software version and other information.
• Manual Control (Manual control Menu): To trigger the test and manual control functions.
• Test (Test Menu): To check the proper functionning of effects
• Advanced (Advanced Menu): Access to the Advanced menu is recommended for a trained technical personnel.
F
3) Press to display the first item in the selected menu.
B
4) Use the UP and DOWN
Setting addresses and options with the projector disconnected
The projector's DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply.
F
All that is needed is to press
the display will switch off again after a wait time of 30 seconds.
MYTHOS MYTHOS 2
B C
and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and
F
Confirms the displayed value, or activates the displayed function, or enters the successive
menu.
C
Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.
DOWN
B
Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.
UP
D
Return to the top level
LEFT
Commute from units, tens, hundreds, in the Address , Fixture ID and Calibration menù.
RIGHT
C
keys to select the menu to be used:
C
keys to select the MENU items.
to momentarily activate the display and thus access the settings. Once the required operations have been carried out,
6
