Nice ROBO600 Instructions And Warnings For Installation page 13

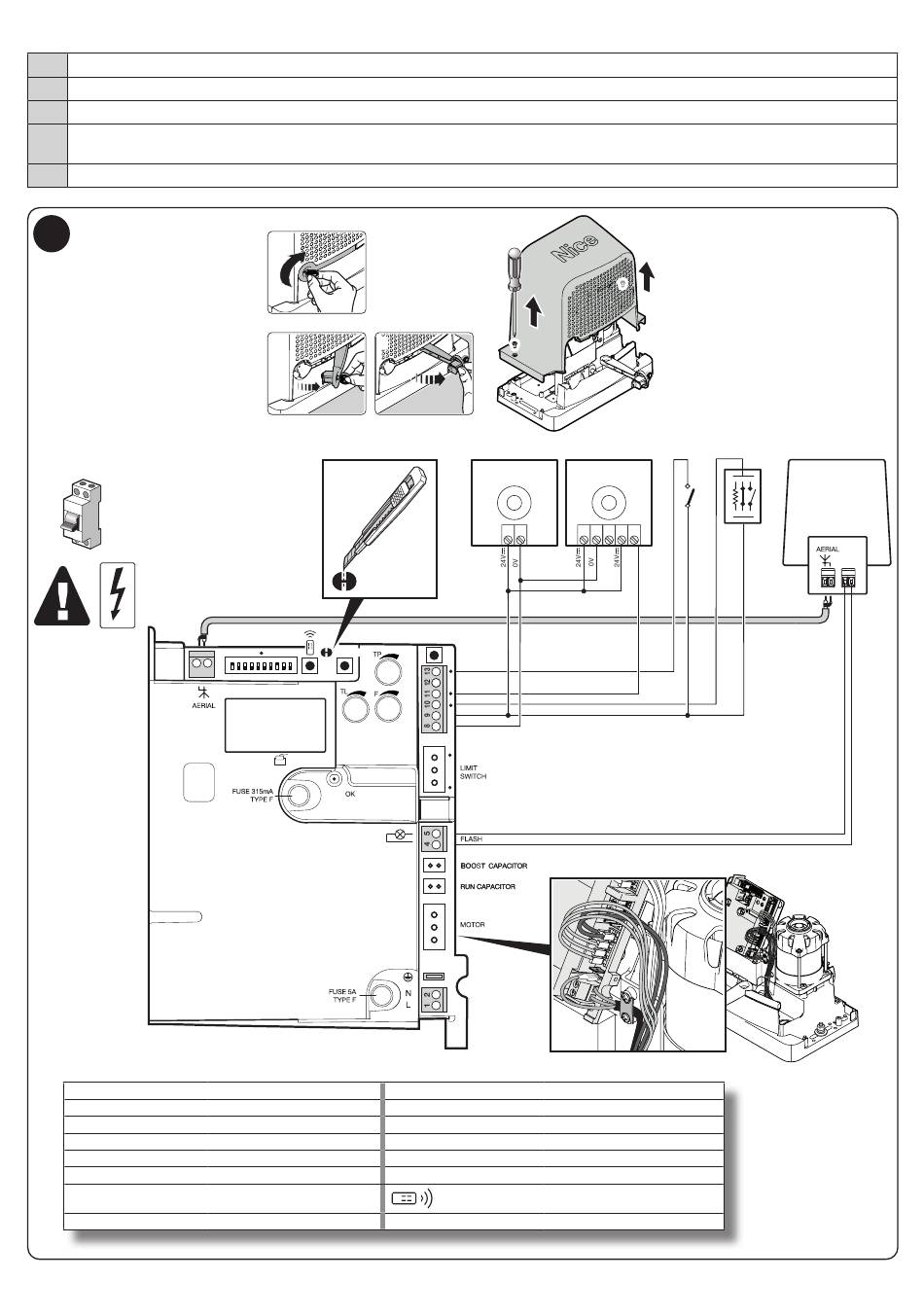

To make the electrical hookup, proceed as described below with reference to fig. 7:
01.
Unlock the gearmotor
02. Open the cover: remove the two screws and lift the casing
03. Run the power cable through the hole (leave 20/30 cm of free cable) and connect it to its terminal clamp
04. Run the cables of the equipment to be installed or already present through the provided hole (leave 20/30 cm of free cable) and connect
them to their terminal clamps (see fig. 7)
05. Perform the desired programming: chapter 7
7
OFF
2
AERIAL
PROGRAM SWITCH
LED RADIO
LED PHOTO
LED SbS
LED OK
SbS
PROGRAM
1
2 3
TLM
LED RADIO R TLM
RADIO PROGRAM
1
1 2 3 4 5 6 7 8 910
PROGRAM SWITCH
IBT4N
LED:
= AERIAL
= MICRO SWITCHES
= RADIO LED
= PHOTOCELL LEDS
= STEP-BY-STEP LED
= OK LED
= STEP BY STEP KEY
= PROGRAMMING KEY
4
TX
1 2
SbS
LED SbS
LED PHOTO
LED STOP
LED FCC
LED FCA
LIMIT SWITCH = LIMIT SWITCH
FLASH = FLASHER
BOOST CAPACITOR = BOOST CAPACITOR
RUN CAPACITOR = RUN CAPACITOR
MOTOR = MOTOR
FUSE = FUSE
= RADIO KEY
RX
NO
NO
1 2 3 4 5
FLASH
NO
230 V
NC
8k2
English – 11
