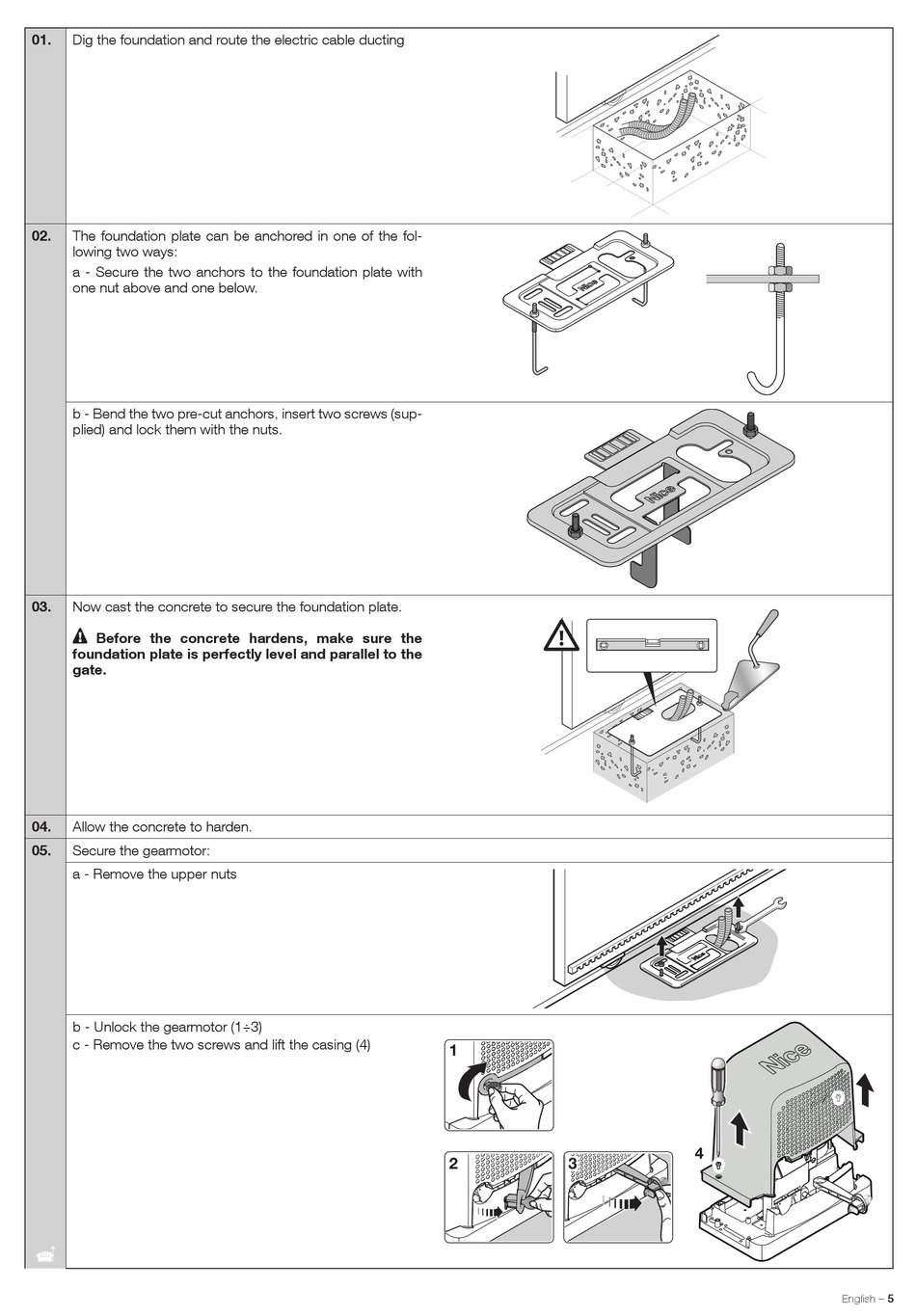

01. Dig the foundation and route the electric cable ducting
02. The foundation plate can be anchored in one of the fol-
lowing two ways:
a - Secure the two anchors to the foundation plate with
one nut above and one below.
b - Bend the two pre-cut anchors, insert two screws (sup-
plied) and lock them with the nuts.
03.
Now cast the concrete to secure the foundation plate.
Before the concrete hardens, make sure the
foundation plate is perfectly level and parallel to the
gate.
04. Allow the concrete to harden.
05.
Secure the gearmotor:
a - Remove the upper nuts
b - Unlock the gearmotor (1÷3)
c - Remove the two screws and lift the casing (4)

1
2 3
4
