2.3 What NOT TO DO

Don't mount the heater without a direct connection to the
combustion fan from an outside air source.
Don't mount the heater without the supplied exhaust fittings
installed and the exhaust directed out from under the vehicle.
Don't mount the heater in a location that restricts access to the
service panels or creates interference with the top mounted
connections.
2.4
2-4

Procedure

After choosing the mounting location for the heater unit:
1. Mount the unit horizontally
2. Secure the heater in place (against the wall, floor or a
mounting platform) using the (2) supplied mounting brackets
that are bolted to the heater (using the existing bolts) on
each side of the bottom tray of the heater. The brackets are
fastened to the mounting surface using 1/4" through bolts or
wood screws with 1" diameter fender washers, lock washers
and nuts. (see fig. 2-2)

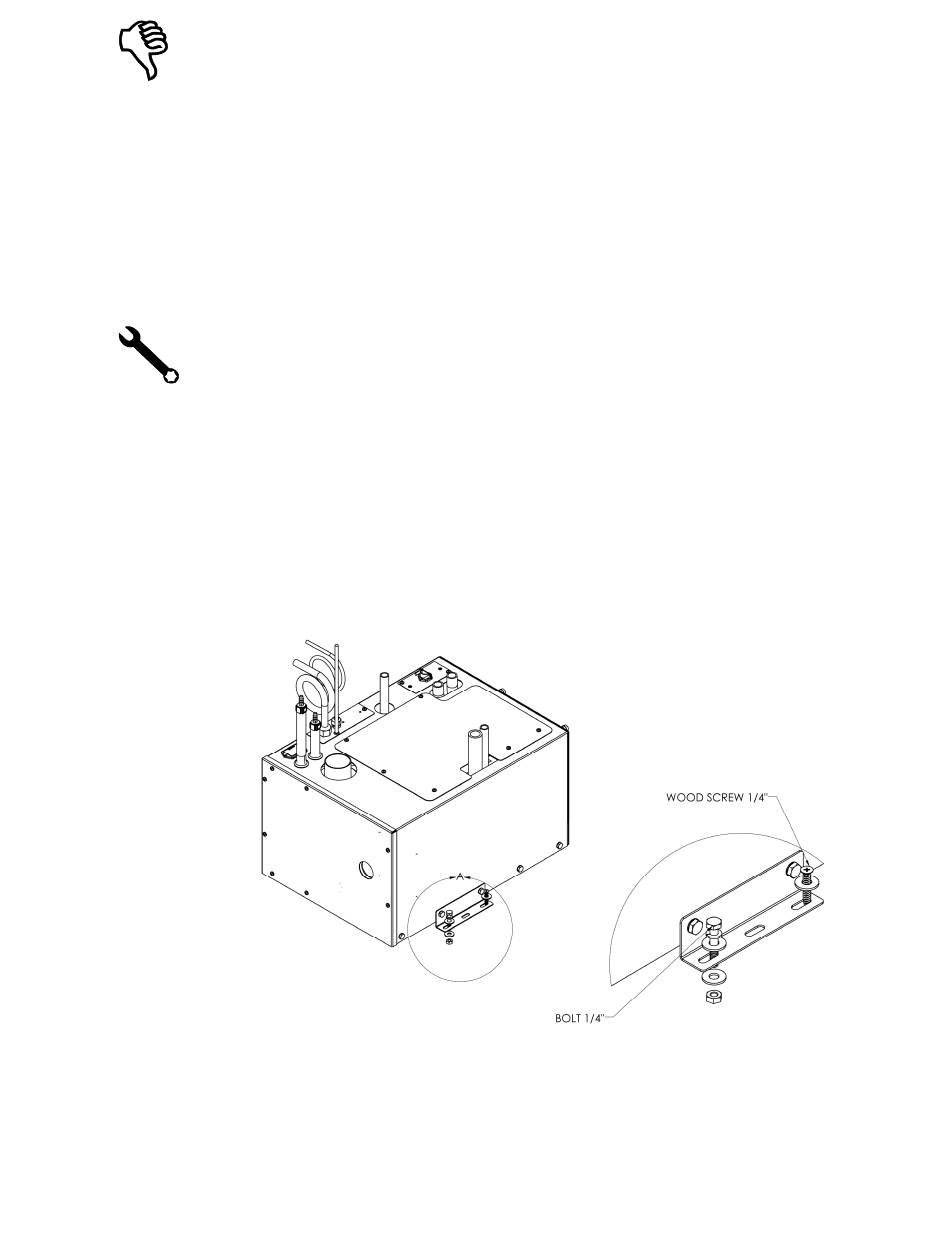

Figure 2-2: Heater Mounting Bracket Configuration
Installation Manual for
Section 2, Mounting the Heater Unit
Oasis
® Zephyr™ HW Heating
