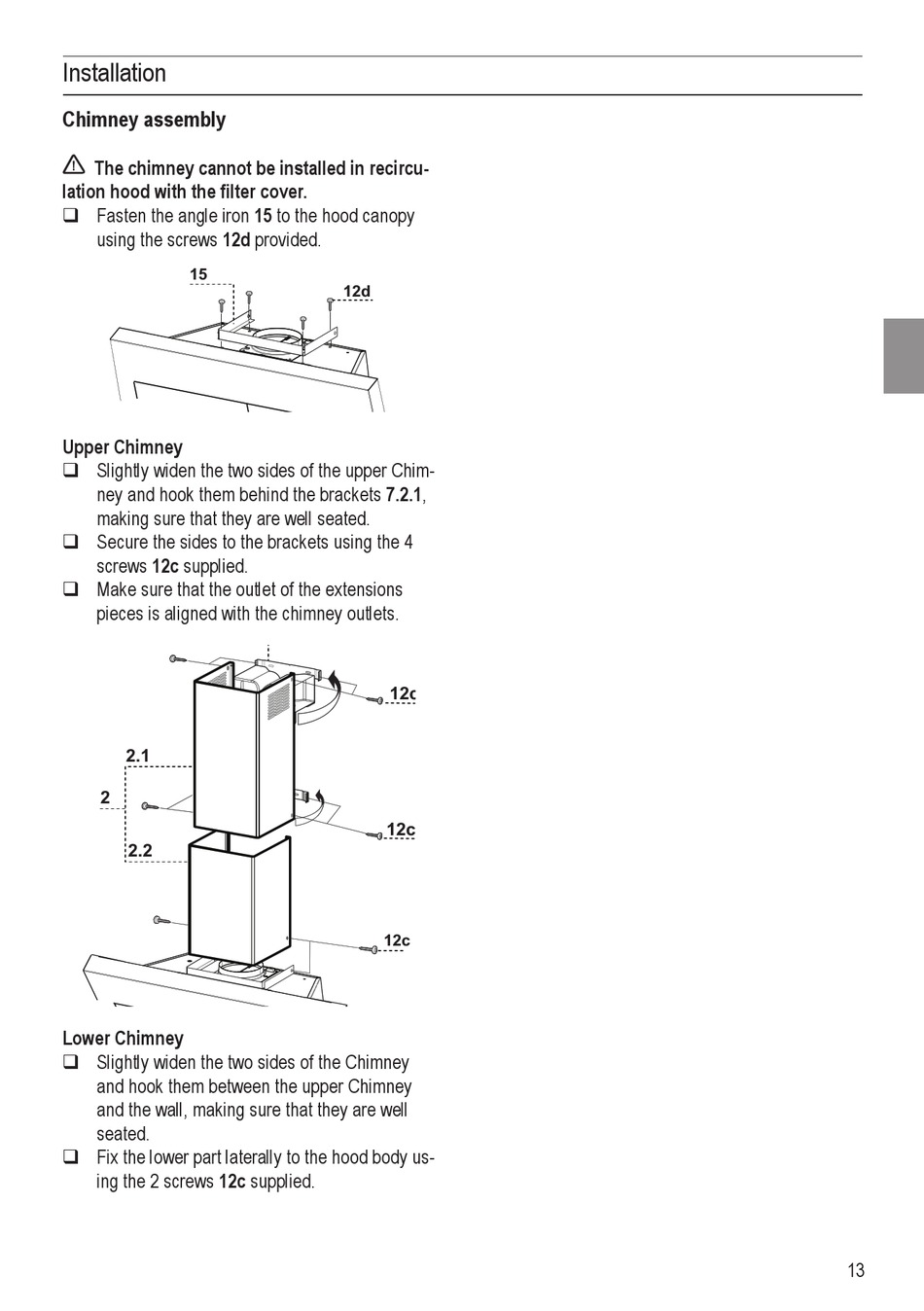

Installation

Chimney assembly

The chimney cannot be installed in recircu-

lation hood with the filter cover.

 Fasten the angle iron 15 to the hood canopy

using the screws 12d provided.

��

Upper Chimney

 Slightly widen the two sides of the upper Chim-

ney and hook them behind the brackets 7.2.1,

making sure that they are well seated.

 Secure the sides to the brackets using the 4

screws 12c supplied.

 Make sure that the outlet of the extensions

��

pieces is aligned with the chimney outlets.

�

��

�

��

Lower Chimney

 Slightly widen the two sides of the Chimney

and hook them between the upper Chimney

and the wall, making sure that they are well

seated.

 Fix the lower part laterally to the hood body us-

ing the 2 screws 12c supplied.

��
