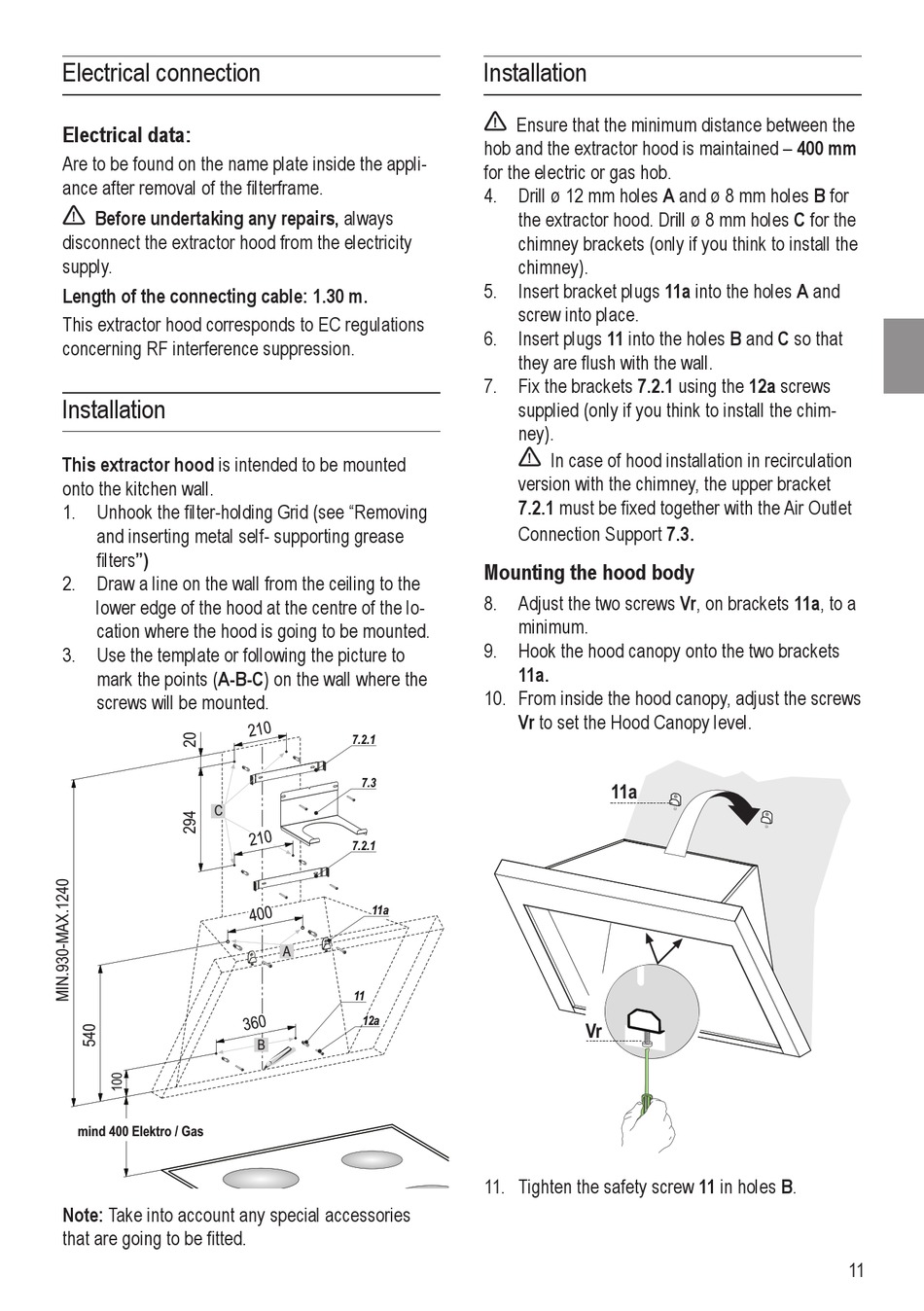

Electrical connection

Electrical data:

Are to be found on the name plate inside the appli-
ance after removal of the filterframe.
Before undertaking any repairs, always
disconnect the extractor hood from the electricity
supply.
Length of the connecting cable: 1.30 m.
This extractor hood corresponds to EC regulations
concerning RF interference suppression.

Installation

This extractor hood is intended to be mounted
onto the kitchen wall.
1. Unhook the filter-holding Grid (see "Removing
and inserting metal self- supporting grease
filters")
2. Draw a line on the wall from the ceiling to the
lower edge of the hood at the centre of the lo-
cation where the hood is going to be mounted.
3. Use the template or following the picture to
mark the points (A-B-C) on the wall where the
screws will be mounted.
�
����������������������
Note: Take into account any special accessories
that are going to be fitted.
�����
���
�����
���
�
��
���
�
Installation
Ensure that the minimum distance between the
hob and the extractor hood is maintained – 400 mm
for the electric or gas hob.
4. Drill ø 12 mm holes A and ø 8 mm holes B for
the extractor hood. Drill ø 8 mm holes C for the
chimney brackets (only if you think to install the
chimney).
5. Insert bracket plugs 11a into the holes A and
screw into place.
6. Insert plugs 11 into the holes B and C so that
they are flush with the wall.
7. Fix the brackets 7.2.1 using the 12a screws
supplied (only if you think to install the chim-
ney).
In case of hood installation in recirculation
version with the chimney, the upper bracket
7.2.1 must be fixed together with the Air Outlet
Connection Support 7.3

Mounting the hood body

8. Adjust the two screws Vr, on brackets 11a, to a
minimum.
9. Hook the hood canopy onto the two brackets
11a.
10. From inside the hood canopy, adjust the screws
Vr to set the Hood Canopy level.
���
��
11. Tighten the safety screw 11 in holes B.
.
11
