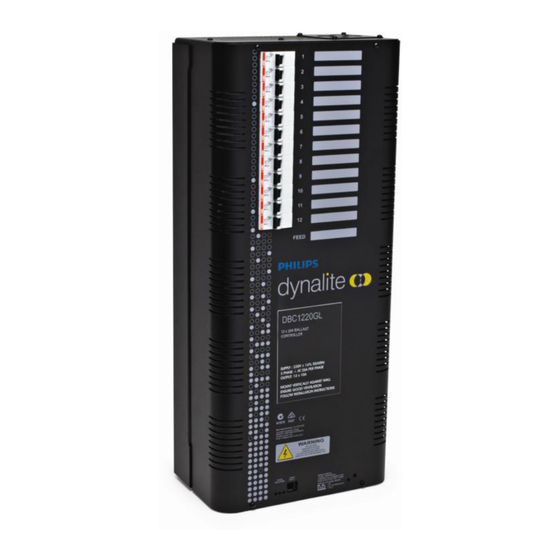

DBC1220GL 12 x 20A HF Ballast Controller Installation Manual contents Warning…………………………………………….. 2 Hardware Controls…………………………….….. Features…………………………………………….. 2 Troubleshooting……………………………………. 8 Speci cation……………………………….………. 8 Important Safeguards…………………………….. Internal View……………………………………….. 3 Mounting…………………………………….……… 4 Supply & Load Cable Connections.……………… Connecting Serial Control Cables………………. Supplied by:... -
Page 2: Warning
important safeguards Warning – This is a class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate Warning measures. TO REDUCE THE RISK OF FIRE OR Read Instructions –... -
Page 3: Internal View
internal view For spare parts, please call your nearest Dynalite Customer Service Centre, and specify DBC1220GL DBC1220GL Installation Manual Rev I.docx... -
Page 4: Mounting
mounting Select A Suitable Location This device is designed for indoor use only. If installing external location, DBC1220GL must be housed in a suitable well-ventilated enclosure. Choose a dry location that will be accessible after the installation is complete. The DBC1220GL should be mounted vertically, the right way up. -
Page 5: Connecting Serial Control Cables
Connecting Serial Control Cables Supply Cables The supply input terminals are located toward the centre of the enclosure and consist of Earth, Neutral and 3 Phases, which will accept up to 35mm cables. The supply cables should have a capacity of 63A per phase, to allow the device to be loaded to its maximum capacity. - Page 6 connecting serial control cables Determine Your Requirements Connect Data Cable in a ‘Daisy Chain’ Serial ports are used to interconnect other dimmers, smart control panels, sensors and AV controllers. Serial port devices can be identified by 4 terminals, labelled: GND, DATA+, DATA-, +VE. Serial Cable Connections There is one RS485 port for DyNet signals, in the form of a RJ12 socket, on the front panel, which is...
-
Page 7: Troubleshooting
Connecting Serial Control Cables AUX Input - This is a dry contact interface that is active low. The dry contact is connected between the AUX and GND terminals on the DyNet connector strip. The function of the AUX input is programmable. Ensure that the cable length between the dry contact and terminal strip is no longer than 2 metres. -
Page 8: Speci Cation
Dynalite Intelligent Light Pty Ltd. Not to be reproduced without permission. Unit 6, 691 Gardeners Road Mascot NSW 2020 Australia Tel: +61 2 8338 9899 Fax: +61 2 8338 9333 E-mail: dynalite.info@philips.com Web: Philips.com/dynalite DBC1220GL Installation Manual Rev I.docx...
