Philips Dynalite DBC1205 Installation Manual

12 x 5a hf ballast controller.
Hide thumbs


Advertisement

DBC1205

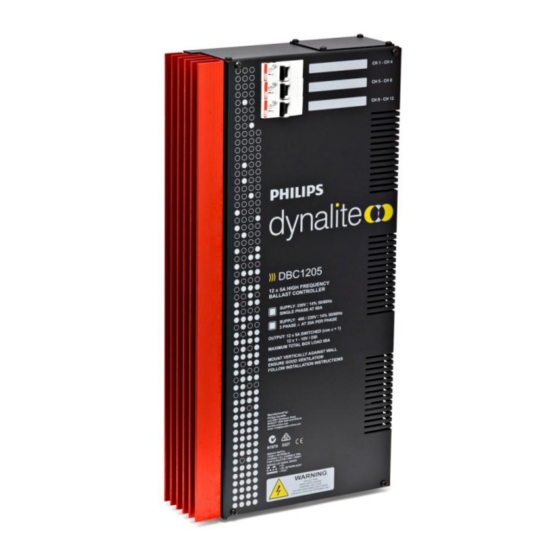

12 x 5A HF Ballast Controller
Installation Manual
Warning..................................................... 2
Features..................................................... 2
Important Safeguards................................... 2
Internal View............................................... 3
Mounting.................................................... 4
Supply & Load Cable Connections................... 5
Connecting Serial Control Cables.................... 6
WMGD Pty Limited trading as Dynalite
Unit 6, 691 Gardeners Road Mascot NSW 2020 Australia
t
f +61 2 8338 9333
+61 8338 9899
Contents
Hardware Controls....................................... 7
Troubleshooting........................................... 8
Specification............................................... 8
dynalite.info@philips.com
ABN 33 097 246 921
Philips.com/dynalite

Advertisement

Table of Contents

   Related Manuals for Philips Dynalite DBC1205

   Summary of Contents for Philips Dynalite DBC1205

  • Page 1: Table Of Contents

    Supply & Load Cable Connections.……………… 5 Connecting Serial Control Cables……………….. 6 WMGD Pty Limited trading as Dynalite Unit 6, 691 Gardeners Road Mascot NSW 2020 Australia     f +61 2 8338 9333 dynalite.info@philips.com ABN 33 097 246 921 Philips.com/dynalite +61 8338 9899...
  • Page 2: Warning

    important safeguards Warning – This is a class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures. Warning Read Instructions – We recommend that you read this ...
  • Page 3: Internal View

    internal view For spare parts, please call your nearest Dynalite Customer Service Centre, and specify DBC1205 DBC1205 Installation Manual Rev J.docx...
  • Page 4: Mounting

    mounting Select A Suitable Location This device is designed for indoor use only. If installing external location, DBC1205 must be housed in a suitable well- ventilated enclosure. Choose a dry location, that will be accessible after the installation is complete. The DBC1205 should be mounted vertically, the right way up.
  • Page 5: Supply & Load Cable Connections

    supply & load cable connections Supply Cables The supply input terminals are located toward the top of the enclosure and consist of Earth, Neutral and 3 Phases, which will accept up to 10mm cables. The supply cables should have a capacity of 20A per phase, to allow the device to be loaded to its maximum capacity.
  • Page 6: Connecting Serial Control Cables

    connecting serial control cables Determine Your Requirements Serial ports are used to interconnect other Connect Data Cable in a ‘Daisy Chain’ dimmers, smart control panels, sensors and AV controllers. Serial port devices can be identified by 4 terminals, labelled: GND, DATA+, DATA–, +VE. Serial Cable Connections There is one RS485 port for DyNet signals, in the form of a RJ12 socket, on the front panel, which is...
  • Page 7: Hardware Controls

    Connecting Serial Control Cables AUX Input - This is a dry contact interface that is active low. The dry contact is connected between the AUX and GND terminals on the DyNet connector strip. The function of the AUX input is programmable. Ensure that the cable length between the dry contact and terminal strip is no longer than 2 metres.
  • Page 8: Specification

    Dynalite Intelligent Light Pty Ltd. Not to be reproduced without permission. Unit 6, 691 Gardeners Road Mascot NSW 2020 Australia Tel: +61 2 8338 9899 Fax: +61 2 8338 9333 E-mail: dynalite.info@philips.com Web: Philips.com/dynalite DBC1205 Installation Manual Rev J.docx...
