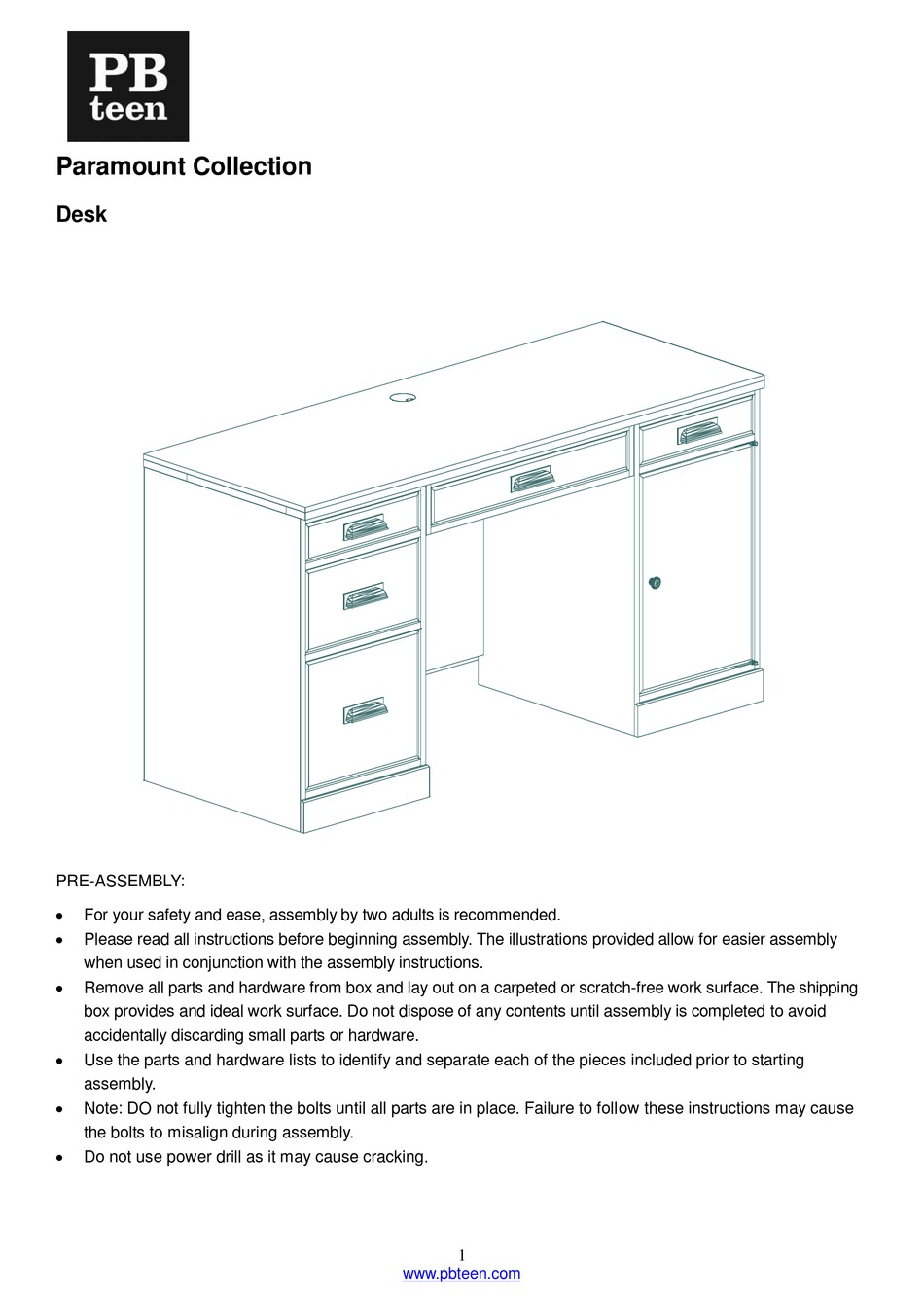

Paramount Collection
Desk
PRE-ASSEMBLY:
For your safety and ease, assembly by two adults is recommended.
Please read all instructions before beginning assembly. The illustrations provided allow for easier assembly
when used in conjunction with the assembly instructions.
Remove all parts and hardware from box and lay out on a carpeted or scratch-free work surface. The shipping
box provides and ideal work surface. Do not dispose of any contents until assembly is completed to avoid
accidentally discarding small parts or hardware.
Use the parts and hardware lists to identify and separate each of the pieces included prior to starting
assembly.
Note: DO not fully tighten the bolts until all parts are in place. Failure to follow these instructions may cause
the bolts to misalign during assembly.
Do not use power drill as it may cause cracking.
1
www.pbteen.com
Advertisement
Related Manuals for PB TEEN Paramount Desk
Summary of Contents for PB TEEN Paramount Desk
- Page 1 Paramount Collection Desk PRE-ASSEMBLY: For your safety and ease, assembly by two adults is recommended. Please read all instructions before beginning assembly. The illustrations provided allow for easier assembly when used in conjunction with the assembly instructions. Remove all parts and hardware from box and lay out on a carpeted or scratch-free work surface.
- Page 2 Carton 1: Carton 2: Carton 3: Carton 4: (C) Desk Top – 1 pc (D) Desk 1 Drawer – 1 pc (E) Desk 3 Drawer – 1 pc (F) Desk Center – 1 pc (H) Wood Grommet – 1 pc (S) Shelf –...
- Page 3 Assembly Instructions: 1. Remove the top drawer boxes from the Desk Center (F), Desk 1 Drawer (D) and Desk 3 Drawer (E) as shown below. 2. Carefully lay down the back panel (G) and align the dowels to the pre-drilled holes on the back of the Desk Center (F).
- Page 4 3. Align the dowels from the Desk Center assembly (F) to the Desk 3 Drawer (E) on the right side, and Desk 1 Drawer (D) on left side. Secure using bolts (N) and tighten with Allen key (L) 4. Secure the back panel (G) to Desk 1 Drawer (D) and Desk 3 Drawer (E) by attaching the bolts (U), lock washer (O), and half moon washer (R).
- Page 5 5. Carefully lay the Desk Top (C) on the desk assembly with the wire hole placed on the back side. Push Desk Top (C) until it wedges into place. Note: Desk Top may need to be adjusted in or out to align bolt holes. 6.
- Page 6 7. Re-install the drawers to the cases that were taken out earlier. Place the wood grommet (H) to close the wire management hole. 8. Determine the desired height for the shelves (S). Insert the shelf supports (K) into the pre-drilled holes located in the desk 1 drawer interior wall.
- Page 7 Paramount Bed and Desk Configuration Assembly Instructions Attaching the Desk to the Bed: 1. With the help of two people, carefully move the desk assembly to its desired location, aligning the holes in the desk assembly to the holes located in the side rail, left or right bed as shown below.
-
Page 8: Base Options
Paramount Collection Components and Configurations Base Options Paramount Desk (I) Paramount 2 Drawer Cabinet (A) Paramount 2 Door Cabinet (B) ( Desk Center, Desk Cabinet, Desk Pedestal ) Configurations 1- Paramount Bed and Drawer (A) and Door Cabinet (B) - Paramount Bed and Drawer (A), Door Cabinet (B) and Desk (I)
