Axiom SW18P User Manual

KEY FEATURES
• High power compact subwoofer
• 18" woofer, 4" voice coil
• Water repellant cone
INTRODUCTION

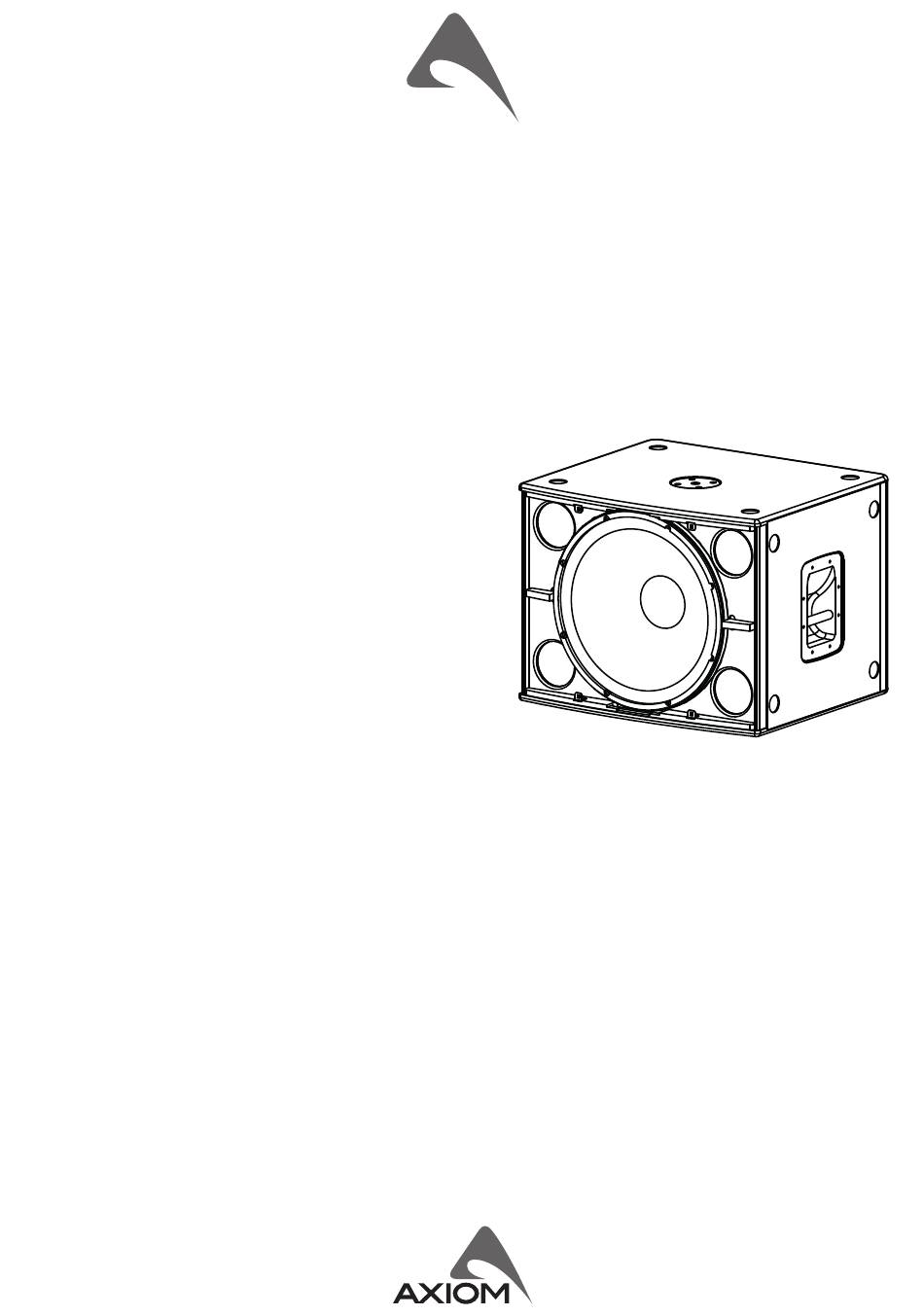

The SW18P is a high-power compact subwoofer that provides extended low
frequency response for specific models in the ED series of high performance
point source loudspeakers. It is suitable for the use in live music venues,
nightclubs, barss houses of worship and for corporate and A/V applications.
The SW18P subwoofer system is equipped with a high power 18" (460mm)
transducer capable of long excursion (up to 30mm peak-to-peak), controlled
by high stiffness Double Silicon Spider as centering suspension that maintains
linear voice coil travel even at high output levels. The motor structure features
high strength (BL²/Re) with optimized symmetry and excursion controlled by
Inner Flux Demodulating Ring. The robust copper 100mm (4") voice coil is
wounded in two different layers both outside and inside the coil support, then
doubling the coil surface exposed to air cooling and consequently improving the
long term thermal capacity of the loudspeaker. Cones are made of very high-
stiffness glass fiber reinforced paper, featuring also invisible water repellent
treatment.
The 15mm phenolic birch plywood cabinet is provided with an M20 pole mount
socket to allow two-way ED series loudspeakers to be mounted above on a
speaker pole. Recessed handles are provided for easy lifting and handing and
the included polyurethane wheels aid transportation, while stacking feet and
matching recesses enable secure ground stacks. Two Neutrik® speakON™ NL4 connectors provide input and link connections.
TECHNICAL SPECIFICATION
Acoustical
System type
Transducer
Frequency response (±3 dB)
Sensitivity (1.41V @ 1m, 2Pi)
Maximum Peak SPL @ 1m
Electrical
Nominal Impedance
Minimum Impedance
Power Handling Continuous*
Power Handling Program
Power Handling Peak
Power Compression
* AES Pink Noise Power
revision 2017-10-10
USER MANUAL
SW18P
passive subwoofer
Bass-reflex
18" (460 mm), 4" (100 mm) VC 8 ohm,
High stiffness, water repellent, glass fibre
reinforced cone
Flux Demodulating Ring VC
Double Centering Spider Suspension
36 Hz – 100 Hz (Processed)
98 dB
132 dB
8 Ω
6.3 Ω @ 36 Hz
1200 W
2400 W
7000 W
@ -10 dB Power (240 W) = 0.7 dB
@ -3 dB Power (1200 W) = 1.5 dB
@ 0 dB Power (2400 W) = 2.2 dB
• Pole mount socket
• Heavy duty wheels
Connectors
Connector Type
Input Wiring
Mechanical
Width
Height
Depth
Depth Including Wheels
Construction
Paint
Wheels
Transport
Net Weight
Neutrik® Speakon® NL4 x 2
Pin 1+/1-; (Pin 2+/2- pass thru)
650 mm (25.6")
500 mm (19.7")
564 mm (22.2")
672 mm (26.5")
15 mm Phenolic Birch Plywood
Black textured paint (or White)
4 heavy-load 80 mm ø
2 handles
40 Kg (88.2 lbs.)
