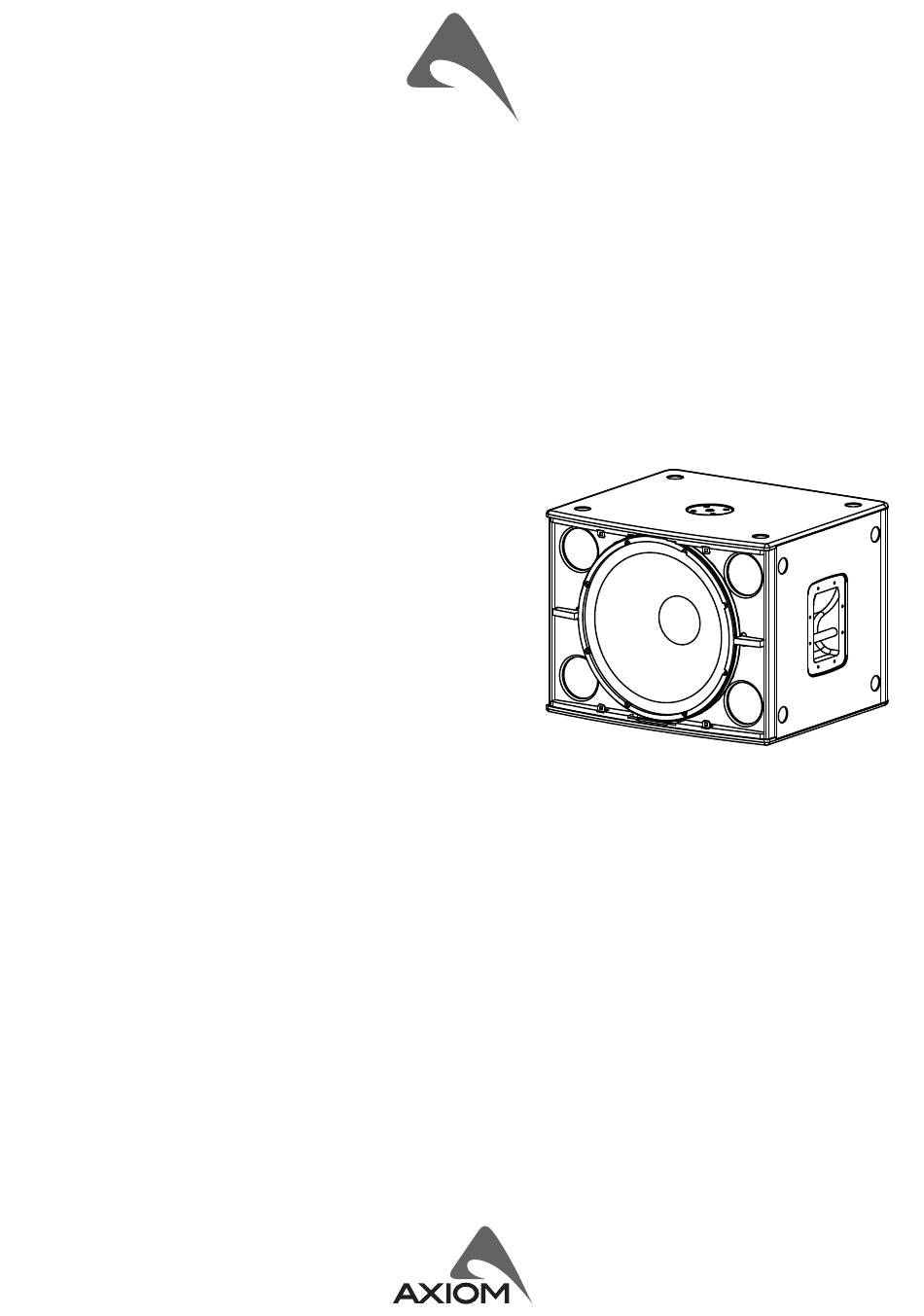

Axiom SW18A User Manual

KEY FEATURES
• High power compact subwoofer
• Small size for a good output-toweight ratio
• Digitally controlled Class D amplifier module with SMPS
INTRODUCTION

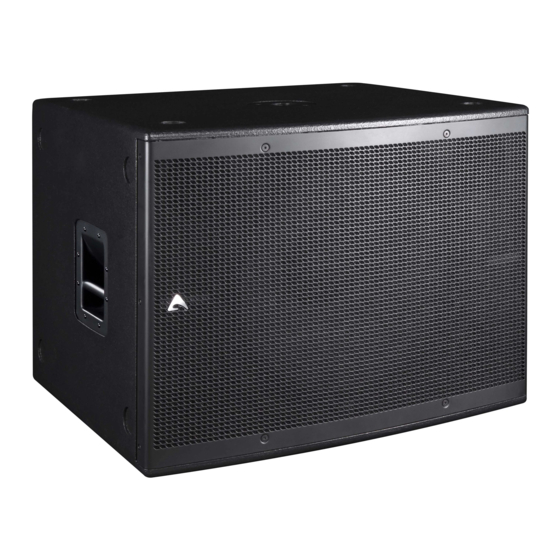

The SW18A is a high power compact subwoofer designed to partner ED series point
source loudspeakers for fixed installations in discotheques, nightclubs and bars, and
live music clubs, and for portable corporate audio-visual applications. It features
a high excursion 4" voice coil, 18" driver equipped with a double centred spider
that maintains linear voice coil travel even at high output levels. The phenolic birch
plywood cabinet is equipped with pole mount socket, stacking feet, flush handles,
and heavy duty wheels to enable easy handling and transportation.
The SW18A subwoofer system is equipped with a high power 18" (460mm)
transducer capable of long excursion (up to 30mm peak-to-peak), controlled by
high stiffness Double Silicon Spider as centering suspension and by heavy duty
surround. The motor structure features high strength (BL²/Re) with optimized
symmetry and excursion controlled by Inner Flux Demodulating Ring. The robust
copper 100mm (4") voice coil is wounded in two different layers both outside and
inside the coil support, then doubling the coil surface exposed to air cooling and
consequently improving the long term thermal capacity of the loudspeaker. Cones
are made of very high-stiffness glass fiber reinforced paper, featuring also invisible
water repellent treatment.
The powered SW18A features an integrated 2000 watt class D amplifier module
that provides convenience and simplicity of connection for portable sound
reinforcement applications, and also for fixed installations in discotheques and
live music clubs. It will deliver punchy bass performance from a very compact cabinet, and thanks to the integral pole mount socket partners well
with any of the ED series of point source loudspeakers in portable corporate audio-visual applications, while its small size enables it to be easily
fitted into tight venue spaces.
TECHNICAL SPECIFICATION
Acoustical
System type
Transducer
Frequency response (-6 dB)
Maximum Peak SPL @ 1m
Electrical
Input Impedance
Input Sensitivity
Signal Processing
Direct access Controls
Remote Controls
Network protocol
* Nominal consumption is measured with pink noise with a crest factor of 12
dB, this can be considered a standard music program.
revision 2017-07-18
USER MANUAL
SW18A
active subwoofer
Bass-reflex
18" (460 mm), 4" (100 mm) VC 8 ohm,
High stiffness, water repellent, glass fibre
reinforced cone
Flux Demodulating Ring VC
Double Centering Spider Suspension
36 Hz – 100 Hz (Processed)
132 dB
20 kΩ balanced
+4 dBu / 1.25 V
CORE processing, 96kHz / 40bit floating
point SHARC DSP, 24 bit AD/DA converters
4 Presets: Standard, InfraSub, Cardioid, User. Paint
Network Termination, GND Link
PRONET control software
CANBUS
• Bass-reflex Direct Radiating Subwoofer
• 96KHz / 40 bit floating point CORE processing with PRONET remote control
Amplifier Type
Output Power
Mains Voltage Range (Vac)
Mains Connector
Consumption*
IN / OUT Connectors
IN / OUT Network Connectors
Mechanical
Width
Height
Depth
Depth Including Wheels
Construction
Wheels
Transport
Net Weight
Class D with Variable Switching Frequency
and SMPS
2000 W
230 V~ ±15% or 115 V~ ±15% 50/60 Hz
PowerCon® (NAC3MPA + NAC3MPB)
700 W (nominal) 1700 W (max)
Neutrik XLR-M / XLR-F
ETHERCON® (NE8FAV)
650 mm (25.6")
500 mm (19.7")
564 mm (22.2")
672 mm (26.5")
15 mm Phenolic Birch Plywood
Black textured paint (or White)
4 heavy-load 80 mm ø
2 handles
42.5 Kg (93.7 lbs.)
