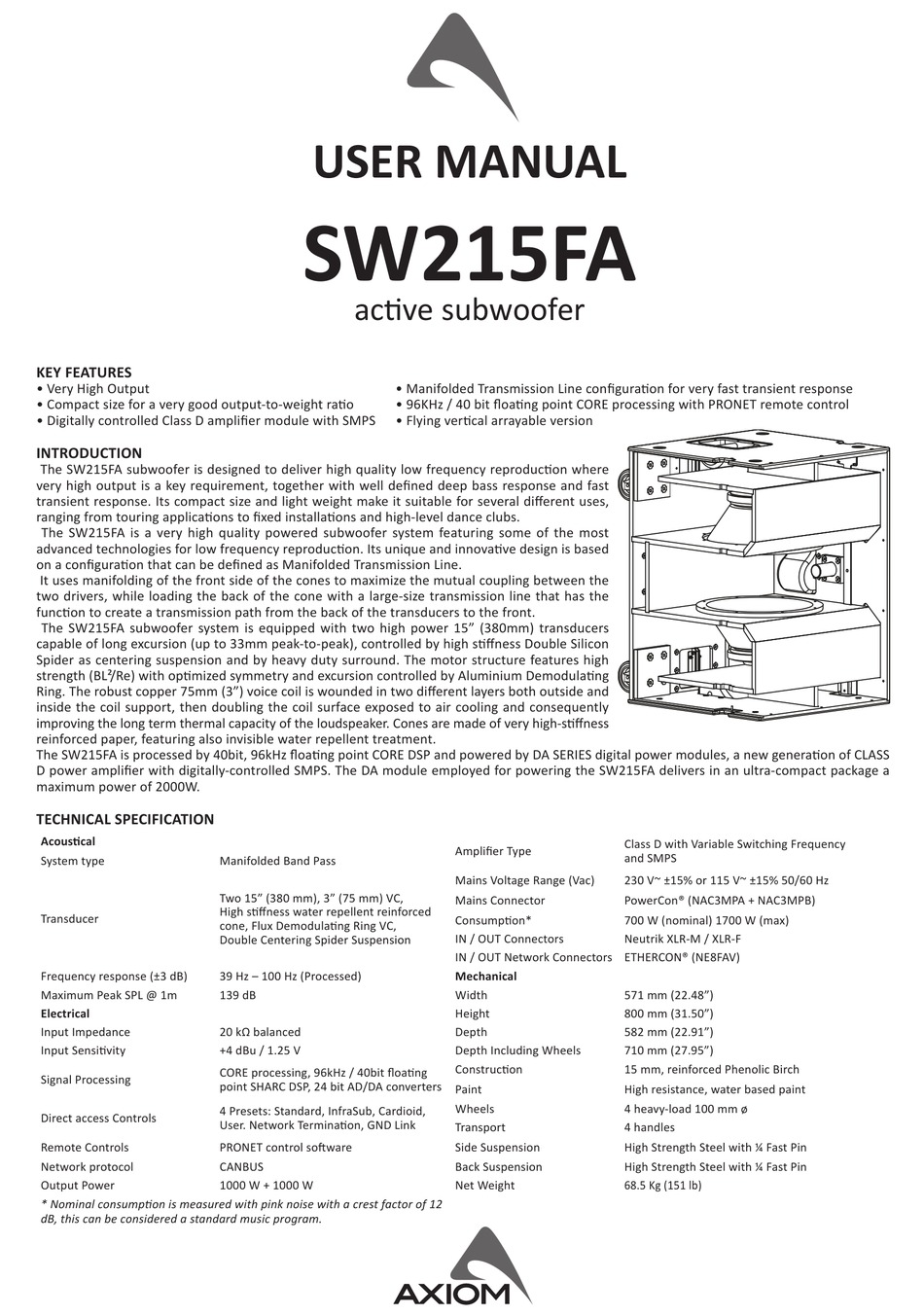

Axiom SW215FA User Manual

KEY FEATURES
• Very High Output
• Compact size for a very good output-to-weight ra o
• Digitally controlled Class D amplifi er module with SMPS
INTRODUCTION
The SW215FA subwoofer is designed to deliver high quality low frequency reproduc on where
very high output is a key requirement, together with well defi ned deep bass response and fast
transient response. Its compact size and light weight make it suitable for several diff erent uses,
ranging from touring applica ons to fi xed installa ons and high-level dance clubs.
The SW215FA is a very high quality powered subwoofer system featuring some of the most
advanced technologies for low frequency reproduc on. Its unique and innova ve design is based
on a confi gura on that can be defi ned as Manifolded Transmission Line.
It uses manifolding of the front side of the cones to maximize the mutual coupling between the
two drivers, while loading the back of the cone with a large-size transmission line that has the
func on to create a transmission path from the back of the transducers to the front.
The SW215FA subwoofer system is equipped with two high power 15" (380mm) transducers
capable of long excursion (up to 33mm peak-to-peak), controlled by high s ff ness Double Silicon
Spider as centering suspension and by heavy duty surround. The motor structure features high
strength (BL²/Re) with op mized symmetry and excursion controlled by Aluminium Demodula ng
Ring. The robust copper 75mm (3") voice coil is wounded in two diff erent layers both outside and
inside the coil support, then doubling the coil surface exposed to air cooling and consequently
improving the long term thermal capacity of the loudspeaker. Cones are made of very high-s ff ness
reinforced paper, featuring also invisible water repellent treatment.
The SW215FA is processed by 40bit, 96kHz fl oa ng point CORE DSP and powered by DA SERIES digital power modules, a new genera on of CLASS
D power amplifi er with digitally-controlled SMPS. The DA module employed for powering the SW215FA delivers in an ultra-compact package a
maximum power of 2000W.
TECHNICAL SPECIFICATION
Acous cal
System type
Transducer
Frequency response (±3 dB)
Maximum Peak SPL @ 1m
Electrical
Input Impedance
Input Sensi vity
Signal Processing
Direct access Controls
Remote Controls
Network protocol
Output Power
* Nominal consump on is measured with pink noise with a crest factor of 12
dB, this can be considered a standard music program.

USER MANUAL

SW215FA
ac ve subwoofer
Manifolded Band Pass
Two 15" (380 mm), 3" (75 mm) VC,
High s ff ness water repellent reinforced
cone, Flux Demodula ng Ring VC,
Double Centering Spider Suspension
39 Hz – 100 Hz (Processed)
139 dB
20 kΩ balanced
+4 dBu / 1.25 V
CORE processing, 96kHz / 40bit fl oa ng
point SHARC DSP, 24 bit AD/DA converters
4 Presets: Standard, InfraSub, Cardioid,
User. Network Termina on, GND Link
PRONET control so ware
CANBUS
1000 W + 1000 W
• Manifolded Transmission Line confi gura on for very fast transient response
• 96KHz / 40 bit fl oa ng point CORE processing with PRONET remote control
• Flying ver cal arrayable version
Amplifi er Type
Mains Voltage Range (Vac)
Mains Connector
Consump on*
IN / OUT Connectors
IN / OUT Network Connectors ETHERCON® (NE8FAV)
Mechanical
Width
Height
Depth
Depth Including Wheels
Construc on
Paint
Wheels
Transport
Side Suspension
Back Suspension
Net Weight
Class D with Variable Switching Frequency
and SMPS
230 V~ ±15% or 115 V~ ±15% 50/60 Hz
PowerCon® (NAC3MPA + NAC3MPB)
700 W (nominal) 1700 W (max)
Neutrik XLR-M / XLR-F
571 mm (22.48")
800 mm (31.50")
582 mm (22.91")
710 mm (27.95")
15 mm, reinforced Phenolic Birch
High resistance, water based paint
4 heavy-load 100 mm ø
4 handles
High Strength Steel with ¼ Fast Pin
High Strength Steel with ¼ Fast Pin
68.5 Kg (151 lb)
