KEY FEATURES
• Band-Pass/Bass-Reflex Active Subwoofer
• Single 21" Neodymium woofer with 4" ISV voice coil
• Water repellent cone
• Very compact enclosure
INTRODUCTION

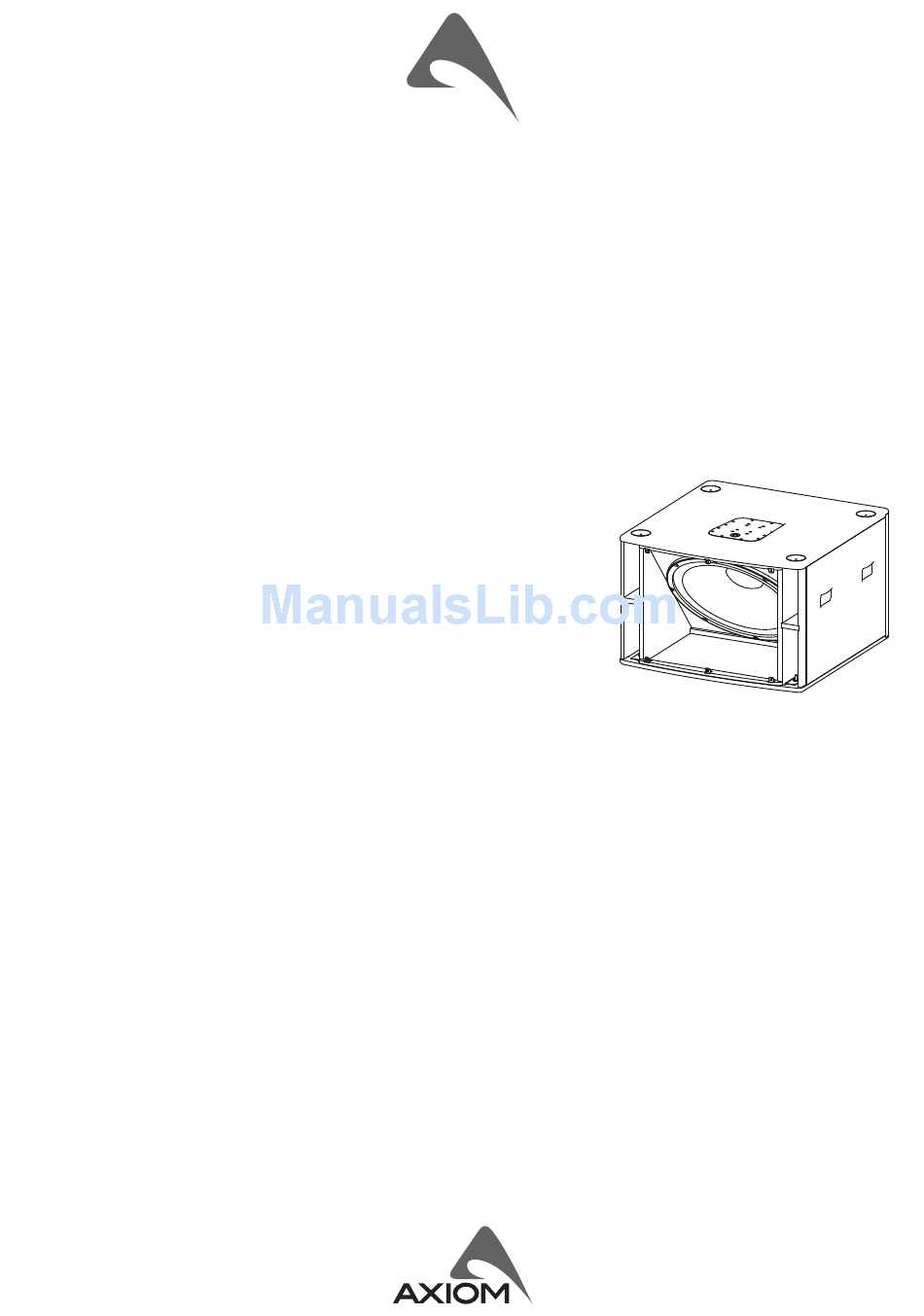

The SW2100A is a very compact Band-Pass/Bass-Reflex subwoofer providing high output and
extended low frequency response. It is equipped with a single 21" neodymium transducer with
a 4" ISV voice coil, large displacement suspension system, and composite reinforced, water
repellent cone, able to provide clean and undistorted LF reproduction at very high SPL.
The loudspeaker is designed with a unique motor featuring a high grade neodymium magnet
assembly in a structure optimized for thermal and magnetic efficiency. It features include a large
displacement suspension system which, in conjunction with a composite reinforced, straight
ribbed cone and the proprietary Double Silicon Spider (DSS) technology, allows an ultra-linear
piston action and provides full mechanical control across the entire working range. The 100mm (4
in) state-of-the-art voice-coil utilizing Interleaved Sandwich Voice coil (ISV) technology, provides
high levels of thermal stability and durability. The ISV technology achieves a balanced linear
motor unit exerting an exceptionally high force factor.
The DA module employed for powering the SW2100A features also PFC (Power Factor Correction),
a technology able to guarantee always the highest level of power regardless of any eventual
fluctuations of the power supply. It delivers in an ultra-compact package 2000W from each of its two channels: one channel is used to drive the
21" woofer, the other, through an output SPEAKON connector, can power AX12C line array modules.
The SW2100A has been mainly designed to provide the optimal low frequency extension to the AX12C line array module providing 2000W to
power up to four AX12C line array modules. The built-in CORE DSP provides 4 presets for different combinations: 2, 4 or 1 columns plus 1 user
preset (additional presets for processing other AXIOM speakers are also available).
The SW2100A features on the top panel a special metal plate and it comes with a dedicated aluminium bracket for fast coupling with the AX12C's
rigging hardware. Using this simple system, up to two AX12C modules can be easily installed on an SW2100A.
The standard system, composed of four AX12C line array modules and two SW2100A subwoofers, features 8000W of total power and a line-array
dispersion pattern, making it the perfect solution for high-performance portable sound reinforcement applications.
TECHNICAL SPECIFICATION
SYSTEM
System's Acoustic Principle
Band-pass / bass-reflex
Frequency Response (-6dB)
34 Hz - 180 Hz (Processed)
Maximum (peak) SPL
132dB SPL @ 1m
TRANSDUCER
Type
21" Neodymium magnet, 4" (100mm) VC
Cone
High stiffness, water repellent
Voice Coil Type
Interleaved Sandwich Voice coil (ISV)
Suspension
Triple-roll
ELECTRICAL
Input Impedance
20 kΩ balanced, 10 kΩ unbalanced
Input Sensitivity
+4dBu / 1.25 V
CORE processing, 96kHz / 40bit floating point
Signal Processing
SHARC DSP, 24 bit AD/DA converters
4 Presets (2 x AX12C / 4 x AX12C / 1 x AX12C /
Direct access Controls
User), Network Termination, GND Link
Remote Controls
PRONET control software
Network protocol
CANBUS
rev03_2017-06
USER MANUAL
SW2100A
active subwoofer
• Very good output-to-weight ratio
• 4000 Watt Class D amplifier with PFC Switch Mode Power Supply
• 96KHz / 40 bit floating point CORE processing with PRONET remote control
• Optimized presets for use in combination with AX12C line array modules
Amplifier Type
Output Power
Mains Voltage Range (Vac)
Consumption*
IN / OUT Connectors
IN / OUT Network Connectors
Mains Input and Link Connector
Cooling
ENCLOSURE & CONSTRUCTION
Dimensions (W x H x D)
Depth Including Wheels
Enclosure Material
Paint
Transport
Net Weight
* Nominal consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program.
Class D with SMPS and PFC, Variable Switching
Frequency
2000W + 2000W (Out1: SW2100A - Out2: AX12C or
other AXIOM loudspeakers)
90 - 260V 50/60Hz
600 W (nominal) / 1800 W (max)
Neutrik XLR-M / XLR-F
ETHERCON®(NE8FAV)
PowerCon® TRUE 1 (NAC3PX)
Variable speed DC fan
760 mm (29.9") x 511 mm (20.1") x 770 mm (30.3")
881 mm (34.6")
18mm, reinforced phenolic birch
High resistance, water based paint
4 x heavy duty 100mm (4") castors, 4 handles
61 Kg (134.2 lbs.) without wheels
Advertisement
Table of Contents
Related Manuals for Axiom SW2100A
Summary of Contents for Axiom SW2100A
-
Page 1: User Manual
(additional presets for processing other AXIOM speakers are also available). The SW2100A features on the top panel a special metal plate and it comes with a dedicated aluminium bracket for fast coupling with the AX12C’s rigging hardware. Using this simple system, up to two AX12C modules can be easily installed on an SW2100A. -
Page 2: Mechanical Drawing
Allen Screws IMPORTANT 4 x M5 Flat Head To install the AX12C bracket on the SW2100A Allen use the screws already present on the fixing plate, Screws as shown in the figure. When removing the AX12C bracket from the SW2100A put back the screws in the threaded holes as shown in the figure, in order to avoid air leakage. - Page 3 TERMINATE - In a PRONET network the last loudspeaker device must be terminated (with an inner load resistance) especially in a long run cabling: press this switch if you want to terminate the unit. POWER OUT - SW2100A is able to power the passive AX12C column array module (or other loudspeakers) through the available power output on the back panel.
-
Page 4: Power Amplifiers
The superior sound quality can be compared with top-of-the-range AB-class analog systems, while the DA modules feature a higher dynamics, very compact size and light weight and efficiency above 90%. The DA module employed for powering the SW2100A features also PFC (Power Factor Correction), a technology able to guarantee always the highest level of power regardless of any eventual fluctuations of the power supply. - Page 5 • The ground where the SW2100A is placed needs to be absolutely stable and compact. • Adjust the feet so to lie the SW2100A perfectly horizontal to ground. Use a spirit level to obtain the best result. • Always secure ground stacked setups against movement and possible tipping over.
- Page 6 TWO AX12C STACKED ON A SW2100A WARNING: DO NOT STACK MORE THAN TWO AX12C UNITS. IMPORTANT: TIGHTEN TIGHT THE THREADED KNOB ON BOTH SIDES TO FASTEN THE BRACKETS TOGETHER, SO TO AVOID UNWANTED NOISES WHEN THE SYSTEM PLAYS AT HIGH LEVELS...
- Page 7 SW2100A + AX12C connection examples SW2100A + 1 x AX12C 4 x 4mm² speaker cable ESO2500LU2 - lenght 2m ESO2500LU15 - lenght 15m ESO2500LU5 - lenght 5m ESO2500LU20 - lenght 20m ESO2500LU10 - lenght 10m ESO2500LU25 - lenght 25m SW2100A + 2 x AX12C ESO2500LU05 - lenght 0,25m 4 x 4mm²...
- Page 8 SW2100A + 4 x AX12C 1+/1- ESO2500LU05 - lenght 0,25m 1+/1- 1+/1- ESO2500LU05 - lenght 0,25m 1+/1- 1+/1- ESO2500LU05 - lenght 0,25m 1+/1- 4 x 4mm² speaker cable 1+/1- ESO2500LU2 - lenght 2m 1+/1- ESO2500LU5 - lenght 5m ESO2500LU10 - lenght 10m...
- Page 9 2 x SW2100A + 4 x AX12C 1+/1- 1+/1- 1+/1- 1+/1- 1+/1- 2+/2- 1+/1- 1+/1- 1+/1- 1+/1- 2+/2- 1+/1- 4 x 4mm² speaker cable ESO2500LU2 - lenght 2m 1+/1- 2+/2- ESO2500LU5 - lenght 5m ESO2500LU10 - lenght 10m ESO2500LU15 - lenght 15m...
-
Page 10: Limited Warranty
LIMITED WARRANTY Proel warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase. If any defects are found in the materials or workmanship or if the product fails to function properly during the applicable warranty period, the owner should inform about these defects the dealer or the distributor, providing receipt or invoice of date of purchase and defect detailed description.
