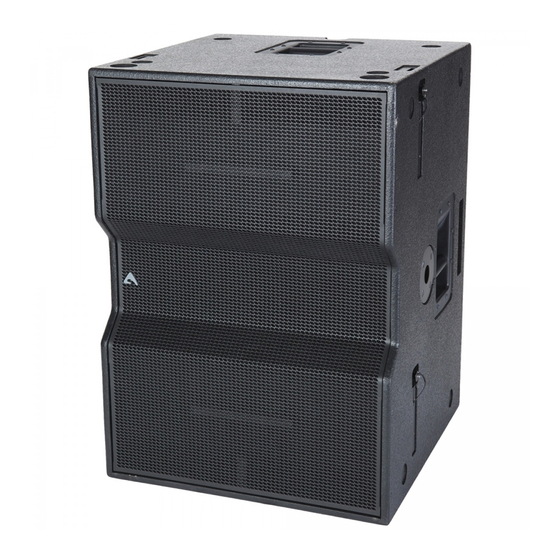

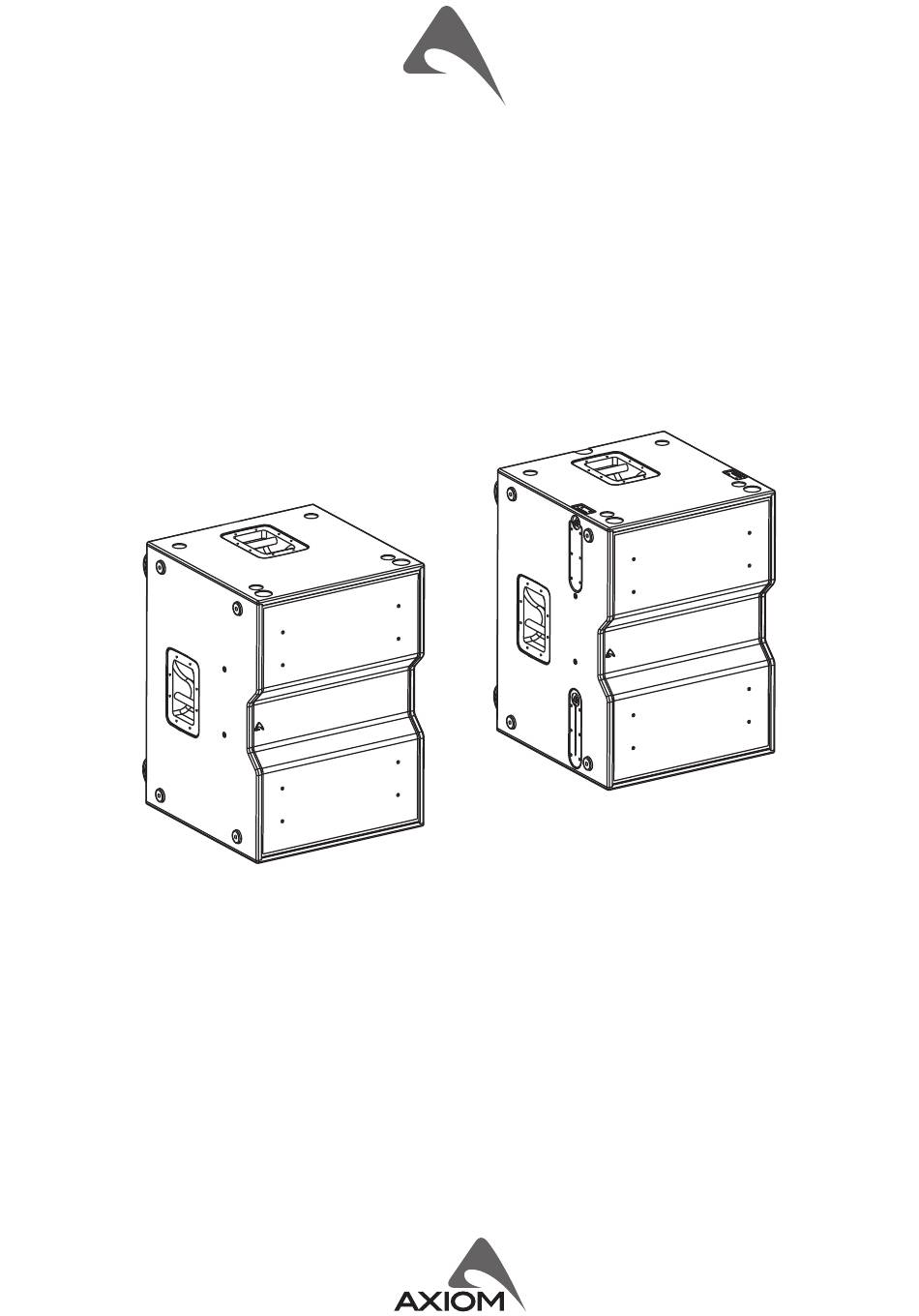

- Page 1 SW215P - SW215FP passive subwoofer USER MANUAL revision 2023-09-11...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 DECLARATION OF CONFORMITY The product is in compliance with: RoHS Directive 2011/65/EU and 2015/863/EU, WEEE Directive 2012/19/EU. The product is in compliance with: S.I. 2012/3032 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 LIMITED WARRANTY Proel warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase.
-
Page 4: Table Of Contents
OPTIONAL ACCESSORIES (SW215P) ... . 5 SPARE PARTS (SW215P) ..... 5 MECHANICAL DRAWING (SW215FP) . -
Page 5: Mechanical Drawing (Sw215P)
MECHANICAL DRAWING (SW215P) 58.2 cm 71.0 cm 57.1 cm 22.91" 27.95" 22.48" P = M20 insert for DHSS10M20 pole adaptor for conventional SUB-SAT system. OPTIONAL ACCESSORIES (SW215P) NL4FX Neutrik Speakon® PLUG PC260 2 in 6 out digital loudspeaker processor USB2CANDV2... -
Page 6: Mechanical Drawing (Sw215Fp)
Rain cover for input sockets DHSS10M20 Sub-Speaker ø35mm Pole with M20 screw KPTSW215 Fly bar for Axiom AX2065 and SW215 Loudspeakers AXFEETKIT Kit made of 6pcs BOARDACF01 foot see http://www.axiomproaudio.com/ for detailed description and other available accessories. SPARE PARTS (SW215FP) -
Page 7: Input
LINK Power output in parallel with the INPUT socket for connecting the unit to another speaker. The number of SW215P/FP cabinets that can be connected in parallel depends on the amplifier load capacity. WARNING! CAREFULLY READ THE FOLLOWING INSTRUCTIONS AND CONDITION OF USE: •... -
Page 8: Prediction Software: Ease Focus 3
NOTE: in this figure is shown the result of an suspended array with each box delayed of 2mS progressively, this method point downward the wave propragation to avoid ceiling reflection at 80Hz octave. NOTE: With SW215P/FP (passive version) use only the “Standard Preset” input configuration for all boxes in the array to obtain a correct EASE 3 prediction. -
Page 9: Aiming And Suspending Instructions (Sw215Fp Only)
AIMING and SUSPENDING INSTRUCTIONS (SW215FP only) Suspending the sub-woofers has different advantages and some inconvenient. One inconvenient is that as the sub-woofers don’t couple with the ground and indoor usage can have different behaviours depending on ceiling and walls. The advantages are that the space underneath the stage can be free from subs, the coupling between sub and sat is better and, using a column of 4-6 sub boxes, the basses can be steered more deeply into the audience with a more uniform distribution of the low frequencies. - Page 10 Follow the sequence in the figure for fixing the fly bar at the first box. Usually this is the first step before lifting up the system. Be careful to insert properly all the locking pins (1)(2) and (3)(4) then the shackle (5) in the right holes as specified by the aiming software.
- Page 11 KPTSW215 - SW215FP ARRAY ASSEMBLING SEQUENCE MAX: KPTSW215 6x SW215FP use the pin to set the front linking bar: rest, sat, or sub for sub-sub linking use the longer positions...
- Page 12 KPTSW215 - SW215FP - AX2065P ASSEMBLING SEQUENCE MAX: KPTSW215 2x SW215FP 8x AX2065P use the pin to set the front linking bar: rest, sat, or sub for sub-sat linking use the shorter positions PROEL S.p.A. (World Headquarters) - Via alla Ruenia 37/43 - 64027 Sant’Omero (Te) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.axiomproaudio.com...
