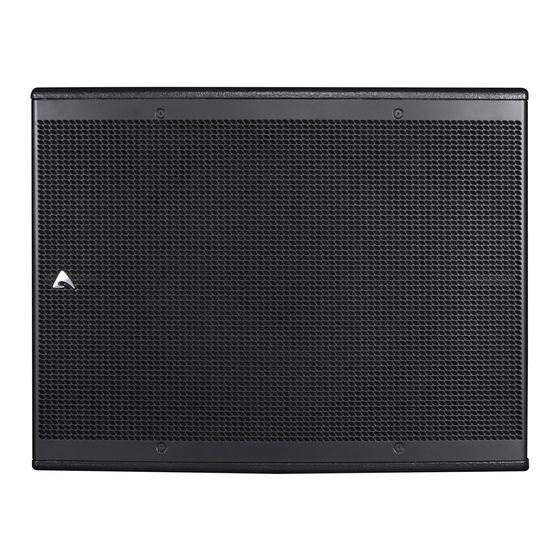

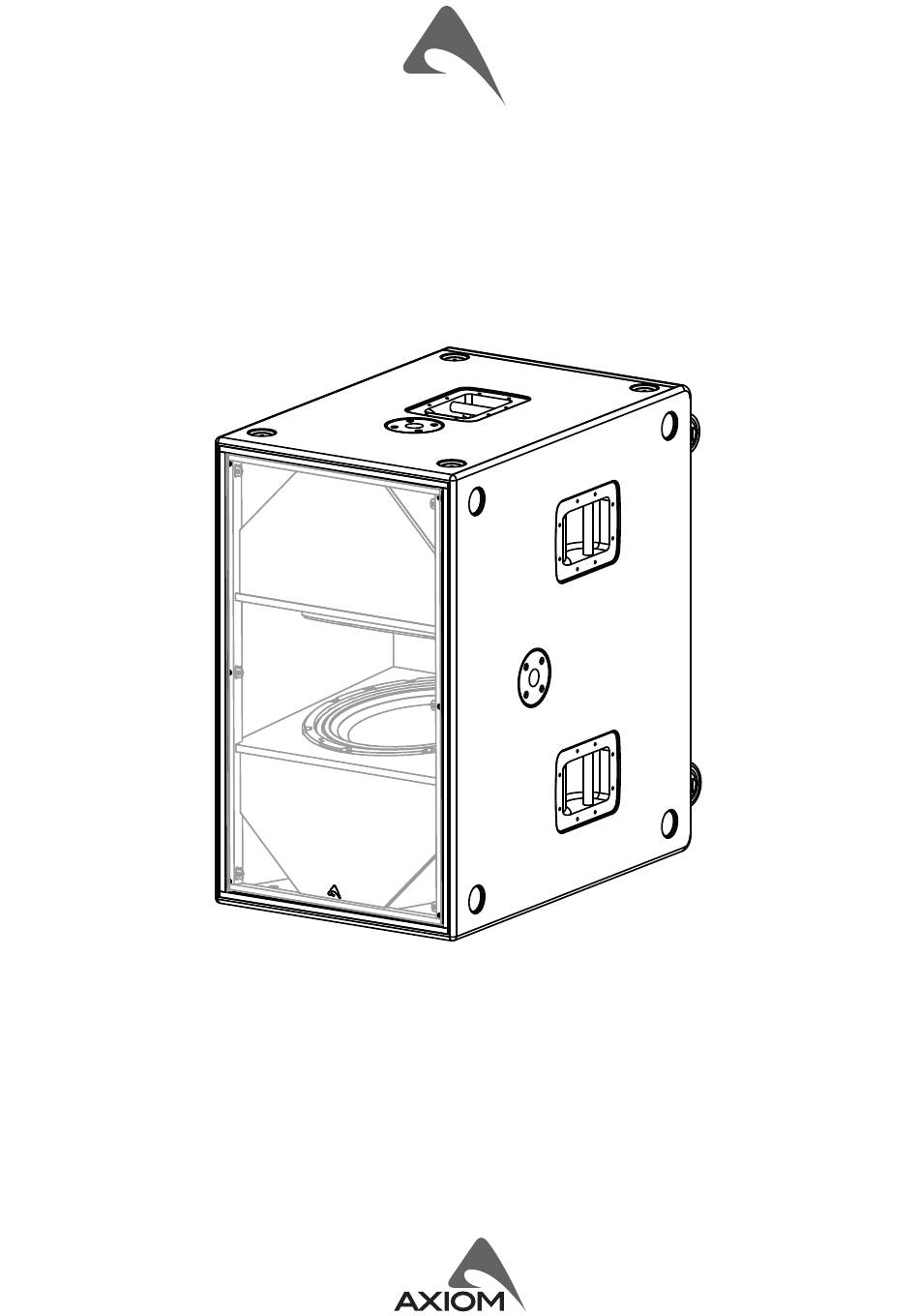

- Page 1 SW1800AV2 active subwoofer USER MANUAL revision 2023-09-10...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
-
Page 4: Table Of Contents
The SW1800AV2 is processed by 40bit floating point CORE2 DSP and powered by a high efficiency CLASS D amplifier module with a newly designed power supply equipped with PFC, which reduces the power consumption while enhancing reliability and consistency in all operating conditions. -
Page 5: Mechanical Drawing
MECHANICAL DRAWING 57 cm 88 cm 22.4" 34.6" 100.8 cm 39.7" P = M20 insert for DHSS10M20 pole adaptor for conven�onal SUB-SAT system. OPTIONAL ACCESSORIES NAC3FX-W-TOP-L Neutrik Powercon® TRUE1 (for power in)* DHSS10M20 Sub-Speaker ø35mm 1-1.7m Pole with Handle and M20 screw NAC3MX-W-TOP-L Neutrik Powercon®... -
Page 6: I/O And Control Operations
MAINS~ OUT Powercon® NAC3PX power outlet connector. This is connected in parallel with the MAINS~ IN. With 230V~ we suggest to link a maximum of 4 SW1800AV2 loudspeakers, with 120V~ we suggest to link a max of 2 SW1800AV2 loudspeakers. -
Page 7: Preset Button
STANDARD. If you want to modify it, you have to connect the unit to a PC, edit the parameters with PRONET AX software and save the PRESET into USER MEMORY no. 1. SW1800A - PRESET RESPONSE INFRA STANDARD WARNING! SW1800AV2 is NOT designed to be suspended, use it in ground stack only. -
Page 8: Pronet Ax
Download the PRONET AX app registering on MY AXIOM at the website at https://www.axiomproaudio.com/. The AXIOM active loudspeaker devices can be connected in a network and controlled by the PRONET AX software, for the network connection the USB2CAND (with 2-port) converter optional accessory is needed. -
Page 9: Prediction Software: Ease Focus 3
AFMG Technologies GmbH. It is based on the EASE GLL loudspeaker data file required for its use. The GLL file contains the data that defines the Line Array with regard to its possible configurations as well as to its geometrical and acoustical properties. Download the EASE Focus 3 app from the AXIOM website at https://www.axiomproaudio.com/ clicking on downloads section of the product. -
Page 10: Cardioid Set Up
CARDIOID SET UP The cardioid preset must be used in a sub array of three SW1800AV2. Two box must be oriented towards the audience and one must be turned in the opposite direction (typically the box in the centre of the array). The bottom and the top boxes must have the STANDARD PRESET, the box in the middle must have the CARDIOID PRESET. - Page 11 NOTES: When placing multiple horizontal cardioid arrays keep a distance between them of at least 80 cm (2.6 ft) in order not to maximize the combined radiation of whole arrays. bass cancellation direction stage wall or other big ostacle 80 cm min. 2.7 ft min.
- Page 12 PROEL S.p.A. (World Headquarters) - Via alla Ruenia 37/43 - 64027 Sant’Omero (Te) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.axiomproaudio.com...
