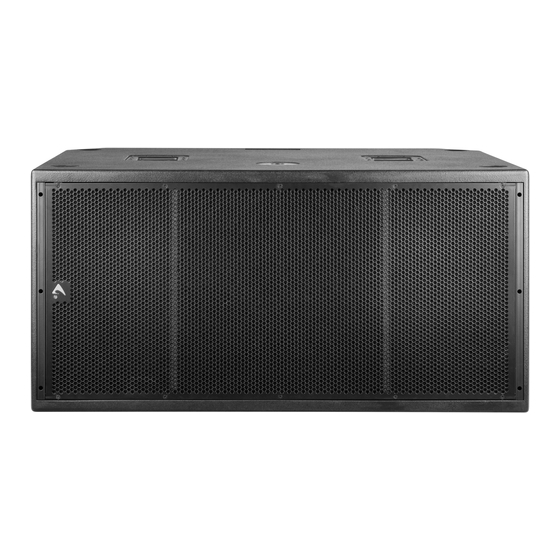

Axiom SW218XAV2 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SW218XAV2
active subwoofer
USER MANUAL
revision 2023-09-12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW218XAV2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axiom SW218XAV2

Summary of Contents for Axiom SW218XAV2

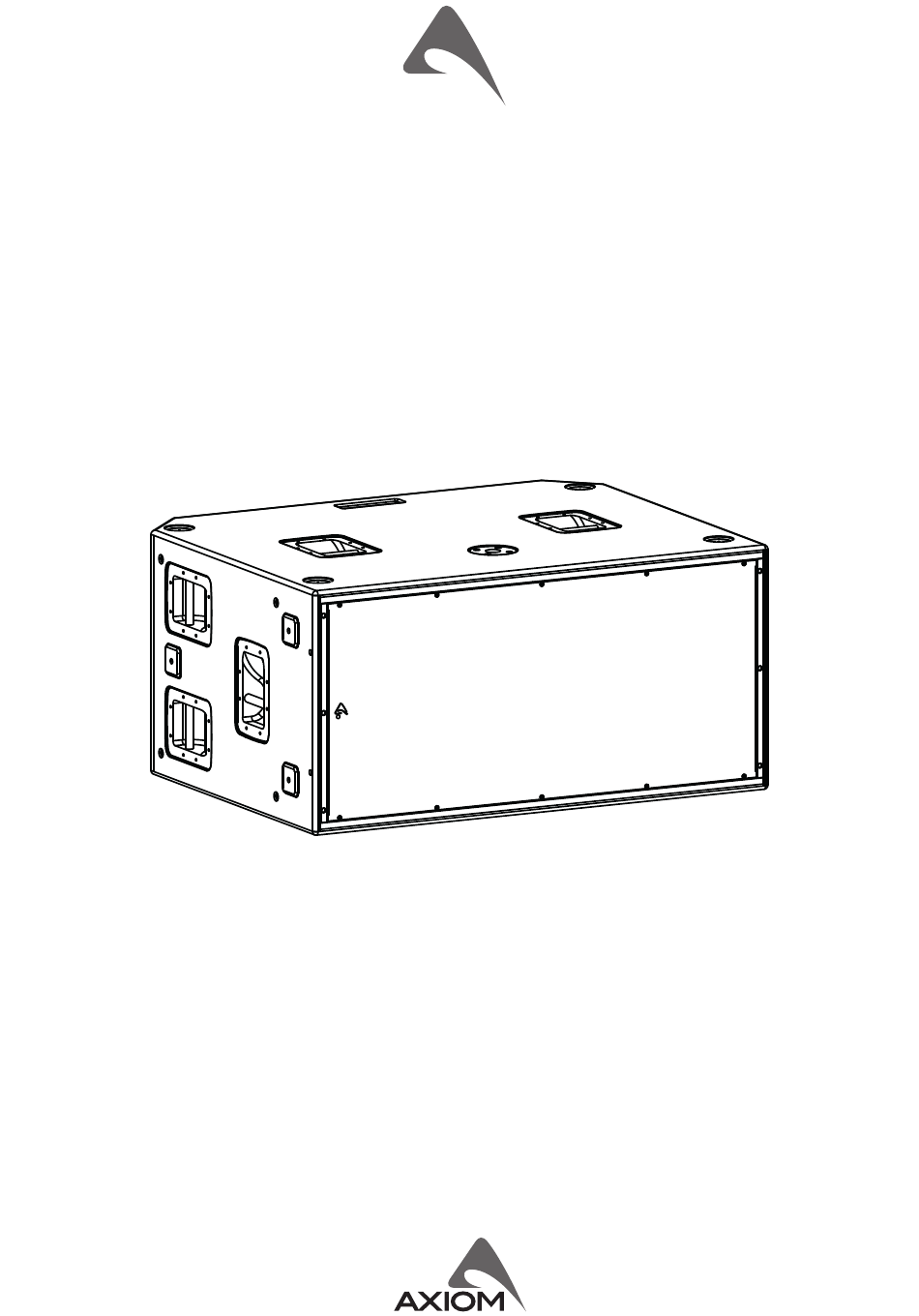

  • Page 1 SW218XAV2 active subwoofer USER MANUAL revision 2023-09-12...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 3 FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

  • Page 4: Table Of Contents

    INTRODUCTION The SW218XAV2 subwoofer is designed to deliver high quality low frequency reproduction where very high output is a key requirement, together with well defined deep bass response and fast transient response. The very high output makes it ideal for concert touring and festival applications requiring high levels of low frequency response, such as hard rock and electronic music, and for top level dance music clubs.

  • Page 5: Mechanical Drawing

    Dual Port PRONET AX network converter see http://www.axiomproaudio.com/ for detailed description and other available accessories. *Note: See assembly instruction downloadable from NEUTRIK WEB site at: http://www.neutrik.com/ SPARE PARTS 91AMDSW218XV2 SW218XAV2 Amplifier module assembly 91DALITEMOD4HV Powersoft LITEMOD4HV amplifier module 111.0 cm NAC3PX-TOP Neutrik Powercon®...

  • Page 6: I/O And Control Operations

    I/O AND CONTROL OPERATIONS MAINS~ IN Powercon® NAC3PX power inlet connector. To switch the amplifier on, insert the Powercon® connector and turn it clockwise into the ON position. To switch the amplifier off, pull back the switch on the connector and turn it counter-clockwise into the POWER OFF position.

  • Page 7: Preset Button

    • This loudspeaker is designed exclusively for Professional audio applications. The product must be installed by qualified personal only. • SW218XAV2 is NOT designed to be suspended, use it in ground stack only. • Proel do not accept any liability for damage caused to third parties due to improper installation, lack of maintenance,...

  • Page 8: Pronet Ax

    Download the PRONET AX app registering on MY AXIOM at the website at https://www.axiomproaudio.com/. The AXIOM active loudspeaker devices can be connected in a network and controlled by the PRONET AX software, for the network connection the USB2CAND (with 2-port) converter optional accessory is needed.

  • Page 9: Prediction Software: Ease Focus 3

    Line Array with regard to its possible configurations as well as to its geometrical and acoustical properties. Download the EASE Focus 3 app from the AXIOM website at https://www.axiomproaudio.com/ clicking on downloads section of the product.

  • Page 10: Cardioid Preset

    CARDIOID PRESET The cardioid preset must be used in a sub array of three SW218XAV2. Two box must be oriented towards the audience and one must be turned in the opposite direction (typically the box in the centre of the array). The bottom and the top boxes must have the STANDARD PRESET, the box in the middle must have the CARDIOID PRESET.
  • Page 11 bass cancellation direction stage wall or other big ostacle 80 cm min. 2.7 ft min. 80 cm min. 80 cm min. 2.7 ft min. 2.7 ft min. audience floor bass sum direction NOTES: When placing the cardioid array keep a distance to walls or other obstacles of at least 80 cm (2.6 ft) in order not to affect the radiation of the reversed cabinet.
  • Page 12 PROEL S.p.A. (World Headquarters) - Via alla Ruenia 37/43 - 64027 Sant’Omero (Te) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.axiomproaudio.com...
