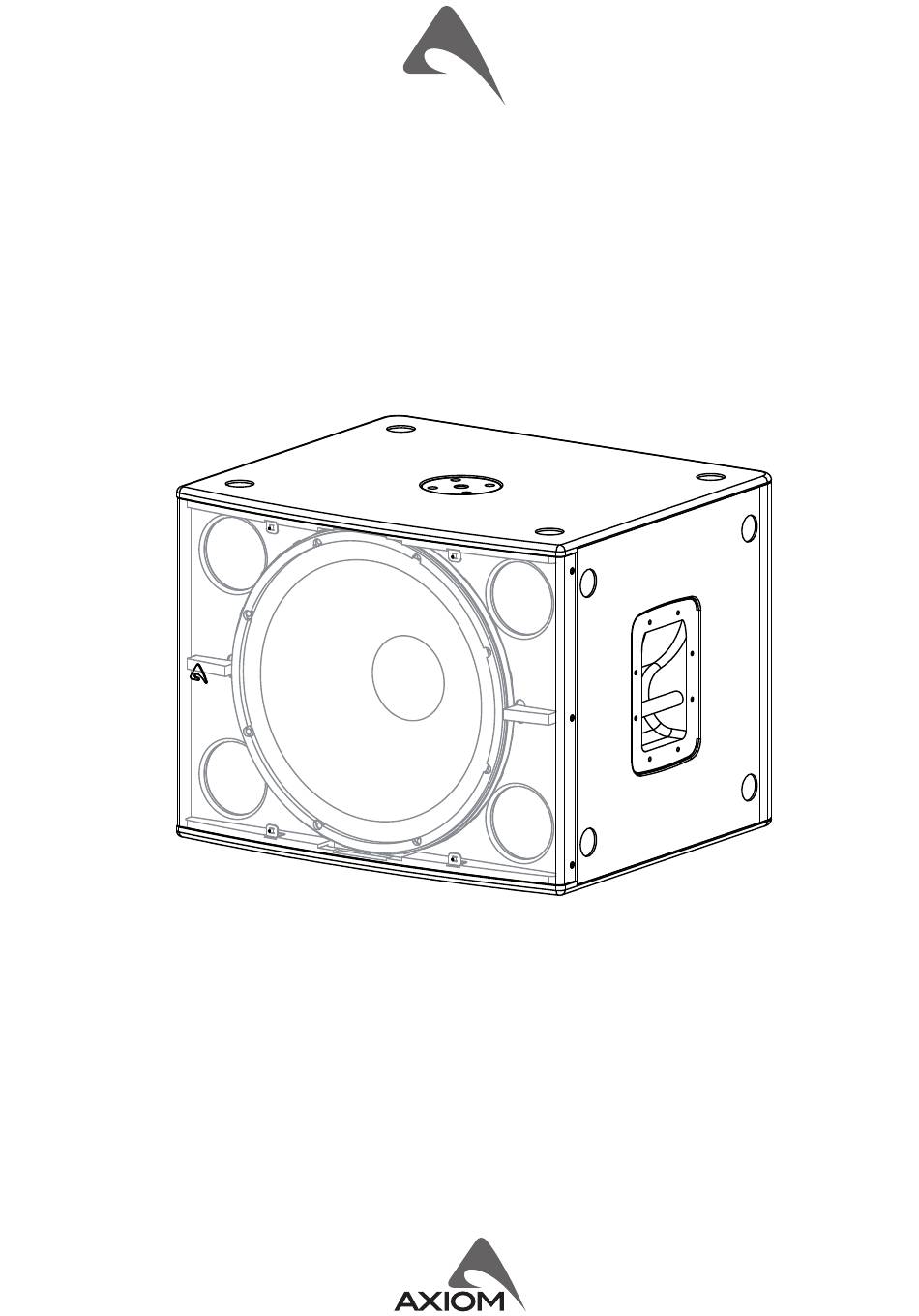

- Page 1 SW18AV2 active subwoofer USER MANUAL revision 2023-09-06...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
-
Page 4: Table Of Contents
The SW18AV2 is processed by 40 bit floating point CORE2 DSP and powered by a high efficiency CLASS D amplifier module with a newly designed power supply equipped with PFC, which reduces the power consumption while enhancing reliability and consistency in all operating conditions. -
Page 5: Mechanical Drawing
MECHANICAL DRAWING 65 cm 56.4 cm 25.6" 22.2" 67.2 cm 26.5" M20 Pole Adaptor OPTIONAL ACCESSORIES NAC3FX-W-TOP-L Neutrik Powercon® TRUE1 (for power in)* DHSS10M20 Sub-Speaker ø35mm 1-1.7m Pole with Handle and M20 screw NAC3MX-W-TOP-L Neutrik Powercon® TRUE1 (for power out)* HTLACA Tool for tightening powerCON TRUE1* KP210S... -
Page 6: I/O And Control Operations
MAINS~ OUT Powercon® NAC3PX power outlet connector. This is connected in parallel with the MAINS~ IN. With 230V~ we suggest to link a maximum of 4 SW18AV2 loudspeakers, with 120V~ we suggest to link a maximum of 2 SW18AV2 loudspeakers. -
Page 7: Preset Button
PRESET BUTTON This button has two function: 1) Pressing it while powering on the unit: ID ASSIGN The internal DSP assigns a new ID to the unit for the PRONET AX remote control operation. Each loudspeaker must have a unique ID to be visible in the PRONET AX network. When you assign a new ID, all the other loudspeakers with the ID already assigned must be ON and connected to the network. -
Page 8: Pronet Ax
Download the PRONET AX app registering on MY AXIOM at the website at https://www.axiomproaudio.com/. The AXIOM active loudspeaker devices can be connected in a network and controlled by the PRONET AX software, for the network connection the USB2CAND (with 2-port) converter optional accessory is needed. - Page 9 Assign the ID number To work properly in a PRONET AX network each connected device must have a unique identifier number, called ID. By default the USB2CAN-D PC controller has ID=0 and there can be only one PC controller. Every other device connected must have its own unique ID equal or greater than 1: in the network cannot exist two devices with the same ID.
-
Page 10: Cardioid Preset
CARDIOID PRESET The cardioid preset must be used in a sub array of three SW18AV2. Two box must be oriented towards the audience and one must be turned in the opposite direction (typically the box in the centre of the array). The bottom and the top boxes must have the STANDARD PRESET, the box in the middle must have the CARDIOID PRESET. - Page 11 bass cancellation direction stage wall or other big ostacle 80 cm min. 2.7 ft min. 80 cm min. 100 cm min. 2.7 ft min. 3.3 ft min. audience floor bass sum direction...
- Page 12 PROEL S.p.A. (World Headquarters) - Via alla Ruenia 37/43 - 64027 Sant’Omero (Te) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.axiomproaudio.com...
