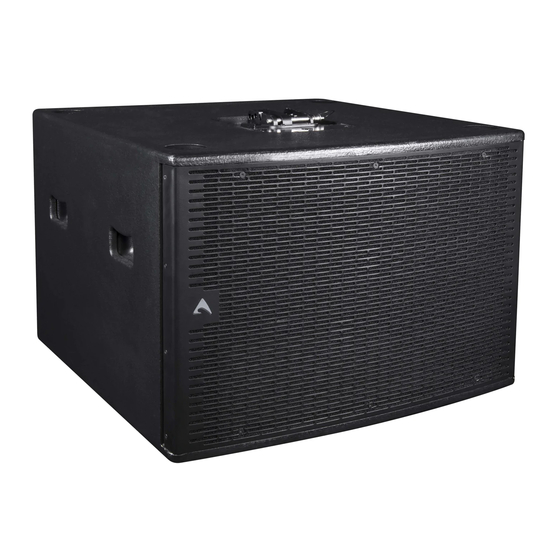

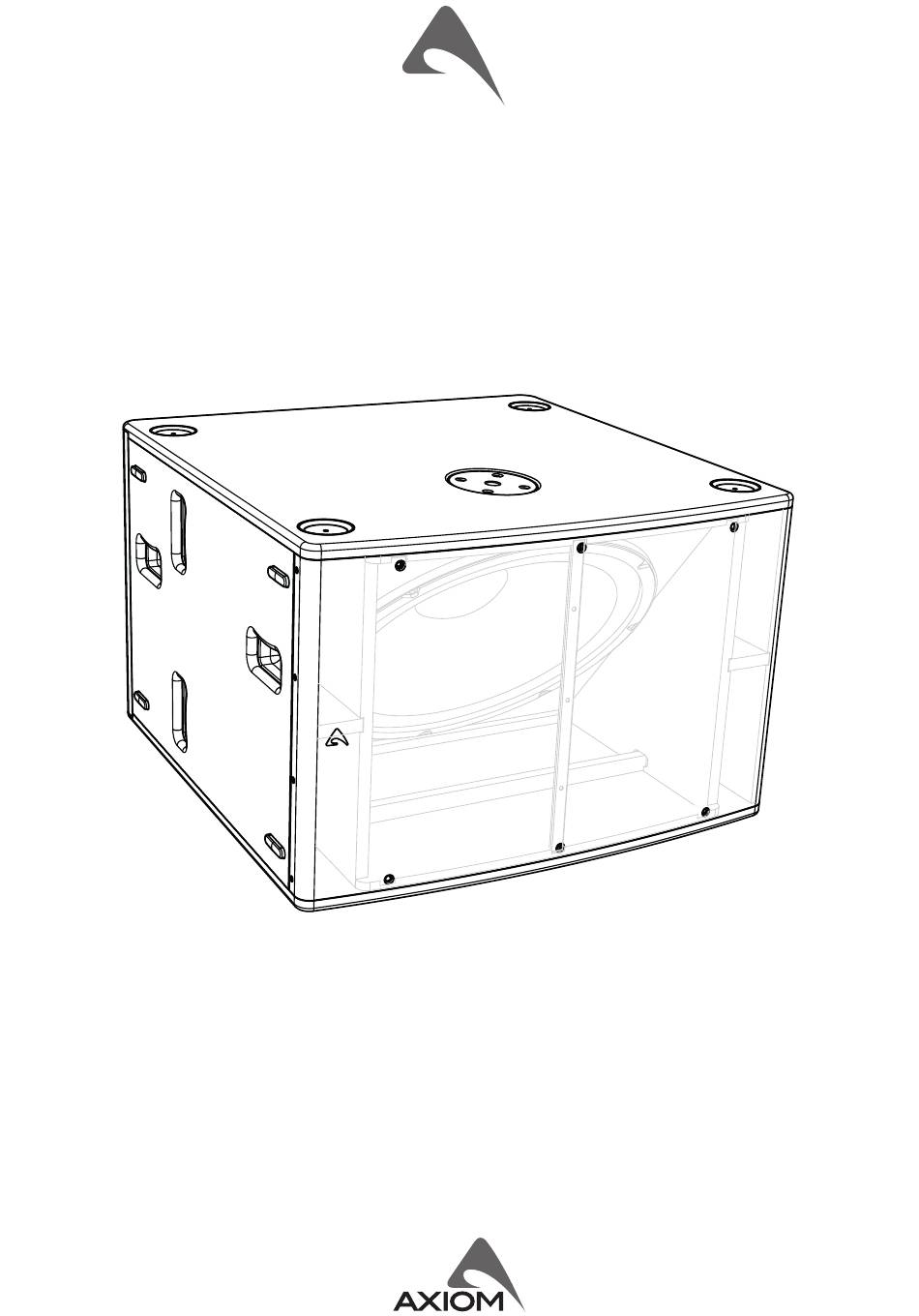

- Page 1 SW2100P Passive Subwoofer USER MANUAL revision 2023-08-04...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 DECLARATION OF CONFORMITY The product is in compliance with: RoHS Directive 2011/65/EU and 2015/863/EU, WEEE Directive 2012/19/EU. The product is in compliance with: S.I. 2012/3032 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. LIMITED WARRANTY Proel warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase.
-
Page 4: Table Of Contents
It will deliver high level and extended low bass performance from a very compact cabinet, and thanks to the integral pole mount socket partners well with any of the ED point source and AXIOM line array loudspeakers in any audio applications, while its small size enables it to be easily fitted into tight venue spaces. -
Page 5: Mechanical Drawing
MECHANICAL DRAWING 76 cm 77 cm 29.9" 30.3" 88 cm 34.7" M20 Pole Adaptor OPTIONAL ACCESSORIES NL4FXX-W-L Neutrik Speakon® PLUG for OD 10-16mm DHSS10M20 Sub-Speaker ø35mm 1-1.7m Pole with Handle and M20 screw KP210S Sub-Speaker ø35mm 0.7-1.2m Pole with M20 screw COVERSW2100 Cover for SW2100A see http://www.axiomproaudio.com/ for detailed description and other available accessories. -
Page 6: Rear Panel
+ pass thru - pass thru LINK Power output in parallel with the INPUT socket for connecting the unit to another speaker. The number of SW2100P cabinets that can be connected in parallel depends on the amplifier load capacity. - Page 8 PROEL S.p.A. (World Headquarters) - Via alla Ruenia 37/43 - 64027 Sant’Omero (Te) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.axiomproaudio.com...
