The settings for the dip switches show five as in off off on on on but the meter in the R30 that I **** working on has seven switches. What’s the difference and or the correct settings for 4 6 volt discover batteries?

1 comments:

Mr. Anderson

May 14, 2025

To determine the correct dip switch settings for the Hillyard R30SC when using four 6-volt Discover batteries, we need to calculate the total system voltage and find the appropriate battery type and voltage threshold settings from the manual.

### Step 1: Determine System Voltage
- Four 6-volt batteries connected in series result in a total voltage of 24 volts (6V × 4 = 24V).

### Step 2: Set DP1 and DP2 for System Voltage
From the manual:
- 24V system → DP1 = OFF, DP2 = ON

### Step 3: Identify Battery Type
Discover 6V batteries are most commonly sealed AGM or GEL batteries. Depending on the specific model of Discover battery, they could fall under:
- GEL+ / AGM+ (Gel80)
- GEL / AGM (Gel60)

You will need to confirm which type your Discover batteries are, but assuming GEL / AGM (Gel60) (a common configuration), we use the corresponding threshold voltage settings.

### Step 4: Set DP3–DP6 for GEL / AGM (Gel60)
From the manual:
- GEL / AGM (Gel60) options:
- 21.8V → DP3 = ON, DP4 = OFF, DP5 = OFF, DP6 = OFF
- 22.0V → ON, OFF, OFF, ON
- 22.2V → ON, OFF, ON, OFF
- 22.4V → ON, OFF, ON, ON
- 22.6V → ON, ON, OFF, OFF
- 22.8V → ON, ON, OFF, ON

Choose the threshold based on how deeply you want to discharge the battery before the system signals low voltage. A common setting is 22.0V.

So for 22.0V threshold (GEL / AGM):
- DP3 = ON, DP4 = OFF, DP5 = OFF, DP6 = ON

---

### ✅ Final Dip Switch Settings for Four 6V Discover Batteries (24V GEL / AGM, 22.0V threshold):
- DP1 = OFF
- DP2 = ON
- DP3 = ON
- DP4 = OFF
- DP5 = OFF
- **DP

This answer is automatically generated

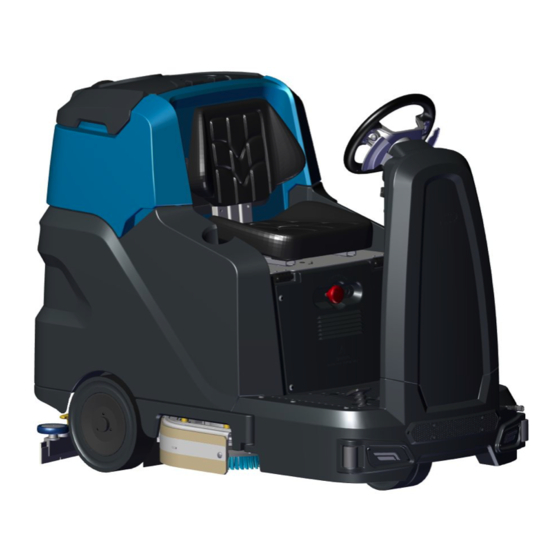

Summary of Contents for Hillyard TRIDENT R30SC

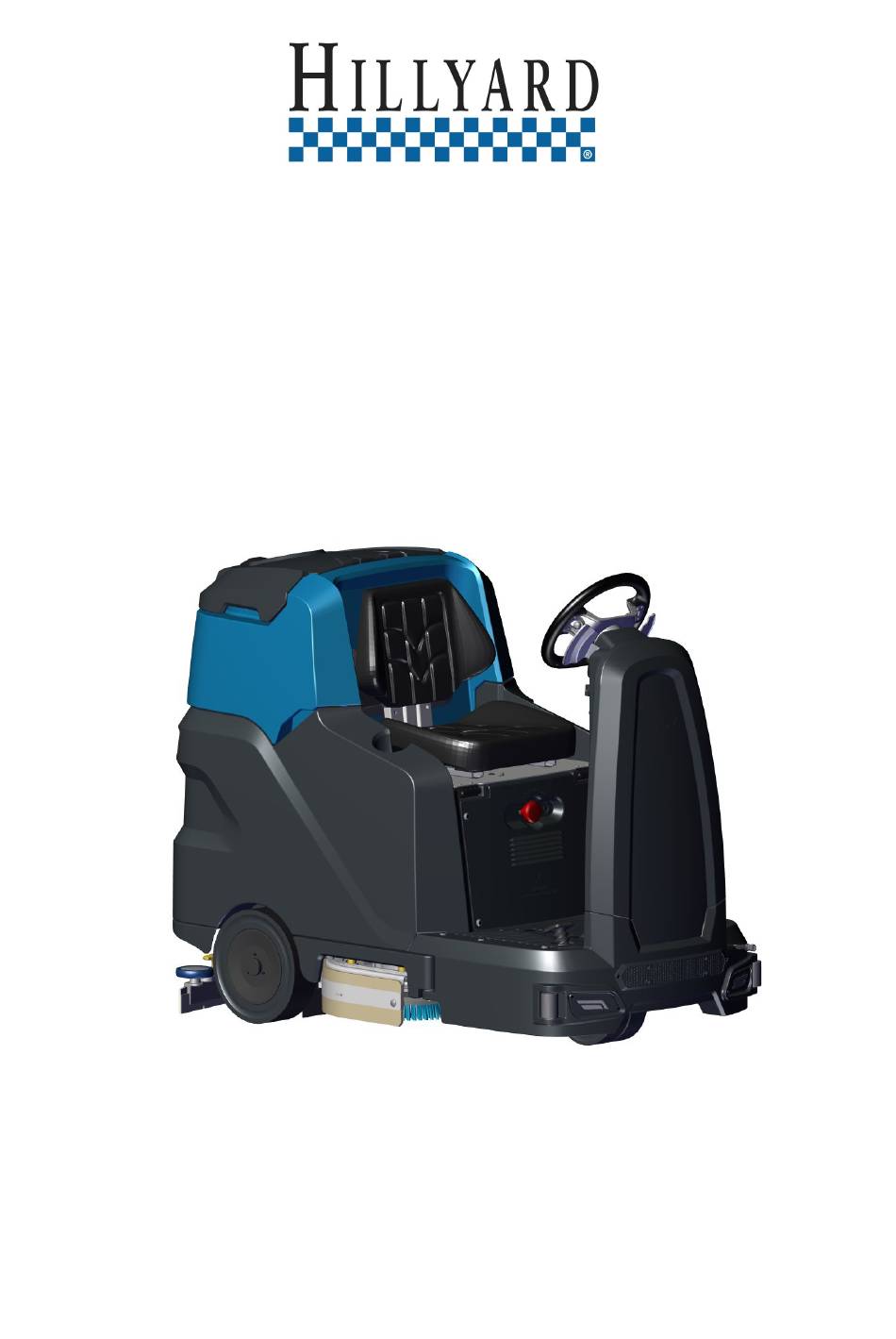

Page 1 SERVICE MANUAL TRIDENT R30SC-R28SC Version: AA Date: August 5, 2019 Document Number:100x...
Page 2: Table Of Contents
Contents Product Introduction 1 General Info Service Manual Purpose ..........Conﬁgurations .
Page 3 Disassembly ........... . . 79 6 Vacuum Unit Location on machine .
Page 4: Product Introduction
Part I Product Introduction...
Page 5: General Info
Orbital PLUS - Advanced version with integrated touch screen display. The brushdeck of the Orbital version is equipped with a central oscillating rectangular pad. 1.2.1 Products related to this Manual 108538 TRIDENT R30SC 108540 TRIDENT R30SC PLUS 108541 TRIDENT R28SC PLUS ORBITAL...
Page 6: Diagnostic And Necessary Service Tools
Diagnostic and necessary Service Tools In addition to a full set of metric and standard tools, the following items are required in order to successfully and quickly perform troubleshooting and repair. ˆ Digital voltmeter ˆ DC Current Probe with Full Scale 40-200A ˆ...
Page 7: Technical Data
Technical Data Technical Data TECHNICAL DESCRIPTION R30SC-R28SC Squeegee width Traction Motor 24 - 600 (Voltage - Nominal Power) Maximum Ramp Gradient (Work) Maximum Ramp Gradient (Transfer) Maximum Ramp Gradient (Transport) Solution Tank Recovery Tank Maximum forward speed (Transport) (Default) Maximum forward speed (Work) (Default) Maximum backward speed (Default)
Page 8 Technical Data TRIDENT R30SC R30SC TECHNICAL DESCRIPTION Base Plus Working width Working capacity, up to 43055 43055 Total Power 2025 2225 Brushes Motor 24-500 24-500 (Voltage - Nominal Power) Brushes Nr-Øin 2-16 2-16 (Number - Ø External) Brush Revolutions Max weight on Brushes Front Wheels Nr-Øin-in...
Page 9 Weights and Pressures TRIDENT TECHNICAL DESCRIPTION R30SC R28SC Machine Weight (empty and without batteries) Gross Weight of the machine in work conditions 1270 1237 (machine + batteries + water + operator) TRIDENT TECHNICAL DESCRIPTION R30SC R28SC Weight front wheels Front wheels pressure Weight rear right wheel Rear right wheel pressure Weight rear left wheel...
Page 10: Machine Dimensions
Machine Dimensions 1.6.1 R30SC...
Page 11 1.6.2 R28SC...
Page 12: Fastener Torque Specifications
Fastener Torque Speciﬁcations Nominal Diameter Standard Screws Stainless Steel Screws 3.1 Nm - 27.4 lb/in 2.1 Nm - 18.6 lb/in 6 Nm - 53.1 lb/in 4 Nm - 35.4 lb/in 10.4 Nm - 92 lb/in 7 Nm - 62 lb/in 24.6 Nm - 18.1 lb/ft 16.5 Nm - 12.2 lb/ft 50.1 Nm - 37 lb/ft...
Page 13: Main Components
Main Components Battery charger Vacuum Group Solution Tank Electrical Harness Side Brush Deck Traction and Frame Group Front Carter Group Squeegee Brush Deck Control Squeegee Control Brush Deck Water Group Recovery Tank...
Page 14: Pdi
1.10 1.10.1 Before delivering the machine, carry out all the operations described below: ˆ Install the batteries and perform a complete recharge cycle (check the setting of the machine and of the battery charger) ˆ Install the clean water ﬁlter ˆ...
Page 15: Anomalies Resolution Guide
Part II Anomalies Resolution Guide...
Page 16: Trouble-Shooting
Chapter 2 Trouble-shooting Electrical system: what to do if. . . The machine doesn’t switch on The emergency button is pressed Release the emergency button. The key is in position 0 Rotate the key in position I. The key switch is not properly connected Restore the proper connections.
Page 17 The batteries don’t work properly The batteries are not properly connected Restore the proper battery connections. The batteries are not properly connected Connect the loop wires and the output cables cor- rectly. The batteries are discharged Perform a complete charge cycle. Battery terminal are oxidized Disconnect the batteries, clean the batteries ter- minals and reconnect properly the batteries, pro-...
Page 18: Mechanical Scrubbing System: What To Do If
Mechanical scrubbing system: what to do if. . . The machine doesn’t clean well The machine is switched oﬀ Switch on the machine. The machine doesn’t switch on Refer to the proper section (see section at page The machine is in ”Standard” mode Set the machine in Extrapressure mode.
Page 19 The brush motor doesn’t work properly (BASE) The brush motor is Oﬀ Activate the brush motor by lowering the lever. (PLUS) The brush motor is Oﬀ Activate the brush motor with the Wash mode. The brush motor is not powered properly Check the power connections on the brush mo- tor.
Page 20: Drying System: What To Do If
Drying system: what to do if. . . The machine doesn’t dry well The machine is switched oﬀ Switch on the machine. The machine doesn’t switch on Refer to the proper section (see section at page (BASE) The machine is not in working condi- Switch on the machine.
Page 21 The vacuum motor doesn’t work properly (BASE) The vacuum motor is Oﬀ Activate the vacuum motor by lowering the lever. (PLUS) The vacuum motor is Oﬀ Activate the brush motor with the Drying mode. The vacuum motor is not powered properly Check the power connections on the vacuum mo- tor.
Page 22: Frame And Traction System: What To Do If
Frame and traction system: what to do if. . . The traction motor doesn’t work properly The machine is switched oﬀ Switch on the machine. The machine doesn’t switch on Check the proper section (see section at page 16) The display shows an alarm message Check what alarm message is shown and solve the related issue by following the proper instruc- tions...
Page 23: Solution Delivery System: What To Do If
Solution delivery system: what to do if. . . The delivered solution is not correct or not enough The machine is switched oﬀ Switch on the machine. The machine doesn’t switch on Refer to the proper section (see section at page The solution tank is empty Fill up the solution tank.
Page 24: Functional Groups
Part III Functional Groups...
Page 25: Electrical System
Chapter 3 Electrical System Description A main card runs all the functions of the machine, traction, braking, washing and drying. The main card receive as input, all the information from the micro switches and all the electronic devices of the machine. These signals are translated from the main card to run correctly the scrubber dryer and to prevent any safety problem to the operator.
Page 26: Location Of Electrical Components
Location of Electrical Components 3.2.1 R30SC-R28SC Plus...
Page 27 3.2.2 List of Components R30SC-R28SC Plus 1 Emergency button 29 Front Right Light 3 Main Control Card 30 Solenoid Valve 4 Side Brush motor Control Card 31 Side brush Solenoid Valve 9 Max Pressure microswitch 34 Electrobrake 12 Key switch 35 Traction Pedal 13 Blinking Light 38 Battery charger 24V 25A (CB)
Page 28 3.2.3 R30SC Base...
Page 29 3.2.4 List of Components R30SC Base 1 Emergency button 3 Main Control Card 27 Rear Right Light 4 Side Brush motor Control Card 28 Front Left Light 9 Max Pressure microswitch 29 Front Right Light 12 Key switch 30 Solenoid Valve 13 Blinking Light 31 Side brush Solenoid Valve (SL) 14 Reaycle Button (FLR)
Page 30 3.2.5 Main Card The Main Card is the heart of the machine and, depending of the input information, decides how to use the devices of the machine during normal work. On the table here below, is possible to identify the input/output signals of the card.
Page 31 Electrobrake Violet Negative Electrobrake Micro Orange Micro NO HFM (Rx) Green Receiving HFM (Tx) Grigio Transmitting HFM (Gnd) Yellow Negative Potentiometer Brown Traction pedal micro Gray Potentiometer Green Negative Potentiometer White Central Potentiometer Traction pedal micro Yellow Input Encoder Green Encoder White Encoder...
Page 32 Water Pump Black Negative (Plus) Chemical Pump Yellow Negative Water Pump Positive (Plus) Chemical Pump Green Positive Micro common Black Negative Clean Water Reserve Floater Gray (Base) Recycle Empty Sensor Violet (Base) Switch/recycle LED Rose Electrobrake Micro Orange Multimode Micro extra pressure Lever Blue Brushdeck lever Micro...
Page 33 Key Contact/CB Rose 2 cables (Plus) display Yellow Receiving (Plus) Display/Blinker/Camera Brown (Base) Hourmeter/Blinker Light Blue Negative Key/Charger Orange Input Hourmeter transmitting/display Green PIN n.8 Hourmeter/display Gray Brushdeck actuator Micro Brown Max pressure Rose Input Max pressure Micro Yellow Output Brushdeck Actuator Light Blue Max pressure Micro...
Page 34 3.2.6 HFM System The HFM system (Hillyard Fleet Management) allows to geolocalize machines on the appropriate Web site, and to monitor the parameters, time and manner of use of the machine. It is composed by the following elements: GSM-GPS Card (Black Box) Positioned close to the Main card, the BB interfaces with the machine control electronics, and send the infor- mation to the central server which record all the information.
Page 35 3.2.9 Hourmeter (Base) The machine is equipped with an electronic hourmeter installed on the dashboard, which has a triple function: Hourmeter, for counting the totality of the machine’s working hours (only when it is in traction). Display, that allows to verify the setting of the Main Card and the possible alarm messages. battery control board, to keep under control the level of residual charge and stop the machine’s working cycle in case the discharge threshold of the battery is close to levels that could compromise the life cycle.
Page 36 3.2.18 Service Lights (Plus) The service lights positioned at key inspection points, facilitate the operations especially in dimly lit places. 3.2.19 Safety switch (Seat) The seat safety switch molded into the seat, disables the machine functions if the operator is not seated.
Page 37 3.2.20 Lights The machine is equipped with Front and Rear position lights (A), working Front (B) and backward Rear (B). R30SC-R28SC Plus can turn ON and OFF the working lights; R30SC Base has the working lights always ON. On both models the rear position lights increase the brightness if the electronic brake is pressed. 3.2.21 Traction Encoder The Encoder is located inside the traction motor and transfers information on the speed of the machine to the...
Page 38 3.2.26 Microswitches The machine is provided with a series of microswitches to enable/disable certain functions or to send signals to the traction card. In particular: ˆ Max pressure Micro. The micro is mounted on a plate integral with the base of the brushdeck. In case the motors have a too low absorption, it avoids that the deck actuator continues to push.
Page 39 ˆ Traction Microswitch. The micro is located inside the accelerator pedal. When the accelerator pedal is pressed and the micro is closed, the traction card is enabled (as long as the deadman micro is pressed). ˆ Vacuum motor Microswitch (Base). The micro is on the squeegee lifting lever. With lowered squeegee lever and closed micro, when the traction pedal is pressed, the suction motor is activated.
Page 40 3.2.27 Batteries The power supply is 24V with four 6V batteries in series. Below is the list of available batteries. Number Model Type Voltage [V] Capacity [Ah] 6 TP 210 Trojan T145 6 MFP 180 The function board transforms the voltage value of the batteries into percentage. This value is then used for operation as a percentage of charge with respect to the maximum capacity.
Page 41: Alarm & Warning Table
Alarm & Warning Table 3.3.1 General Alarms Id Alarm Meaning Solution AL 1 EEPROM failure Detected an Error in the internal memory of the card. Turn oﬀ General and on again. If the error persists, replace the card. AL 2 Key-oﬀ...
Page 42 3.3.2 Function Alarms Id Alarm Meaning Solution The temperature of the functions power mosfets exceeds 90 ° C. AL 41 Overtemperature Function Switch oﬀ the machine, wait for the cooling and then switch on again. AL 42 Powerstage failure Verify the machine model setting, turn it oﬀ and on again. If the Function problem persists, replace the main card.
Page 43 3.3.3 Traction Alarms Id Alarm Meaning Solution The temperature of the traction power mosfets exceeds 90 ° C. AL 80 Overtemperature Traction Switch oﬀ the machine, wait for the cooling and then switch on again. AL 81 Powerstage failure Turn it oﬀ and on again. If the problem persists, replace the main Traction card.
Page 44: Adjustments
Adjustments 3.4.1 Microswitches Check functionality and conditions of the microswitches. Check that with microswitch pressed, remains about 0.5 mm clearance between the lever and the body of the microswitch. Make sure the lever of the micro is working properly. Otherwise, proceed as follows: ˆ...
Page 45 Check the correct setting of the battery control card with the installed batteries. To properly adjust the battery control card, proceed as follows: ˆ Put the machine in safe conditions. ˆ Remove the steering wheel carter. ˆ On the back of the hourmeter, Set the dipswitch, following the instructions. ˆ...
Page 46 3.4.3 Battery Charger (CB) The battery charger is located inside the battery compartment, underneath the operator seat. To facilitate charging and charge control, an additional Socket and a LED display is installed, easily accessible by lifting the recovery tank. At the start of the charging cycle, the charger indicates the selected charging algorithm by the LED ﬂashing.
Page 47 Set-up of Charging Curve Set Up Yellow LED Green LED Flashes IUI0-Pb Flooded IUoU-Gel Trojan IUoU-AGM GEL IUI0-Gel Sonnenschein IUIa-Pb Flooded IUI0-AGM EV-Discover IUa-AGM Zenith IUIa-Gel Sonnenschein Error Codes of Charger The charger have an alarm system through successive ﬂashes of the yellow LED. Error code Flash Description...
Page 48: Programming
Programming 3.5.1 R30SC Base ˆ Ensure the machine is switched OFF. ˆ Connect the programmer to the Card on the J2 connector, in the position shown in the ﬁgure. ˆ Turn on the machine and operate with the programmer (Password 10). ˆ...
Page 49 Main Menu (R30SC Base) MENU DESCRIPTION T MOTOR CURRENT Traction Motor Current. Imot= ## Amps T MOTOR VOLTAGE Traction Motor Voltage. Vmot = ##.# Volts T MOTOR SPEED Machine Speed. #.# Km/h BR MOTORS Brush Motors Current. Imot= #.# #.# Amps VAC MOTOR Vacuum Motor Current.
Page 50 3.5.2 R30SC-R28SC PLUS The Display allows the access to basic settings with free access and to the parameter list protected by Password (3222). The structure of the menu can be shown in the following image. Turn on the machine and access the menus by following the icons in the diagram...
Page 51 Parameters Menu (R30SC-R28SC PLUS - Password=3222) MENU’ DESCRIPTION GENERAL SETTINGS Access to the general parameters (main, battery, hourmeter, accessibility, setting). BRUSHES MOTOR Access to the parameters of the brushdeck function. PUMPS Access to the parameters of the water pump and chemical pump function. VACUUM MOTOR Access to the parameters of the vacuum function.
Page 52 General Battery Parameters Parameter Default Description General - Battery 3/Pb80 Battery Type (0=Pb60; 1=Gel60; 2=XFC; 3=Pb80; 4=Gel80; Battery Type 5=Custom). General - Battery Charge threshold beyond which the Brush Motor is inhibited. Brushes oﬀ Level #% General - Battery 23.5 15.0 40.0 Valid on Custom Battery Parameter: Battery Level 100%.
Page 53 General Access Parameters Parameter Default Description General - Access Mode 3222 3000 3999 Dealer Password. Password 2 (Dealer) General - Access Mode 2234 2000 2999 Customer Password. Password 3 (Customer) General - Access Mode 1000 1000 1999 User Password. Password 4 (User) General - Access Mode PIN.
Page 54 Brushes Parameters Parameter Default Description Brush - Brush Motor Brush Motor Rated current; with T Nom manages the ampero- Nominal Current # Amp. metric protection (alarm + stop brush motor). Brush - Brush Motor 10.0 Brush Motor Switch on Delay when the traction pedal is pressed. Switch-On Delay # sec.
Page 55 Vacuum Parameters Parameter Default Description Vacuum - Vac.Motor Vacuum Motor Rated current; with T Nom manages the amper- Nominal Current # Amp. ometric protection (alarm + stop brush motor). Vacuum - Vac.Motor Brush Motor Switch on Delay when the traction pedal is pressed. Switch-On Delay # sec.
Page 56 Traction Parameters Parameter Default Description Traction - Speed Sets In Transfer Mode, Time to reach the max speed. Acceleration Ramp 1 - # sec. Traction - Speed Sets In Working Mode, Time to reach the max speed. Acceleration Ramp 2 - # sec. Traction - Speed Sets When the traction pedal is released, the time necessary to stop Deceleration Ramp 1 - # sec.
Page 57: Maintenance And Checks
Maintenance and Checks 3.6.1 Electrical System Check 150h Check the functions and the proper connections of the switches, microswitches, motors, power fuses, battery loop wires, main card. Check periodically, the wiring connections status. To get access to the electrical system, remove the carter under the seat.
Page 58 3.6.3 Checking the acid batteries TEST OF DENSITY OF ELECTROLYTE 1. Do not add water 2. Using the electrolyte, rinse the density meter at least 3 times before taking a sample 3. Fill the hygrometer so that the oscillating part of it is completely supported by the liquid 4.
Page 59 OPEN CIRCUIT VOLTAGE TEST For a correct veriﬁcation by voltage measurement the batteries must remain unused (ie: not be charged or used) for at least 6 hours, it is preferable however that the hours are 24. 1. Disconnect all loads from the battery 2.
Page 60: Washing Unit
Chapter 4 Washing Unit Location on machine The washing unit is located under the machine body in a central position. The washing unit control is assembled above it...
Page 61: Main Components
Main Components Rightside Brush Gearmotor Bubble Level Solenoid Valve Upper Lifting Arm Right Lower Lifting Arm Compensation Spring Left Lower Lifting Arm Leftside Brush Gearmotor Water Distributor Brush uncoupling Knob Brush Deck Body Rightside Brush Brush coupling Flange Brush coupling Spring Leftside Brush Brushdeck support Bushing Brushdeck Actuator...
Page 62: Lubrication Points
Lubrication Points For lubrication use standard grease. ˆ Lifting Arms ˆ Bushings ˆ Rotation Pins ˆ Pressure control microswitch Rod Work requirements The washing unit only works if the following conditions are met: ˆ The batteries are not discharged. ˆ The operator is seated on the machine so as to press the seat safety switch (1).
Page 63: Operating Mode
Operating mode WASHING Assumption Action Result Machine ON Washing Enabled Brushdeck Actuator goes down (+24V to M4) Operator Sitting Forward pedal pressed Brush Motors ON after 1,5 seconds (+24V to M2a-M2) Solution Pump ON if water level is diﬀerent than 0 (+24V to Pa) Solenoid Valve ON if water level is diﬀerent than 0 (+24V to J6-13 to J6-5)
Page 64: Related Electrical Circuit
Related electrical circuit 4.6.1 R30SC Base...
Page 65 Functionality Check - Disc Brush Deck R30SC BASE Conventions: ˆ + : Positive voltage of the battery. ˆ : Negative voltage of the battery. ˆ The emergency button is not pressed, the key contact is closed and the charger is not connected to the mains.
Page 66 4.6.2 R30SC PLUS...
Page 67 Functionality Check - Disc Brush Deck R30SC PLUS Conventions: ˆ + : Positive voltage of the battery. ˆ : Negative voltage of the battery. ˆ The emergency button is not pressed, the key contact is closed and the charger is not connected to the mains.
Page 68: Adjustments
4.6.3 Relative electrical Components Brush Motor With constant 24 V DC power supply (battery charged) the motor with no load (BR1 & BR2) absorbs 2.6 Amps 0.1. With a constant supply of 21 V DC (low battery) the absorption is 2.4 Amps 0.1.
Page 69 4.7.2 Brush Deck Actuator Adjust the micro switches inside the actuator using the appro- priate adjusting screws. In lifted position, the brushes must be able to move easily under the deck . Requirements: Switched Oﬀ machine, remove the batteries and the battery support.
Page 70: Disassembly
Disassembly 4.8.1 Brush Flange Press the ﬂange stop rod (1) to lock the ﬂange. With the rod lowered, insert the Allen wrench and unscrew in the opposite direction to the brush at work. Then proceed with the removal of the ﬂange. 4.8.2 Brush Deck Release the brushes from the Brush Deck.
Page 71 4.8.3 Brush Deck Actuator Lower the brushdeck and the squeegee to the ﬂoor, and switch the machine Oﬀ. Remove the batteries and the battery support. Remove the Front seeger and Pin of the actuator. Disconnect the electric wiring of the actuator. Remove the Rear seeger and the pin of the actuator.
Page 72: Orbital Unit
Chapter 5 Orbital Unit Location on machine The sweeping unit is located under the machine body in a central position. The sweeping unit control is assembled above it...
Page 73: Main Components
Main Components Upper Lifting Arms Lower Lifting Arms Water Distributor Brush Deck Body Brush Carter coupling knob Brush Carter Splashguard Rubber Brush Bearings Front Brush Motor Brush coupling Pentagon Rear Brush Motor Motor Connector Brush Deck Actuator Sliding bushings Lifting Chain Pressure Control Spring Rotation Bracket Max pressure microswitch...
Page 74: Work Requirements
ˆ Rotation Pins ˆ Sliding bushings Work requirements The sweeping unit only works if the following conditions are met: ˆ The batteries are not discharged. ˆ The operator is seated on the machine so as to press the seat safety switch (1). ˆ...
Page 75: Operating Mode
Operating mode WASHING Assumption Action Result Machine ON Washing Enabled Brushdeck Actuator goes down (+24V to M5) Operator Sitting Forward pedal pressed Brush Motors ON after 1,5 seconds (+24V to M2a-M2) Solution Pump ON if water level is diﬀerent than 0 (+24V to Pa) Solenoid Valve ON if water level is diﬀerent than 0 (+24V to J6-13 to J6-5)
Page 76: Related Electrical Circuit
Related electrical circuit 5.6.1 R28SC PLUS...
Page 77 Functionality Check - Orbital Brush Deck R28SC PLUS Conventions: ˆ + : Positive voltage of the battery. ˆ : Negative voltage of the battery. ˆ The emergency button is not pressed, the key contact is closed and the charger is not connected to the mains.
Page 78: Adjustments
5.6.2 Relative electrical Components Brush Motor With constant 24 V DC power supply (battery charged) the motor with no load (BR1 & BR2) absorbs 1.7 Amps 0.1. With a constant supply of 21 V DC (low battery) the absorption is 1.6 Amps 0.1.
Page 79: Disassembly
Disassembly 5.8.1 Orbital Brush Deck Lower the Brush deck to the ﬂoor. Put the machine in safe conditions. Unscrew the screws securing the lifting arms from the Brush Deck assembly. Disconnect the electrical connector of the Orbital motor. Disconnect the electrical connector of the solenoid valve. Disconnect the solution supply hose.
Page 80: Location On Machine
Chapter 6 Vacuum Unit Location on machine The vacuum unit is located in central rear position.
Page 81: Main Components
Main Components Bumping wheel Squeegee upper body Squeegee coupling Knobs Wheel height adjustment knobs Squeegee rubbers ﬁxing knobs Support Rotation Pin Tilt adjustment knob Squeegee Front Support Squeegee lifting Pin Actuator Support pressure Rod Actuator coupling Support Pressure Rod counternut Squeegee lower body Squeegee Front Rubber Squeegee Rear Rubber...
Page 82: Lubrication Points
Lubrication Points For lubrication use standard grease. ˆ Lifting Lever ˆ Bushings and Pins Work requirements The Vacuum unit only works if the following conditions are met: ˆ The batteries are not discharged. ˆ The operator is seated on the machine so as to press the seat safety switch (1).
Page 83: Operating Mode
Operating mode VACUUM Assumption Action Result Machine ON Vacuum Enabled Squeegee Actuator goes down (+24V to M5) Operator Sitting Forward pedal pressed Vacuum motor ON (+24V to M3) Machine ON Backward function enabled Squeegee Actuator rises (-24V to M5). Operator Sitting during work Machine ON Traction Pedal not pressed...
Page 84: Related Electrical Circuit
Related electrical circuit 6.6.1 R28SC Base...
Page 85 Functionality Check - Vacuum Unit R28SC Base Conventions: ˆ + : Positive voltage of the battery. ˆ : Negative voltage of the battery. ˆ The emergency button is not pressed, the key contact is closed and the charger is not connected to the mains.
Page 86 6.6.2 R30SC-R28SC PLUS...
Page 87 Functionality Check - Vacuum Unit R30SC-R28SC PLUS Conventions: ˆ + : Positive voltage of the battery. ˆ : Negative voltage of the battery. ˆ The emergency button is not pressed, the key contact is closed and the charger is not connected to the mains.
Page 88: Adjustments
Floater microswitch The Floater microswitch by means of the lever, indicates when the water level is at critical level of overﬂow or empty in the case of recycling system (optional). Flashing light The ﬂashing light always active when the machine is on, has the function of facilitating its visibility. Adjustments 6.7.1 Squeegee...
Page 89: Disassembly
When the operation is performed, verify that height and incli- nation adjustment bubble levels of the squeegee are in central position. At further conﬁrmation, check that the trailing spring of the squeegee support has a stroke equal to 100 mm. Check functionally the resulting adjustment.
Page 90 the squeegee have to be lifted from the ﬂoor. When the screw is removed, the squeegee support will lower to the ﬂoor. Remove the pin which secures the base of the squeegee support to the frame, by unscrewing the screw at the side of the pin itself.
Page 91: Frame And Traction Unit
Chapter 7 Frame and Traction Unit Location on machine The frame and traction unit is located under the machine body.
Page 92: Main Components
Main Components Steering Wheel Backward switch Max Pressure Switch Accelerator Pedal Brake Pedal Brake Pedal microswitch Battery Tray Traction Gearmotor Electrobrake Frame Rear Splashguard Rear Wheels Front Wheels Touchscreen Display Key Switch Horn Steering Chain Work requirements The traction unit only works if the following conditions are met: ˆ...
Page 93: Operating Mode
Operating mode TRACTION Assumption Action Result Machine ON Forward pedal pressed Traction motor ON (+24V to M1-M2) Operator Sitting Machine ON Backward function enabled Traction motor ON after 2 seconds (-24V to M1-M2) Operator Sitting during traction Machine ON Traction pedal not pressed Traction motor OFF after 2 seconds (ref to M1-M2) Operator Sitting during transfer...
Page 94: Related Electrical Circuit
Related electrical circuit 7.5.1 R30SC Base...
Page 95 Functionality Check - Traction Unit R30SC Base Conventions: ˆ + : Positive voltage of the battery. ˆ : Negative voltage of the battery. ˆ The emergency button is not pressed, the key contact is closed and the charger is not connected to the mains.
Page 96 7.5.2 R30SC-R28SC PLUS...
Page 97 Functionality Check - Traction Unit R30SC-R28SC PLUS Conventions: ˆ + : Positive voltage of the battery. ˆ : Negative voltage of the battery. ˆ The emergency button is not pressed, the key contact is closed and the charger is not connected to the mains.
Page 98: Adjustments
Batteries The batteries must have a voltage of 24V. Four 6V monoblock elements or Two 12V monoblock elements can be installed (see section 3.2.27 at page 40) Adjustments 7.6.1 Steering Column Chain The steering wheel should be adjusted when there is too much clearance between the chain that acts on the pinion connected to the steering bar of the steering wheel and the sprocket mounted on the front wheel.
Page 99: Disassembly
Disassembly 7.7.1 Touchscreen Display Unscrew the 6 screws of the nose and remove it. Unscrew the headless screw. Slide out the display and remove the 4 screws on the back. Open the display and remove connectors 1-2. 7.7.2 Front Wheel Lift up the front wheels from the ground.
Page 100 Disconnect the electrical wiring from the gearmotor, ie the two power cables and the encoder cable (with molex connector). Remove the screws securing the gearmotor and the splash guard to the frame. Separate the screws that secure the splash guard as they have a longer length than the other screws in the assembly.
Page 101: Water Unit
Chapter 8 Water Unit Location on machine The Water unit is located under the machine body in central position. Main Components Seat Solution Tank Water Valve adjustment Rod Chemical Pump Water Pump Solution Tank Reserve Floater Water ﬁll Cap Chemical dosing cap Rear Light Solution tank drain cap Water Filter...
Page 102: Work Requirements
Work requirements The Water unit only works if the following conditions are met: ˆ The batteries are not discharged. ˆ The operator is seated on the machine so as to press the seat safety switch (1). ˆ The machine is on (2). ˆ...
Page 103 RECOVERY TANK FLOATER Assumption Action Result Machine ON Floater enabled Floater ON (+24V to J8(12)) Operator Sitting (full tank) Solenoid Valve OFF Solution Pump OFF (if available) Chemical Pump OFF (if available) RECYCLE SYSTEM Assumption Action Result Machine ON Recycled button enabled Recycle Pump ON (+24V ref to j7-2/j7-4).
Page 104: Related Electrical Circuit
Related electrical circuit 8.5.1 R30SC Base...
Page 105 Functionality Check - Water Unit R30SC Base Conventions: ˆ + : Positive voltage of the battery. ˆ : Negative voltage of the battery. ˆ The emergency button is not pressed, the key contact is closed and the charger is not connected to the mains.
Page 106 8.5.2 R30SC-R28SC PLUS...
Page 107 Functionality Check - Water Unit R30SC-R28SC PLUS Conventions: ˆ + : Positive voltage of the battery. ˆ : Negative voltage of the battery. ˆ The emergency button is not pressed, the key contact is closed and the charger is not connected to the mains.
Page 108 8.5.3 Relative electrical Components Water Pump The water pump, connected to the solution tank and to the solenoid valve, allows a regular ﬂow to the brushes. Solenoid Valve The solenoid valve is located on the back of the brush deck body, which can be easily accessed from the left side.
Page 109: Consumable And Recommended Spare Parts
Chapter 9 Consumable and Recommended Spare Parts Consumable 9.1.1 Mechanical Rubbing System R30SC Description Width (in) Bristle Bristle (in) Colour 414272 BRUSH PPL 0,3 0,012 Light Blue 414270 BRUSH PPL 0,6 0,023 White 414273 BRUSH PPL 0,9 0,035 Black 414271 BRUSH TYNEX ABRASIVE 0,035...
Page 110: Recommended Spare Parts
9.1.2 Drying System R30SC-R28SC Description Dim (inch) BASE PLUS Squeegee 225736 RUBBER KIT PARA 33 SHORE 37 x 2,5 x 0,2 225737 RUBBER KIT PARA 40 SHORE 37 x 2,5 x 0,2 225738 RUBBER KIT POLYURETHANE 37 x 2,5 x 0,2 225367 CASTER WHEEL D=80 Carbon Brushes...
Page 111 9.2.1 Electrical System BASE PLUS Description R30SC R28SC R30SC 443332 MAIN BOARD 7CFX1000 440063 HOURMETER W/BATTERY INDICATOR NE306 409261 KEY SWITCH 443042 BACKWARD / EXTRA PRESSURE BUTTON 409491 EXTRAPRESSURE MICROSWITCH 216691 SPEED REDUCTION MICROSWITCH 225525 BRAKE PEDAL GROUP 226032 HORN BUTTON 443044 HLR BUTTON 443553...
Page 112: Accessories And Add-On
Part IV Accessories and Add-On...
Page 113: Accessories
Chapter 10 Accessories 10.1 Accessories List ˆ HFM Kit ˆ Superelastic Wheels Kit 10.2 Kit HFM - 225709 10.2.1 Description The HFM kit allows you to install on the machine a localization and telemetry device to ensure a continuous and eﬃcient monitoring of the machine usage and use conditions. 10.2.2 Machine Preparation Before to start the kit installation it is mandatory to put the machine in safe condition.
Page 114 ˆ Connect the Transparent Multipole Connector with the Yellow, Gray, and Green wires to the Main card. ˆ Connect the transparent faston connector with orange wire to the XCHG red faston connector. ˆ Connect the red cable with ring, to the red positive of the batteries connected in the emergency button.
Page 115 ˆ Connect the XCBA tripolar cable to the battery charger of the machine. To reach the battery charger, pass the cable in the lower left slot of the main card. ˆ The XCBA cable has to be connected to the battery charger on the data logger connector.
Page 116: Superelastic Wheels Kit - 225735 (Disc)
10.3 Superelastic Wheels Kit - 225735 (Disc) 10.3.1 Description The Superelastic Wheels kit allows to install rubber wheels by replacing the standard antiskid ones, in case of uneven applications to improve the driving comfort. 10.3.2 Machine Preparation Before installing the Superelastic Wheels kit, it is mandatory to put the machine in safe condition. Drain both tanks, turn oﬀ...
Page 117 Hillyard, Inc. Service Manual TRIDENT R30SC-R28SC Hillyard, Inc. 302 North 4th Street - P .O. Box 909 St. Joseph, Missouri 64501 - USA Tel. 1-800-365-1555 - Fax 1-800-881-3840 Edition: August 5, 2019...

This manual is also suitable for:

Trident r30sc plus Trident r28sc plus orbital 108538 108540 108541

Hillyard TRIDENT R30SC Service Manual

Product Introduction

1 General Info

Anomalies Resolution Guide

2 Trouble-Shooting

Functional Groups

3 Electrical System

4 Washing Unit

5 Orbital Unit

6 Vacuum Unit

7 Frame and Traction Unit

8 Water Unit

9 Consumable and Recommended Spare Parts

Accessories and Add-On

10 Accessories

Quick Links

Need help?

Questions and answers

Related Manuals for Hillyard TRIDENT R30SC

Summary of Contents for Hillyard TRIDENT R30SC

This manual is also suitable for:

Table of Contents
