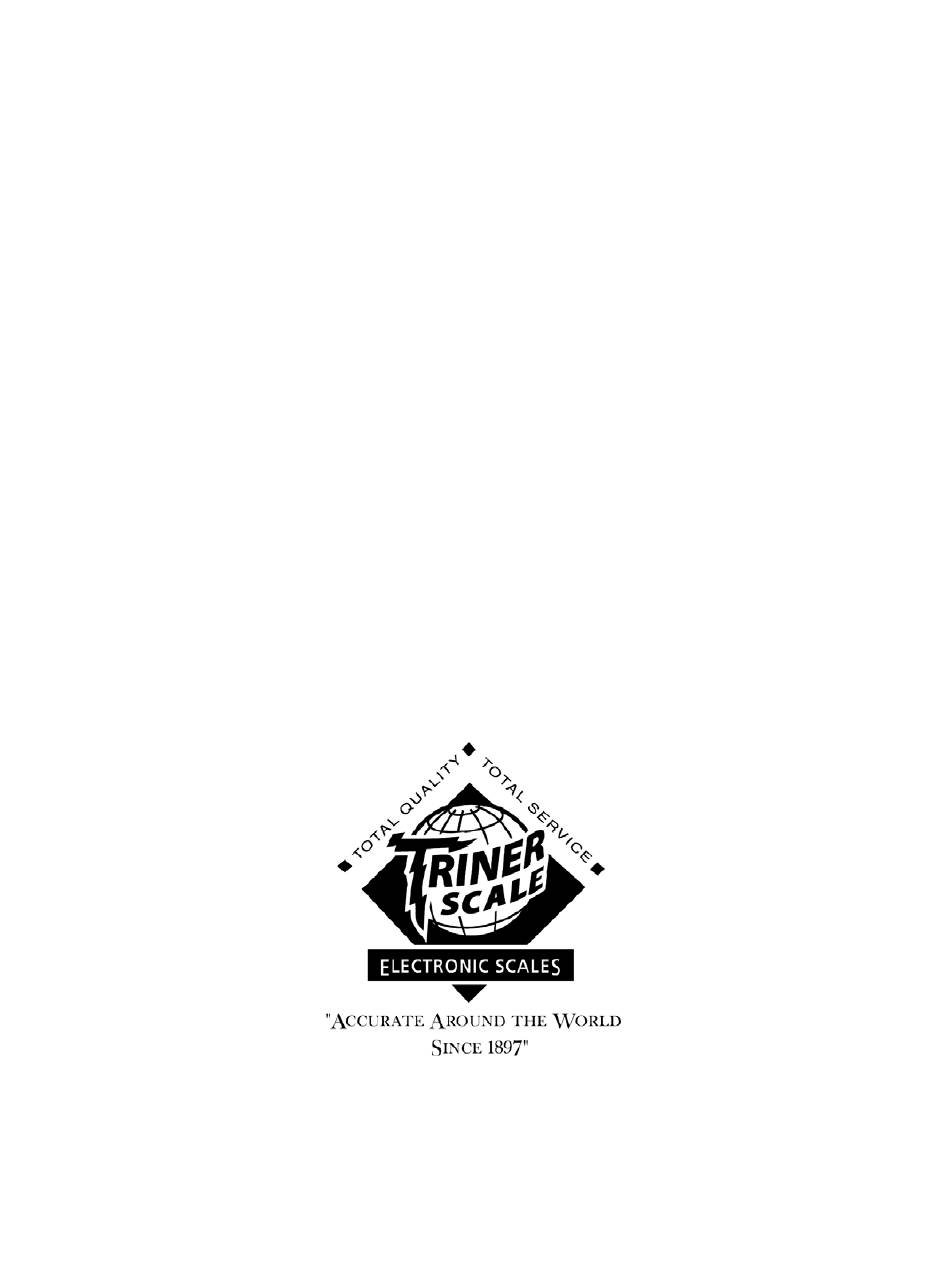

  • Page 1 TS-70MC / MCI Rate Computing Scale Operation Manual Revision 1.2 June 9, 2006...
  • Page 2  2001 Triner Scale & Mfg. Co., Inc Contents subject to change without notice. Triner Scale & Mfg. Co., Inc 8411 Hacks Cross Road Olive Branch, MS 38654-4010 (662) 890-2385 (800) 238-0152 Fax (662) 890-2386 info@trinerscale.com www.trinerscale.com...
  • Page 3 NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause harmful interference to radio com- munications.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Page Chapter 1: Introduction To The Triner Model TS-70MC / MCI Rate Computing Scale ....1-1 Chapter 2: Getting Started ......................2-1 Chapter 3: Basics of Operation ....................... 3-1 Display........................... 3-1 Keyboard ........................3-1 3.2.1 USPS, UPS and FedEx Rate Keys ..............3-1 3.2.1.1...
  • Page 5 Meter Set / Trip Errors..................G-1 G .1.3 Scale Initialization Errors.................. G-2 G.1.4 Setup Mode Errors ................... G-2 LIST OF FIGURES TS-70MC / MCI Back Panel....................2-1 TS-70MC / MCI Display Detail ....................3-1 Rate Keys and Operator Keys Layout ..................3-1...
  • Page 6 INTRODUCTION TO THE TRINER MODEL TS-70MC / MCI POSTAL COM- PUTING SCALE The Triner Model TS-70MC / MCI Digital Postal Computing Scale is designed for mailroom and shipping applications. It is equipped with many helpful features that guide the operator through the day-to-day mailing activities.

  • Page 7: Chapter 2: Getting Started

    ON/OFF CONNECTOR PORT SWITCH Figure 2-1: TS-70MC / MCI Back Panel Step 1. Position the scale in its area of intended use. Observe the following guidelines for suitable location. 1. Choose a firm, stable floor or table. 2. Do not share an AC outlet with electrical noise producing equipment, such as refrigeration units.

  • Page 8: Chapter 3: Basics Of Operation

    $ 8.51 RATE FIGURE 3-1: TS-70MC / MCI Display Detail As shown in Figure 3-1, the scale displays the class of mail, weight, shipping charge (rate) and des- tination zone or country. When additional information is needed, the scale will prompt for the infor- mation.

  • Page 9: Fedex Rate Keys

    • International Airmail - This key is used to select the International Air rates. If an International Surface (economy) rate is already displayed, this key toggles the display to show the International Air rate. • International Economy - This key is used to select the International Economy rates.

  • Page 10: Zip/Zone Key

    • Registered With/Without Postal Insurance - If this service is selected, the scale prompts you to enter the Registered Amount. If the amount entered is 0, the scale will not include postal insurance. If any other amount is entered, the scale includes postal insurance.

  • Page 11: General Scale Operation

    3.3 GENERAL SCALE OPERATION 3.3.1 SYSTEM PROMPTS The TS-70MC / MCI scale prompts for information in three ways. • Numeric Entry - This type of prompt appears as an “Enter Val” message with an equal sign indicating a zero value. Use the numeric keys to enter the requested data and press the ENTER key to complete the entry.

  • Page 12: Entering A Zip Code Or Country Code

    3.3.5 ENTERING A ZIP CODE OR COUNTRY CODE 3.3.5.1 ZIP CODE ENTRY If the method of shipment and/or the weight of the item requires a ZIP Code, the scale will prompt for a ZIP Code entry. • When the scale prompts you for a ZIP Code, enter the three-digit destination ZIP code.

  • Page 13: Chapter 4: Examples Of Operation

    CHAPTER 4: EXAMPLES OF OPERATION 4.1 SENDING A LETTER OR PARCEL BY USPS FIRST CLASS/PRIORITY MAIL 1. 1ST Class Mail (Weight Less Than or Equal To 13 ounces) ACTION DISPLAY EXAMPLE 1. Press the 1 /Priority (5) key. No further action CLASS/CARRIER ZONE/CTRY is necessary.

  • Page 14: Sending An International Air Letter By Usps

    4.2 SENDING AN INTERNATIONAL AIR LETTER BY USPS ACTION DISPLAY EXAMPLE 1. Press the Letter Post Key. CLASS/CARRIER ZONE/CTRY CTY CODE $ 3.00 RATE 2. Using the numeric keys, enter the country code CLASS/CARRIER ZONE/CTRY from Appendix D. In our example, we will CTY CODE choose Canada, which has a country code of 237.

  • Page 15: Sending A Letter By Ups Second Day Air

    4.3 SENDING A LETTER BY UPS SECOND DAY AIR ACTION DISPLAY EXAMPLE 1. Press the UPS 2 Day Air key. CLASS/CARRIER ZONE/CTRY ZIP/ZONE $ 3.00 RATE 2. Enter the first three digits of the destination ZIP CLASS/CARRIER ZONE/CTRY code using the numeric keys. In this example, ZIP/ZONE we will use ZIP code 123.

  • Page 16: Sending A Letter By Federal Express Standard Overnight

    4.4 SENDING A LETTER BY FEDERAL EXPRESS STANDARD OVERNIGHT ACTION DISPLAY EXAMPLE 1. Press the FedEx Standard key. CLASS/CARRIER ZONE/CTRY ZIP/ZONE $ 3.00 RATE 2. Enter the first three digits of the destination ZIP CLASS/CARRIER ZONE/CTRY code using the numeric keys. In this example, ZIP/ZONE we will use ZIP code 123.

  • Page 17: Chapter 5: Advanced Features And Operation

    CHAPTER 5: ADVANCED FEATURES AND OPERATION PIECE COUNTING This function is used to count items of identical weight. To maintain the count accuracy, the llowing guidelines should be followed. • All items placed on the scale must be of the same weight. •...

  • Page 18: C Hapter 6: Setup Operations

    CHAPTER 6: SETUP OPERATION SETUP OPERATION OVERVIEW The system setup consists of three setup areas: Setup Menu, Calibration Menu and Analog to Digital Conversion Diagnostic Menu. SETUP MENU T he Setup Menu is used to configure the Origination ZIP code, Handling Charge and Buzzer setup. 1.

  • Page 19: Buzzer Enable/Disable

    3. Using the numeric keys, enter the desired markup percentage. The scale asks if the percent markup for the displayed rate category is OK. Repeat Step 2. Note: If the desired markup percentage is less than 10, you must press the ENTER key.

  • Page 20: Calibration Menu

    Repeat Step 5. CALIBRATION MENU Your TS-70MC / MCI scale ships from the factory fully calibrated. There is no need to calibrate the scale unless you feel that it has become inaccurate. It is a good idea to check the calibration of your scale from time to time with a precision test weight.

  • Page 21: Postage Meter Setup (Ts-70Mci Only)

    POSTAGE METER SETUP (TS-70MCI ONLY) 6.5.1 METER MODE This function is used to program the meter-operating mode. There are 3 modes to choose from. • “0”= Auto Set: The scale automatically transmits the postage amount to the meter when the weight stabilizes. This is the recommended setting. •...

  • Page 22: Appendix A: Specifications

    APPENDIX A: SPECIFICATIONS CAPACITY: LEGAL-FOR-TRADE OPERATING 0–4 lb x 0.1 oz TEMPERATURE RANGE: 4–70 lb x 0.5 oz 41°F to 95°F (5°C to 35°C) CONSTRUCTION: Housings: Tan ABS POWER SOURCE: Sub-Platform: Metal AC Adapter, 12VDC, 800 mA, Platter: Stainless Steel included Feet: Non-skid Hard Rubber SERIAL PORT:...

  • Page 23: Appendix B: Standard Rates, Special Services And Functions

    APPENDIX B: STANDARD RATES, SPECIAL SERVICES AND FUNCTIONS STANDARD RATES, SPECIAL SERVICES AND FUNCTIONS B.1.1 UNITED STATES POSTAL SERVICE (USPS) • 1st/Priority • Express PO-ADR • Parcel Post • Media • Library • International Airmail – Letter Post, Parcel Post Economy –...

  • Page 24: Appendix C: Rate And Special Service Abbreviations

    APPENDIX C: RATE AND SPECIAL SERVICE ABBREVIATIONS RATE ABBREVIATIONS Display Rate Abbreviation. USPS First 1st Class (<13 oz) USPS 1st Priority (>13 oz) USPS Express PO-ADR USPS Parcel Post PAR POST (PP) USPS Media USPS Library USPS International Air Letter AIR LETTER USPS International Air Parcel Post AIR PARCEL...

  • Page 25: Appendix D: Country Code Chart

    APPENDIX D: COUNTRY CODE CHART TRINER USPS INTERNATIONAL COUNTRY CODE CHART 300 Afghanistan 352 Cyprus 301 Albania 353 Czech Republic 302 Algeria 354 Denmark 303 Andorra 355 Djibouti 304 Angola 356 Dominica 305 Anguilla 357 Dominican Republic 306 Antigua & Barbuda 358 Ecuador 307 Argentina 359 Egypt...
  • Page 26 404 Kiribati 458 Reunion 405 Korea, North 459 Romania 406 Korea, South 460 Russia 407 Kuwait 461 Rwanda 408 Kyrgyzstan 462 St. Christopher & Nevis 409 Laos 463 St. Helena 410 Latvia 464 St. Lucia 411 Lebanon 465 St. Pierre & Miquelon 412 Lesotho 466 St.
  • Page 27 511 Western Samoa 512 Yemen 513 Congo, Dem. Republic of 514 Zambia 515 Zimbabwe Page D-3...

  • Page 28: Appendix E: Country Name Abbreviations

    APPENDIX E: COUNTRY NAME ABBREVIATIONS Country Name Abbr. Country Name Abbr. Afghanistan AFGHANIS Cuba CUBA Albania ALBANIA Cyprus CYPRUS Algeria ALGERIA Czech Republic CZECH RE Andorra ANDORRA Denmark DENMARK Angola ANGOLA Djibouti DJIBOUTI Anguilla ANGUILLA Dominican Republic DOM REP Antigua & Barbuda ANTIGUA Dominica DOMINICA...
  • Page 29 Country Name Country Name Abbr. Abbr. Jordan JORDAN Philippines PHILIPPI Kazakhstan KAZAKHST Pitcairn Islands PITCAIRN Kenya KENYA Poland POLAND Kiribati KIRIBATI Portugal PORTUGAL Kuwait KUWAIT Qatar QATAR Kyrgyzstan KYRGYZST Reunion REUNION Laos LAOS Romania ROMANIA Latvia LATVIA Russia RUSSIA Lebanon LEBANON Rwanda RWANDA...
  • Page 30 Country Name Abbr. United Arab Emirate UNITED A Uruguay URUGUAY Uzbekistan UZBEKIST Vanuatu VANUATU Vatican City VATICAN Venezuela VENEZUEL Vietnam VIETNAM Wallis & Futuna Islands WALLIS & Western Samoa W. SAMOA Yemen YEMEN Zambia ZAMBIA Zimbabwe ZIMBABWE Page E-3...

  • Page 31: Appendix F: Rate Change Information

    APPENDIX F: RATE CHANGE INFORMATION RATE UPDATES Triner updates carrier rate and structure changes. The rates and operating system reside on one Rate Card, which is removable from the scale for reprogramming purposes. 1. Turn the scale’s AC power switch to the off position. 2.

  • Page 32: Appendix G: Error Messages

    APPENDIX G: ERROR MESSAGES ERROR MESSAGES If the scale encounters an error condition, it will display a message alerting the operator. A description of each display follows: G.1.1 OPERATOR ERRORS Message Explanation ovwt Indicates that the weight for the class of service selected has been exceeded underwt Indicates that the weight for the class of service...

  • Page 33: Scale Initialization Errors

    documents "Check Tape Path" Check Tape Path - see PB user/service documents "Command Failed" Communication Failed - see PB user/service documents "Error Code: xxx" Error Code From PB Meter - see PB user / service documents G.1.3 SCALE INITIALIZATION ERRORS MESSAGE EXPLANATION "REMOVE WEIGHT"...
  • Page 34 If you are authorized by Triner Scale to ship the product to Triner Scale for repair, it is your responsibility to securely package the product in its original container or an equivalent and provide proof of the date of original purchase. You will be responsible for shipping costs to Triner Scale repair facility.
