Triner Scale TSM5-28-LS Installation Manual

Livestock alleyway scale
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

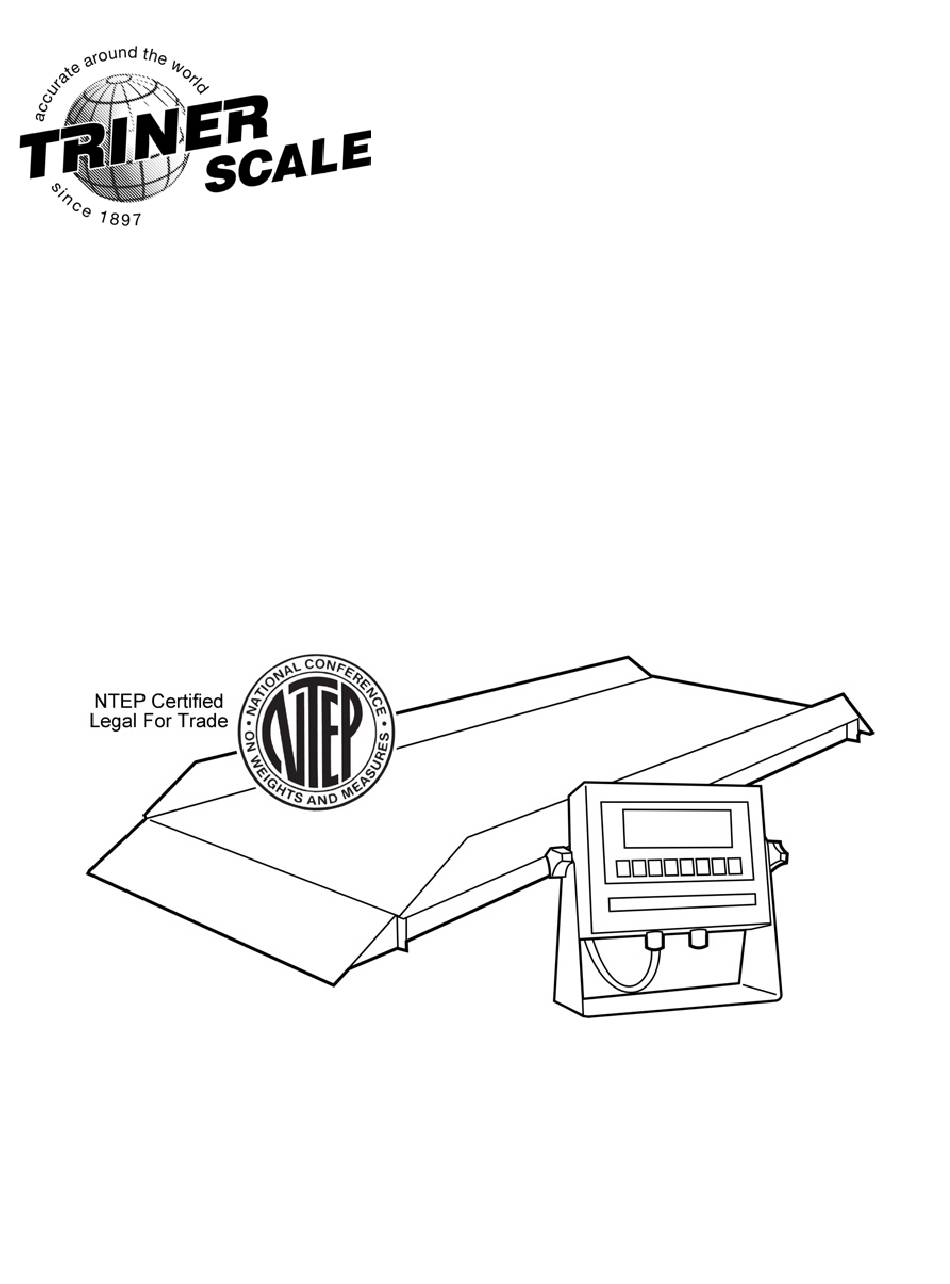

TSM5-28-LS
Livestock Alleyway Scale
Installation Manual
Version 1.0
05/23/12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSM5-28-LS and is the answer not in the manual?

Questions and answers

Related Manuals for Triner Scale TSM5-28-LS

Summary of Contents for Triner Scale TSM5-28-LS

  • Page 1 TSM5-28-LS Livestock Alleyway Scale Installation Manual Version 1.0 05/23/12...
  • Page 2 ©Triner Scale & Mfg. Co, Inc. 2011. All rights reserved. The information contained herein is the property of Triner Scale and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorized by contract or other written permission. The copyright and the foregoing restriction on reproduction and use extend to all media in which the information may be embodied.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Page Chapter 1: Introduction ........................ 1-1 Unpacking........................1-1 Chapter 2: Platform Installation ....................2-1 Site Preparation......................2-1 Installing and Leveling the Platform ................2-1 Chapter 3: Connecting the Digital Indicator to the Platform ........... 3-1 Connecting the TS-700 SS Digital Indicator ..............3-1 Appendix A: Troubleshooting and Periodic Maintenance ............

  • Page 4: Chapter 1: Introduction

    INTRODUCTION The TSM5-28-LS scale is a fully electronic weighing system, engineered for years of reliable service. It has four corner-mounted NTEP approved loadcells that are recessed into the scale frame for protection. Also included is a signal-trim summing board enclosed in a watertight junction box.

  • Page 5: Chapter 2: Platform Installation

    PLATFORM INSTALLATION After unpacking the scale, a small amount of preparation is required before the scale can be used for weighing. Site Preparation The scale should not be loaded beyond its capacity. Do not select a site where overweight loads would have to cross the platform. Avoid areas where the scale might receive damaging side impacts from wheels or forklift tines.

  • Page 6: Chapter 3: Connecting The Digital Indicator To The Platform

    CONNECTING THE DIGITAL INDICATOR TO THE PLATFORM The TSM5-28-LS Scale is generally purchased with the TS-700 SS digital indicator. This section covers connecting the TS-700 SS digital indicator with the Alleyway weighing platform. The scale interface cable is pre-wired to the TS-700 SS digital indicator.
  • Page 7 5. To connect the wires to the terminals, follow the instructions below: a. Using a small Flat head screwdriver, loosen the terminal screws. This will open the terminal clamps so that you can insert the wire. b. Carefully insert the bare end of the wire between the terminal clamps. c.
  • Page 8 8. Replace the junction box cover. 9. Replace the junction box access plate. 10. Connect the AC adapter to the indicator and then to the wall outlet. If the unit has and AC power cord, connect it to the wall outlet. 11.

  • Page 9: Appendix A: Troubleshooting And Periodic Maintenance

    APPENDIX A: TROUBLESHOOTING AND PERIODIC MAINTAINANCE A.1 Troubleshooting Guide Problem Possible Problem and Corrective Action The system does not Power disconnected or bad power supply: Check outlet • operate – No Display first. Test the AC adapter or power supply. Indicator fuse blown: Replace fuse, check for cause.

  • Page 10: Periodic Maintenance

    A.2 Periodic Maintenance The TSM Series Low Profile Scale is designed and engineered to require very little maintenance. Follow the basic guidelines below: 1. Periodically clean any debris from under and around the scale. If debris such as broken wood from pallets wedges between the scale platform and the ground or a ramp, erratic weights will result.

  • Page 11: Appendix B: Parts List

    APPENDIX B: PARTS LIST Part Description Part Number Four load cell steel NEMA 4x junction box JBOX assembly with signal trim summing card 1/2 –20 precision ball and cup leveling foot FOOT07 2.5k (2,500 lb) Sheerbeam load cell LC002 5k (5,000 lb) Sheerbeam load cell LC004 Load cell Bolt M12 x 1.75 x 50mm LCB01...
  • Page 12 (90) day period will be charged to you. If you are authorized by Triner Scale to ship the product to Triner Scale for repair, it is your responsibility to securely package the product in its original container or an equivalent and provide proof of the date of original purchase.
