Triner Scale TS60-1010 Assembly Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

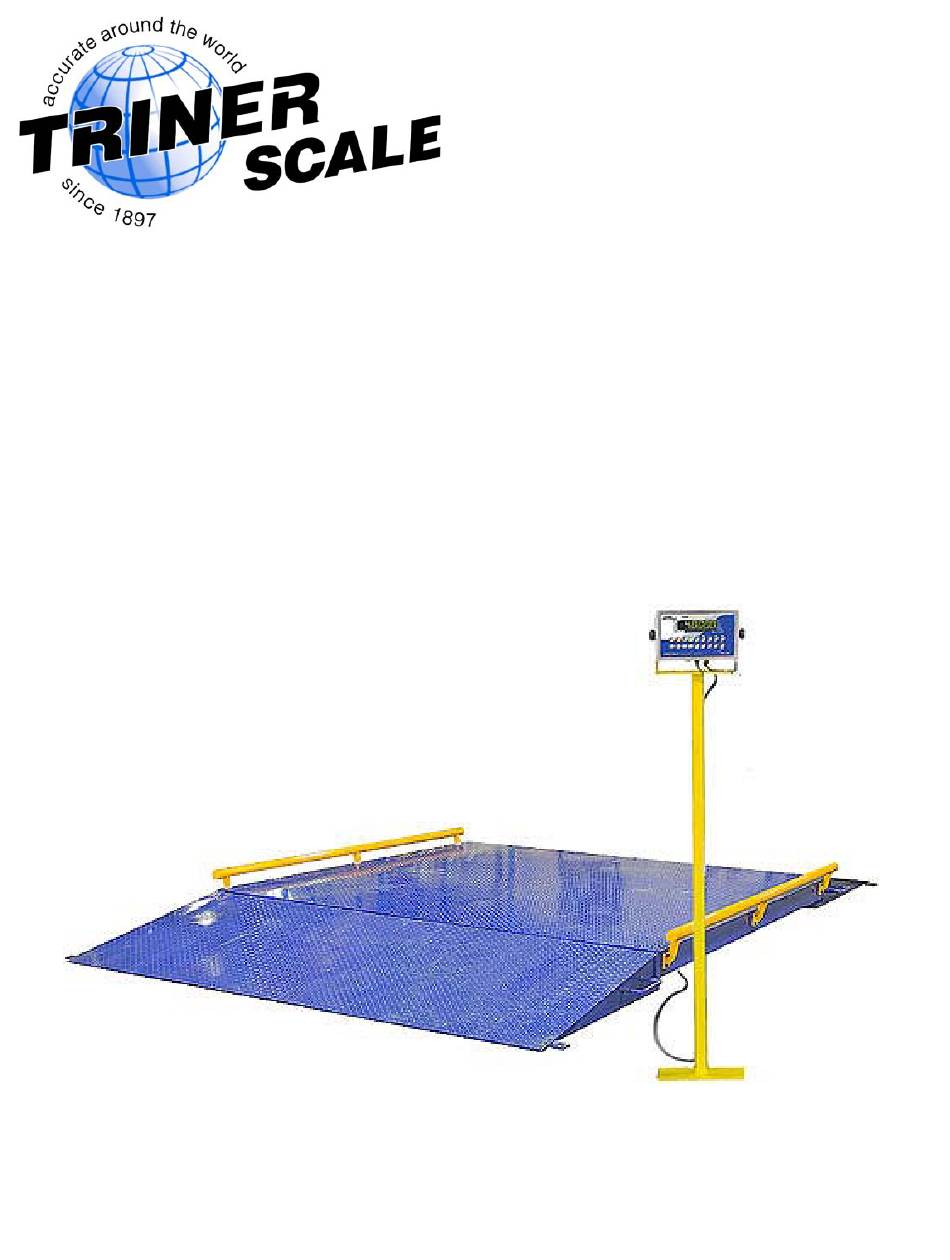

ASSEMBLY GUIDE
TS60-1010 Platform Scale
Series 2
V 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS60-1010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Triner Scale TS60-1010

Summary of Contents for Triner Scale TS60-1010

  • Page 1 ASSEMBLY GUIDE TS60-1010 Platform Scale Series 2 V 2.0...

  • Page 2: Table Of Contents

    15) Bolt Down the Four Deck Top Access Panels ..............7 16) Bolt Down the Indicator Stand to the Concrete Floor ............7 © Triner Scale & Mfg. Co., Inc. All rights reserved. Cannot be copied in whole or part without permission.

  • Page 3: Cautions And Disclaimers

    Not Responsible For Any Personal or Property Damage: Correct assembly and correct use of the scale is the user’s responsibility. Triner Scale is not responsible for any personal or property damage incurred during assembly of the scale, or during use of the scale.

  • Page 4: Tools Required For Assembly

    Assembly Guide TS60-1010 Platform Scale Tools Required For Assembly Forklift Impact Wrench 19mm Socket Wrench 30mm Socket Wrench 5 lb Rubber Mallet Long pry bar 5/16” Allen wrench Standard Size Flat Head Screw Driver Small Flat Head Screw Driver Hammer Drill: ¾” bit & ½” bit...

  • Page 5: Assembling The Scale

    Assembly Guide TS60-1010 Platform Scale ASSEMBLING THE SCALE IMPORTANT! Before beginning with assembly of the scale, thoroughly read and understand this Assembly Guide. Review the illustration Figures 1a and 1b in the Appendix section. Become familiar with the basic configuration of the weighing deck and the identifying markings on the components.

  • Page 6: Route The Six Load Cell Cables Out The Left Side Rail Cable Exit Hole

    Assembly Guide TS60-1010 Platform Scale Forklift Weighing Deck #1 into position between the rails, and gently lower the deck down onto the wooden blocks. Be sure to accurately line up the front edge of the deck to the front edge of both side rails.

  • Page 7: Attach And Securely Fasten The Two Guard Rails

    Assembly Guide TS60-1010 Platform Scale around the scale, alternating from side to side in order to gradually bring all components together in a proper fit. Before final tightening, loosely bolt down the top plate, then fully tighten after the rail/platform bolts have been secured.

  • Page 8: Attach The Ramps To The Weighing Base

    Assembly Guide TS60-1010 Platform Scale 11) Attach the Ramps to the Weighing Base SYNOPSIS: The ramps are placed into position at the end of the weighing deck, then the weighing deck is lowered to the floor, one corner at a time. The two load cell feet at the end of the weighing deck fit into holes in the ramp tabs, as shown in Fig.

  • Page 9: Bolt Down Both Ramps To The Concrete Floor

    Assembly Guide TS60-1010 Platform Scale 14) Bolt Down Both Ramps to the Concrete Floor Using a hammer drill, drill 3/4” holes into the concrete for anchoring the floor mounting tabs to the floor. Use the provided concrete anchors and securely fasten all four ramps tabs to the floor.
  • Page 10 Assembly Guide TS60-1010 Platform Scale Appendix Figure 1a COMPLETE ASSEMBLY...
  • Page 11 Assembly Guide TS60-1010 Platform Scale Appendix Figure 1b WEIGHING DECK ASSEMBLY...
  • Page 12 Assembly Guide TS60-1010 Platform Scale Appendix Figure 1c RAMP MOUNTING TABS AND HANDLING PRECAUTIONS...
  • Page 13 Assembly Guide TS60-1010 Platform Scale Appendix Figure 2 PLACE SIDE RAILS ONTO WOOD BLOCKS Figure 3 PLACE THE FIRST DECK INTO POSITION AND LOOSELY BOLT TO SIDE RAILS...
  • Page 14 Assembly Guide TS60-1010 Platform Scale Appendix Figure 4 ONLY USE SHORT BOLTS NEXT TO LOAD CELLS Figure 5 ROUTING THE LOAD CELL CABLES...
  • Page 15 Assembly Guide TS60-1010 Platform Scale Appendix Figure 6 PLACE THE SECOND DECK INTO POSITION AND LOOSELY BOLT TO SIDE RAILS...
  • Page 16 Assembly Guide TS60-1010 Platform Scale Appendix Figure 7 JUNCTION BOX, Wiring Diagram...
  • Page 17 Assembly Guide TS60-1010 Platform Scale Appendix Figure 8 JUNCTION BOX, Attached at Side Rail #1 Figure 9 ALIGN RAMP TAB TO WEIGHING DECK LOAD CELL FOOT viii...
  • Page 18 Assembly Guide TS60-1010 Platform Scale Appendix Figure 10 MOVE RAMP INTO POSITION UNDER WEIGHING DECK LOAD CELL FOOT Figure 11 FULLY ASSEMBLED SCALE...
  • Page 19 LIMITED WARRANTY What is Covered: Triner Scale & Mfg. Co. Inc. warrants to the first end user customer of the Triner Scale product enclosed with this limited warranty statement that the product, if purchased and used in the United States, conforms to the manufacturer’s specifications and will be free from defects in workmanship and materials for a...
