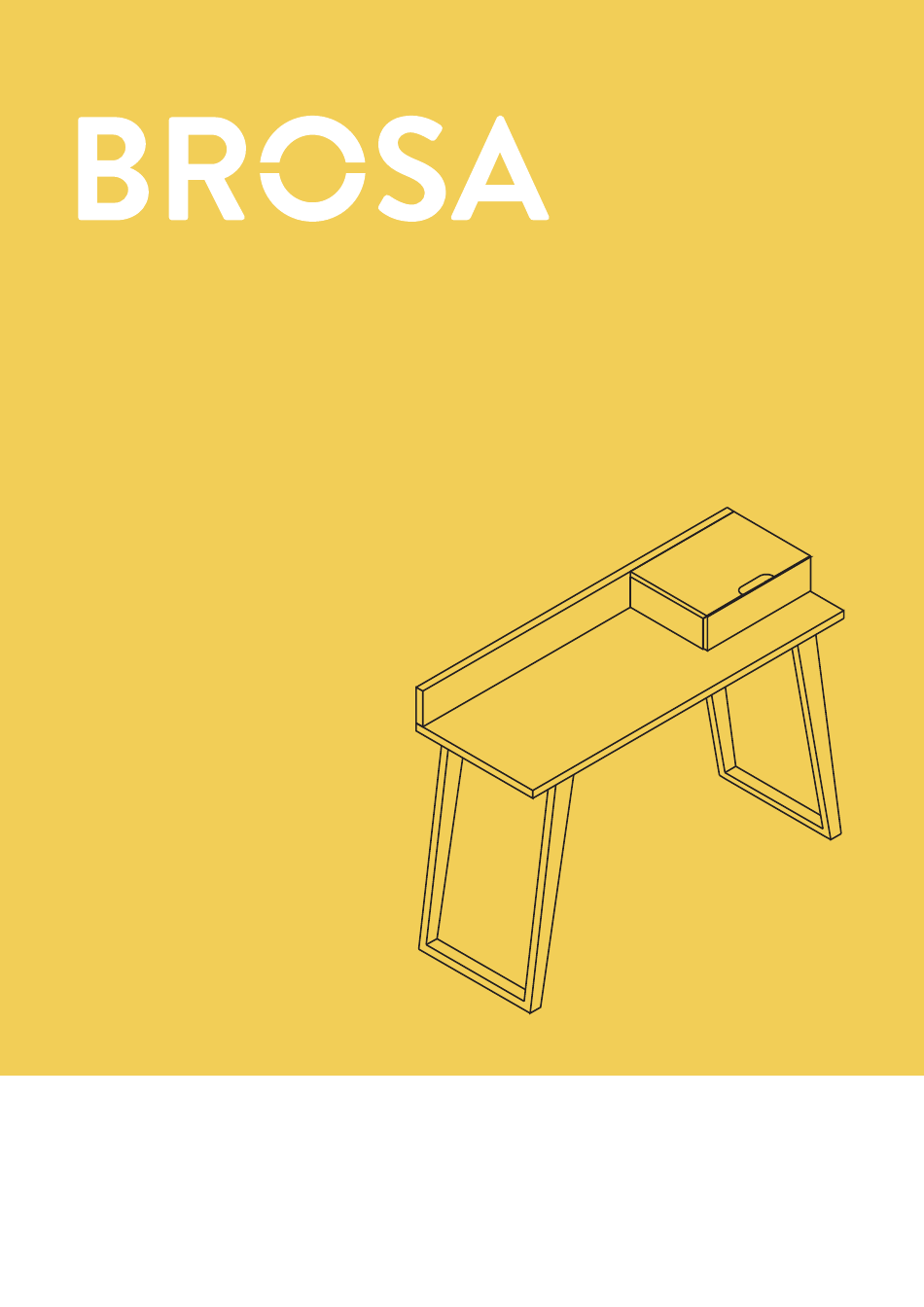

- Page 1 ASSEMBLY GUIDE Nancy Desk...
-
Page 2: What You Need
Components Before you get started, check you have all of the pieces below. If anything’s missing, please visit www.brosa.com.au/pages/product-return-and-parts-request and we’ll sort it out right away. Body x 1 Legs x 2 Hardware A x 14 (Bolt) B x 14 (Washer) - Page 3 Align a leg to the underside of the body so that the screw Step 1 holes are overlapping. Fit a washer to a bolt and screw into a hole using a screwdriver. Repeat for the other holes then for the second leg. Cover the bolt holes with the plastic caps (C).
- Page 4 Align the drawer slides with the corresponding holes Step 2 on the side walls. Secure into place using at end screws (D). D x 6 Use the pointed end screws to secure the slides. Step 3 E x 4...
- Page 5 Align the end hole on the drawer with the hook on the Step 4 slide and insert the drawer halfway into the cabinet. Pull the side lock out. Step 5...
- Page 6 Alight the vertical knob on the slide with the hole on Step 6 the drawer and lift the drawer down. Push back the side lock to x the drawer to the slide Step 7 and close the drawer.
- Page 7 Reverse those steps to remove the drawer from the Step 8 storage. Open the drawer, pull the side lock out and take out the drawer. Step 8.1 Step 8.3 Step 8.2 Step 8.4...
- Page 8 Rotate the knob on the side of the drawer to adjust Step 9 the angle. ±2mm...
- Page 9 Place the desk upright on a level surface. Enjoy your Step 10 new desk!
