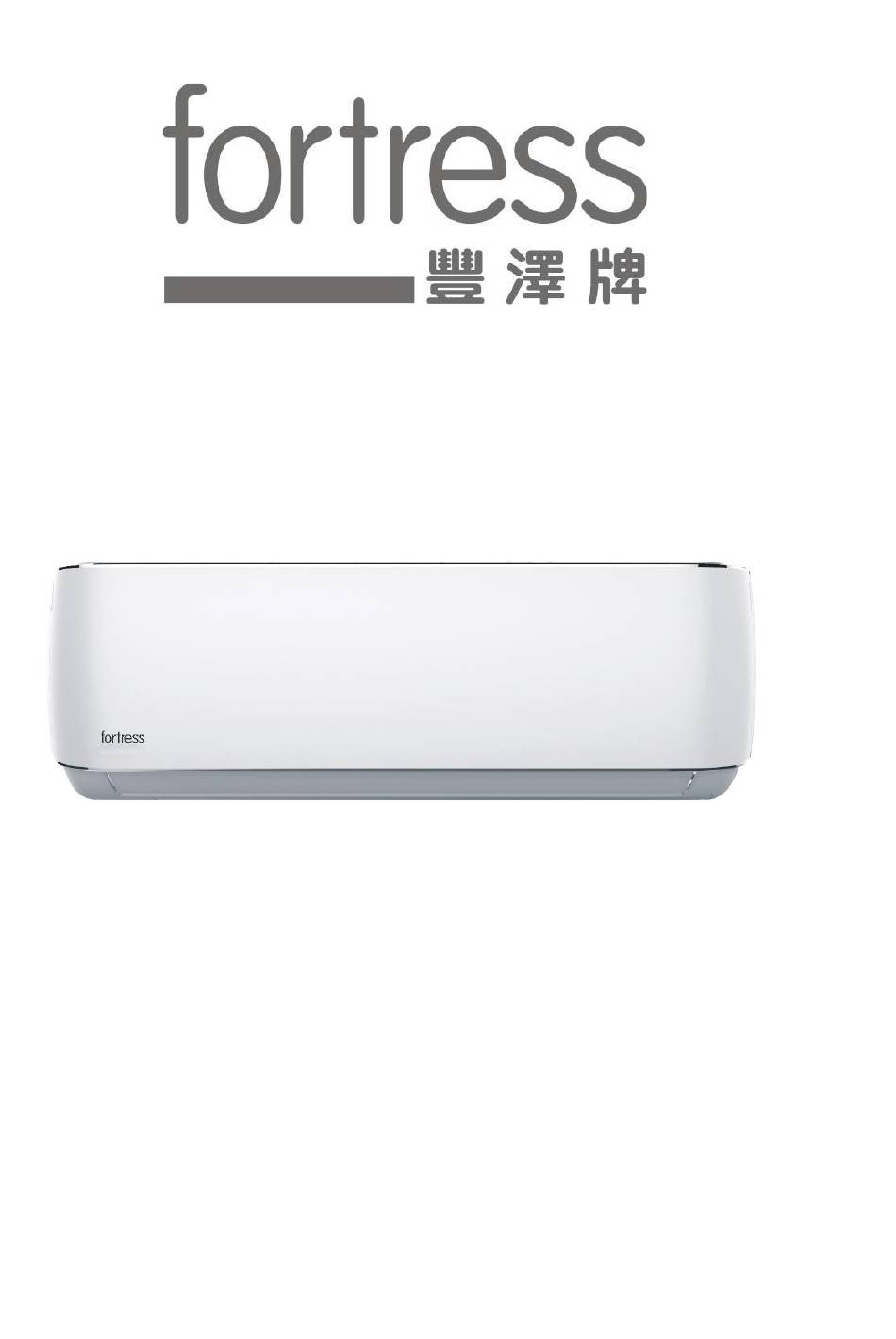

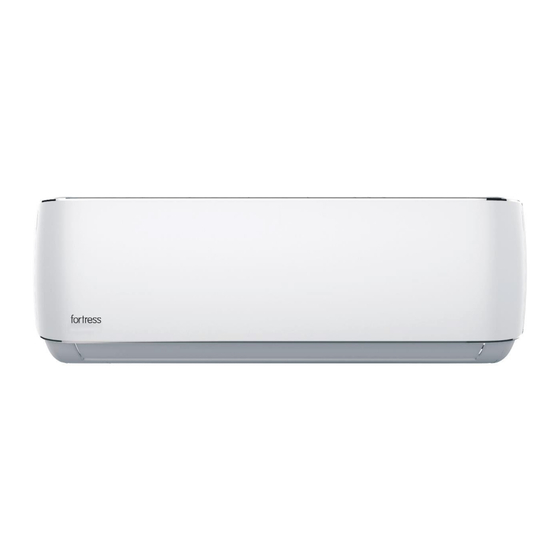

- Page 1 Inverter Split Air Conditioner User Manual Model: FSAV09M19 FSAV11M19 *Before operating or installing the appliance, please read this manual and all the safety instructions thoroughly and retain it for future reference.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTION ……………………………………………………………… 2 PARTS DESCRIPTION ……………………………………………………………… 4 OPERATION INSTRUCTION ………………………………………………………… 6 MAINTENANCE INSTRUCTION …………………………………………………..8 TROUBLESHOOTING…………………………………………………………………10 SPECIFICATIONS……………………………………………………………………..11 WARRANTY…………………………………………………………………………….12 Read This User Manual You can find many helpful information on how to use and maintain the air conditioner properly. Just a little preventive care on the parts can extend the life of the air conditioner. Read the troubleshooting tips before call the service center. -
Page 3: Safety Instruction
SAFETY INSTRUCTION Please follow below instructions to prevent injury and property damage. Meanings of symbols in this user manual. -
Page 5: Parts Description
PARTS DESCRIPTION Indoor unit 1. Front panel 2. Air inlet 3. Air filter 4. Air outlet 5. Horilouver zontal 6. Vertical louver 7. Display panel Outdoor unit 8. Connection pipe 9. Connection cable 10. Pressure valve NOTE: All the pictures in this manual are for explanation purposes only. - Page 6 Special functions Refrigerant Leakage Detection The digital display will appear when the outdoor unit detects refrigerant leakage. SELF CLEAN (Anti-mildew function) When turning off the unit on COOL, DRY mode, the air conditioner will continue operating for about 7-10 minutes at LOW fan speed. This will help to dry up the condensed water inside the evaporator, and prevent the breeding of mildew.
-
Page 7: Operation Instruction
OPERATION INSTRUCTIONS Operating temperature Mode COOL Temperature Room temperature 17° C~32° C 10° C~32° C Outdoor temperature 0° C~50° C 0° C~50° C NOTE： 1. Optimum performance will be achieved within these operating temperatures. If the air conditioner is used out of the above conditions, certain safety protection features may come into operation and cause the unit to function abnormally. - Page 8 Air flow direction control Adjust the air flow direction properly, otherwise it might cause discomfort or cause uneven room temperatures. Adjust the horizontal louver by using the remote controller. Adjust the vertical louver manually. To set the vertical air flow direction ...
-
Page 9: Maintenance Instruction
AUTO mode When you set the air conditioner in AUTO mode, it will automatically select COOL or FAN mode operation depending on the temperature you have selected and the room temperature. The air conditioner will control the room temperature automatically around the temperature point set by you. - Page 10 2. Hold the handle of the air filter and lift it up slightly to take it out from the filter holder, then pull it downwards. 3. Remove the air filter from the indoor unit. 4. Remove the air filter and air freshening filter from its support frame.
-
Page 11: Troubleshooting
TROUBLESHOOTING The following events may occur during normal operation. 1. Compressor protection The compressor cannot restart for 3-4 minutes after it stops. 2. White mist coming out from the indoor unit White mist may come out due to a large temperature difference between the air inlet and air outlet on COOL mode in an indoor environment that has a high relative humidity. -
Page 12: Specifications
Be sure to inform them of the detailed malfunctions and the unit model. Notes: Do not attempt to repair the unit yourself. Always consult an authorized service provider. SPECIFICATIONS BODY DIMENSION(mm) WIRING SIZE （W × H × D） TYPES (mm ² ) INDOOR OUTDOOR ≥3*1.5 FSAV09M19 802x189x297 682x418x343 ≥3*1.5 FSAV11M19 802x189x297 682x418x343... -
Page 13: Warranty
WARRANTY 1. The product has 2 years warranty from the date of purchase. 2. The warranty shall not apply: A. To any product subjected to misuse, alteration, act of God, improper handling, improper transport, improper testing or unauthorized repair; B. to cosmetic problems or defects which result from normal wear and tear under ordinary use yet not affecting the performance or use of the product;...
