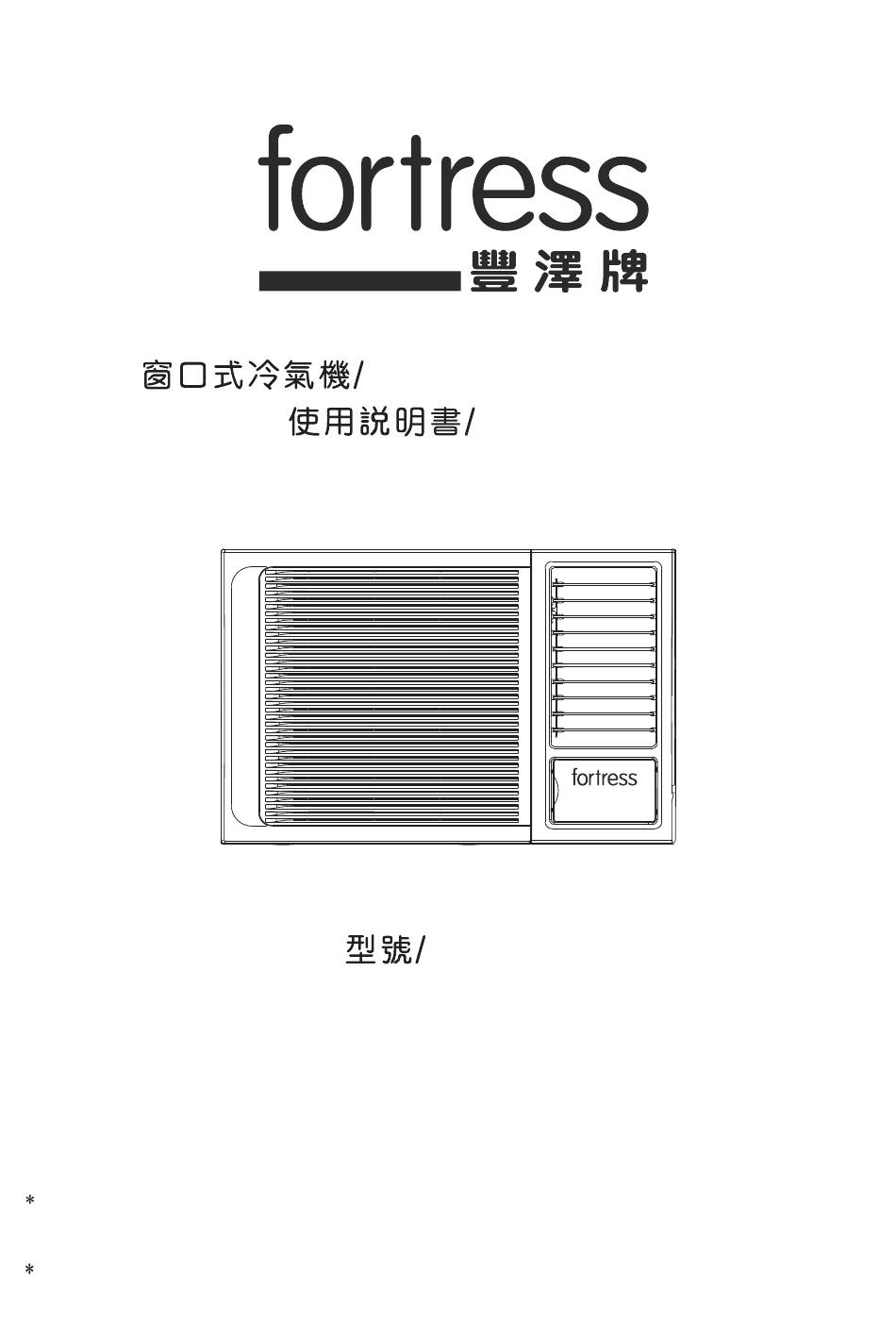

- Page 1 Window Type Air Conditioner User Manual Model FWAD08M16 FWAD10M16 FWAD13M16 FWAD19M16 使用或安裝本產品前，請仔細閱讀本說明書，及所有安全注意事項， 並請妥善保存，以備日後參考查閱。 Before operating or installing the appliance, please read this manual and all the safety instructions thoroughly and retain it for future reference.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTION..............2 PARTS DESCRIPTION..............5 OPERATION INSTRUCTION ............6 INSTALLATION INSTRUCTION............13 TROUBLESHOOTING ..............16 SPECIFICATIONS................17 WARRANTY ..................18 Read This User Manual You can find many helpful information on how to use and maintain the air conditioner properly. Just a little preventive care on the parts can extend the life of the air conditioner. Read the troubleshooting tips before call the service centre. -
Page 3: Safety Instruction
SAFETY INSTRUCTION Please follow below instructions to prevent injury and property damage. Meanings of symbols in this user manual. Never do this. Always do this. WARNING Do not put the power cord near Close the door while the Do not damage or use an flammable gas or combustibles, such unspecified power cord. - Page 4 ! CAUTION When remove the air filter, Ventilate the room well when Do not clean the air do not touch the metal parts used together with a stove, conditioner inner with water. of the unit. etc. It may cause an injury. An oxygen shortage may occur.
- Page 5 SAFETY INSTRUCTION Before operation 1. Contact an installation specialist for installation. 2. Do not use a damaged or non-standard power cord. 3. Do not share the same outlet with other appliances. Usage 1. Exposure to direct airflow for a long period of time could be hazardous to the health.
-
Page 6: Parts Description
PARTS DESCRIPTION NOTE: The front panel and cabinet may be slightly different according to the models, but the functions are the same. The following illustration is for explanation purpose only, the actual shape of the machine may be slightly different. 1. -
Page 7: Operation Instruction
OPERATION INSTRUCTION Control Panel The control panel will look like the following: NOTE: The outline of the operation panel is based on typical model, the function is same with the actual machine even some differences may exist in appearance. Vent Control The vent control is located above the control panel. - Page 8 OPERATION INSTRUCTION OPERATION INSTRUCTION POWER: Press the POWER button to turn the unit on/off. (The TIMER button controls the auto stop feature of the unit.) MODE: Press the MODE button to select the appropriate operating mode. The mode selection including AUTO, COOL, FAN and DRY. The green indicator light beside the "MODE" button will illuminate to identify the mode selected.
- Page 9 OPERATION INSTRUCTION DRY: In the DRY mode, the air conditioner will generally operate in the form of a dehumidifier. COOL: The temperature setting are adjustable between 17 C to 30 C . Cooling begins auto- matically when the room temperature is 1 C above the set point, and stops when the room temperature is 1 C below the set point.
- Page 10 REMOTE CONTROL OPERATION CAUTIONS Use the remote control within a distance of 5 meters from the air conditioner. A sound of beep will be generated by the air conditioner when signals received. Never immerse the remote control in water or other liquids. Do not put it under direct sunshine. If the signal receiver on the air conditioner is exposed to direct sunshine, the air conditioner may be not function properly.
- Page 11 REMOTE CONTROL DISPLAY Indicators on LCD MODE display Transmission Indicator This transmission indicator will light when remote control transmits signals to the main unit. Temp./Timer display The temperature setting (from 17 C to 30 C) or timer setting (0~24h) will be displayed. If FAN mode is selected, there will be no display.
- Page 12 OPERATION INSTRUCTION CAUTION NEVER operate the air conditioner without the air filter, as dust/dirt particles can cause equipment failure. CONTROL PANEL COVER Close the control panel cover and press the Grasp the right of the control panel cover and right of the cover again until it snaps into the pull it upwards to open it .
- Page 13 Drainage Back Drainage Different requirement for different type of air conditioner, there are two methods to treat the condensed water. See the following procedures to perform back drainage: 1. Fit the seal onto the drain joint (which is provided with the air conditioner accessory).
-
Page 14: Installation Instruction
INSTALLATION INSTRUCTION Select the best location AWNING AWNING FENCE FENCE About 10mm About 10mm Over 50cm Over 50cm 1. To avoid vibration and noise, make sure the unit is installed securely and firmly. 2. Install the unit where the sunlight does not shine directly. If the unit is installed under direct sunlight, build an awning to shade the cabinet. - Page 15 Installation of the Cabinet NOTE: UNIT CAN BE SUPPORTED BY A SOLID FRAME FROM BELOW OR BY A HANGER FROM A SOLID Step 1 OVERHEAD SUPPORT. Remove the air conditioner from the package, remove fixing FLASH OR SEAL AROUND EXTERNAL screws and slide the air conditioner out from the cabinet (Refer WALL FRAME OR ARCHITRAVE to Installation Steps).
- Page 16 Installation Steps Step 1. Remove the front panel and the air filter 1. Hold the tabs under the front panel, then uplift it outwards, and remove the front panel (See Fig.1). 2. Pinch the handle under the air filter and make the air filter arched, remove it from the slot from underside to upside (See Fig.2).
-
Page 17: Troubleshooting
TROUBLESHOOTING Please review the chart first before you call for service. Normal Operation You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high. You may hear the thermostat click when the compressor turns on and off. Water will be collected in the base pan during high humidity or on rainy days .The water may overflow and drip from the outdoor side of the unit. -
Page 18: Specifications
SPECIFICATIONS BODY DIMENSION(mm) WIRING SIZE TYPES(Btu/h) (W x H x D) (mm ) 450x346x585 ≥3*1.0 ≤9000 600x380x560 ≥3*1.5 > 9000 and ≤12000 660x428x680 ≥3*2.5 ≥18000... -
Page 19: Warranty
WARRANTY The product has 3 years warranty from the date of purchase. The warranty shall not apply: A. to any product subjected to misuse, alteration, act of God, improper handling, improper transport, improper testing or unauthorized repair; B. to cosmetic problems or defects which result from normal wear and tear under ordinary use yet not affecting the performance or use of the product;...
