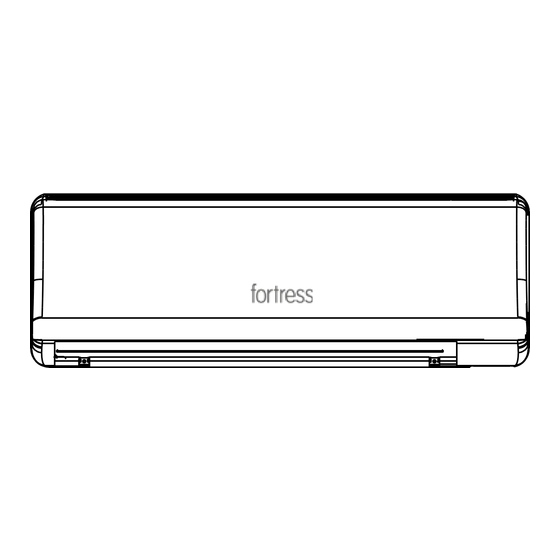

- Page 1 Model: FSAV10M16 FSAV13M16 FSAV19M16 * Before operating or installing the appliance, please read this manual and all the safety instructions thoroughly and retain it for future reference.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTION ..............2 PARTS DESCRIPTION ..............4 OPERATION INSTRUCTION ............6 MAINTENANCE INSTRUCTION ............9 TROUBLESHOOTING ..............11 SPECIFICATIONS ................13 WARRANTY ..................14 Read This User Manual You can find many helpful information on how to use and maintain the air conditioner properly. Just a little preventive care on the parts can extend the life of the air conditioner. Read the troubleshooting tips before call the service centre. -
Page 3: Safety Instruction
SAFETY INSTRUCTION Please follow below instructions to prevent injury and property damage. Meanings of symbols in this user manual. Never do this. Always do this. WARNING It may cause death or serious injury Do not put the power cord near Close the door while the Do not damage or use an flammable gas or combustibles, such... - Page 4 ! CAUTION It may cause injury or damage to property When remove the air filter, Ventilate the room well when Do not clean the air do not touch the metal parts used together with a stove, conditioner inner with water. of the unit.
-
Page 5: Parts Description
PARTS DESCRIPTION Indoor unit Indoor unit 1. Front panel 2. Air inlet 3. Air filter 4. Air outlet 5. Horizontal louver 6. Vertical louver 7. Display panel Outdoor unit 8. Connection pipe Outdoor unit 9. Connection cable 10. Pressure valve NOTE: All the pictures in this manual are for explanation purposes only. - Page 6 Special functions Refrigerant Leakage Detection The digital display will appear EC when the outdoor unit detects refrigerant leakage. SELF CLEAN (Anti-mildew function) When turning off the unit on COOL, DRY mode, the air conditioner will continue operating for about 7-10 minutes at LOW fan speed. If turning off the unit on HEA T mode, it will continue operating for about 30 seconds at LOW fan speed.
-
Page 7: Operation Instruction
OPERATION INSTRUCTIONS Operating temperature Mode COOL HEAT Temperature Room temperature 17 C~32 C 0 C~30 C 10 C~32 C Outdoor temperature NOTE: 1. Optimum performance will be achieved within these operating temperatures.If the air conditioner is used out of the above conditions, certain safety protection features may come into operation and cause the unit to function abnormally. - Page 8 Air flow direction control Adjust the air flow direction properly. Otherwise might cause discomfort or cause uneven room temperatures. Adjust the horizontal/vertical louver by the remote control. To set the horizontal/vertical air flow direction Perform this function while the unit is in operation. Range (Horizontal louver) Use the remote control to adjust the air flow direction.
-
Page 9: Cool Mode
AUTO mode When you set the air conditioner in AUTO mode, it will automatically select COOL, HEAT or FAN mode operation depending on the temperature you have selected and the room temperature. The air conditioner will control the room temperature automatically around the temperature point set by you. -
Page 10: Maintenance Instruction
MAINTENANCE INSTRUCTION Cleaning the Grille, Case and Remote Control Turn the unit off before cleaning. To clean and wipe with a soft and dry cloth. Do not use bleach or abrasives. NOTE: Supply power must be disconnected before cleaning the indoor unit. CAUTION Wipe the indoor unit with a dry cloth if it is dirty. - Page 11 4. Remove the air filter and air freshening filter from its support frame. (The air freshening filter include : Tea polyphenols / Cold catalyst filter . The removing and installation methods are slightly different, see the pictures marked on the left. (Clean the air freshening filter at least once a month is recommended.) 5.
-
Page 12: Troubleshooting
TROUBLESHOOTING The following events may occur during normal operation. 1. Compressor protection The compressor cannot restart for 3-4 minutes after it stops. 2. Defrosting Frost may be generated on the outdoor unit during heat cycle when the outdoor temperature is low and the humidity is high resulting in lower heating efficiency of the air conditioner. - Page 13 8. The air conditioner runs Anti-mildew function after turning off the unit. When turning off the unit under COOL and DRY mode, the air conditioner will run Anti-mildew function for 7-10 minutes. If turning off the unit when HEAT mode, the unit will continue operating for about 30 seconds at LOW fan speed, then the operation will be stopped and the unit will turn off automatically.
-
Page 14: Specifications
Notes: Do not attempt to repair the unit yourself. Always consult an authorised service provider. SPECIFICATIONS BODY DIMENSION(mm) (W x H x D) WIRING SIZE TYPES (mm ) INDOOR OUTDOOR 835x280x198 > FSAV10M16 770x555x300 3*1.0 835x280x198 > FSAV13M16 3*1.0 770x555x300 800x554x333 990x315x218 > 3*1.5... -
Page 15: Warranty
WARRANTY 1.The product has 2 years warranty from the date of purchase. 2.The warranty shall not apply: A.to any product subjected to misuse, alteration, act of God, improper handling, improper transport, improper testing or unauthorized repair; B.to cosmetic problems or defects which result from normal wear and tear under ordinary use yet not affecting the performance or use of the product;... - Page 16 FSAV10M16 FSAV13M16 FSAV13M16...
- Page 20 Defrost (Run) (Timer)
- Page 21 7-10...
- Page 22 17 C~32 C 0 C~30 10 C~32 0 C~50 C -15 C~30 0 C~50...
- Page 27 4-10...
- Page 28 7-10 >80%...
- Page 32 16122000A26102...
