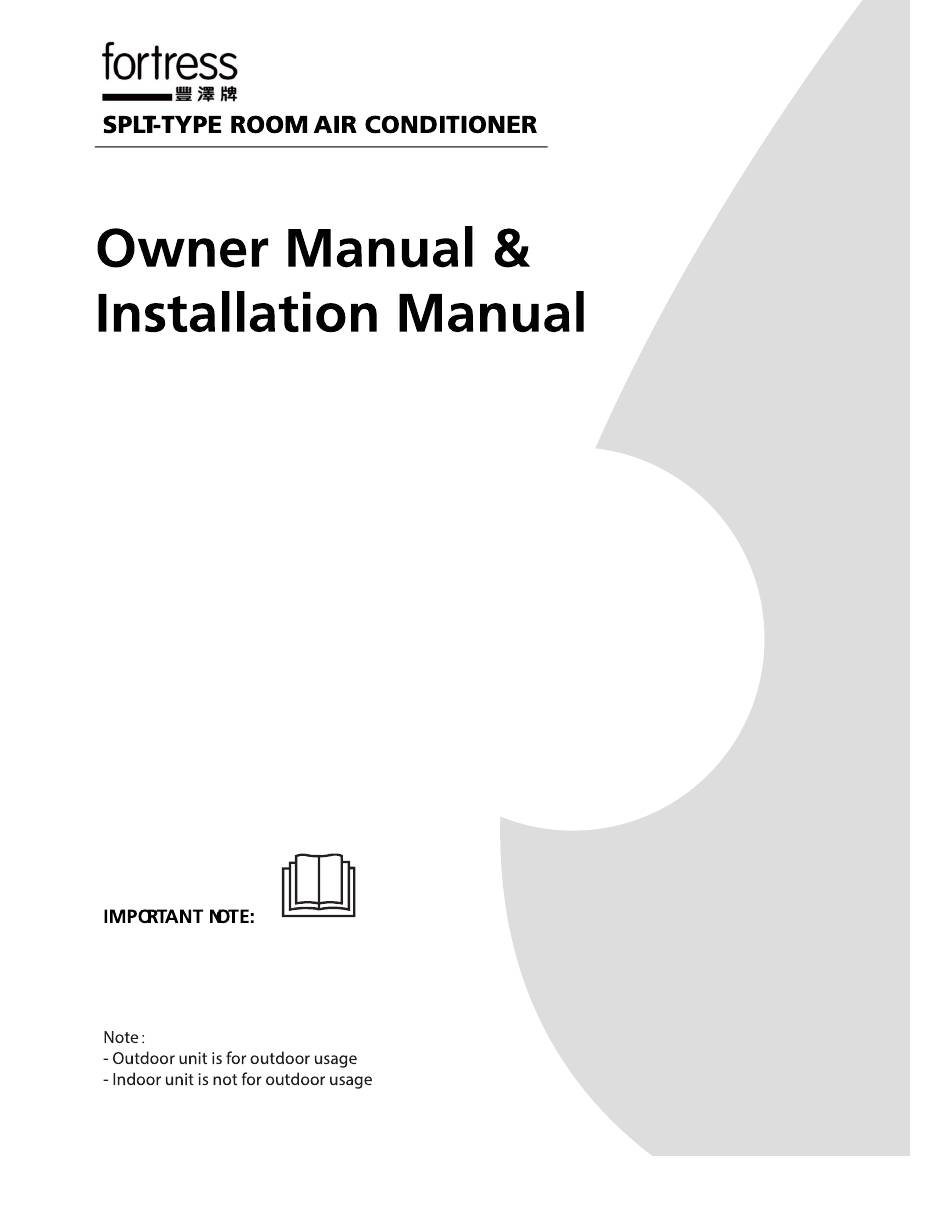

- Page 1 Model: FSAV09M22 FSAV12M22 FSAV18M22 Read this manual ca refully before installing or operating your new air conditioning unit. Make su re to save this manual for future reference.
- Page 2 ....................03 r ................07 ......................07 ....................08 .......................09 ....................10 ..................10 ..................11 .....................13 ......................16 ......................17 ......................18 ................19 Unit ........................20 ................... 21 ..................... 21 ....................21 ....................22 re r ..................23 ......................23 .....................24 7. W ....................25 ........................26 ............27 .......................27 ......................28 ......................28 ....................30 ........31 ......................31 ..................31 ......................31 ......................32 ....................32 ......................32...
- Page 4 Turn off the device and disconnect the power before cleaning. Failure to do so can cause • electrical shock. clean the air conditioner with excessive amounts of water. • clean the air conditioner with combustible cleaning agents. Combustible cleaning agents •...
- Page 5 1. Installation must be performed by an authorized dealer or specialist. Defective installation can cause water leakage, electrical shock, or fire. 2. Installation must be performed according to the installation instructions. Improper installation can cause water leakage, electrical shock, or fire. 3.
- Page 6 This air-conditioning unit contains fluorinated greenhouse gasses. For specific information on the type of gas and the amount, please refer to the relevant label on the unit itself or “Owner Manual - Product Fiche ” in the packaging of the outdoor unit. (European Union products only) Installation, service, maintenance and repair of this unit must be performed by a certified technician.
- Page 7 Different models have different front panels and display windows. Not all the display codes describing below are available for the air conditioner you purchased. Please check the indoor display window of the unit you purchased. Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be slightly different.
- Page 8 When your air conditioner is used outside of the following temperature ranges, certain safety protection features may activate and cause the unit to disable. When outside temperature is below 0°C 17°C - 32°C 10°C - 32°C Room Temperature (32°F ), keeping the unit (62°F - 90°F) (50°F - 90°F) plugged in at all time to...
- Page 9 • This feature avoids direct air flow blowing on the body. • The indoor unit will automatically display “EC” or • “EL0C”or LEDS will flash (model dependent ) If the unit loses power , it will automatically when it detects refrigerant leakage. restart with the prior settings once power has been restored.
- Page 10 • While the unit is on, use the button on remote control to set the direction (vertical angle) of airflow. Please refer to the Remote Control Manual for details. When using the COOL or DRY mode, do not set louver at too vertical an angle for long periods Do not move the louver by hand.
- Page 11 Rinse the filter with fresh water , then shake off excess water. Dry it in a cool, dry place, and refrain from exposing it to direct sunlight. When dry, re-clip the air freshening filter to the larger filter, then slide it back into the indoor unit.
- Page 12 Before changing the filter or cleaning, • If you plan not to use your air conditioner for an turn off the unit and disconnect its power extended period of time, do the following: supply. When removing the filter , do not touch the •...
- Page 13 If ANY of the following conditions occurs, turn off your unit immediately! The power cord is damaged or abnormally warm • You smell a burning odor • The unit emits loud or abnormal sounds • A power fuse blows or the circuit breaker frequently trips •...
- Page 14 The unit will make different sounds based on its current operating mode. The unit may accumulate dust during extended periods of non-use, which will be emitted when the unit is turned on. This can be mitigated by covering the unit during long periods of inactivity.
- Page 15 Wait for the power to be restored Power failure The power is turned off Turn on the power The fuse is burned out Replace the fuse Replace batteries Remote control batteries are dead The unit’s 3-minute protection Wait for three minutes after restarting has been activated the unit Turn the timer off...
- Page 16 Specifications Model FSAV09M22 FSAV12M22 FSAV18M22 Cooling Capacity(Btu/h) 9000 12000 18000 Power Source 220-240V~ 50Hz, 1Ph Current(A) 5.16 5.16 Input Power(W) 1120 1820 Refrigerant R410A/0.54kg R410A/0.54kg R410A/0.72kg Indoor Dimensions 806x200x296 806x200x296 971x226x321 (WxDxH)(mm) Indoor Net Weight(kg) 11.5 Indoor Gross Weight(kg) 11.5 11.5...
- Page 17 WARRANTY 1. The product has 2 years warranty from the date of purchase. 2. The warranty shall not apply: A. To any product subjected to misuse, alteration, act of God, improper handling, improper transport, improper testing or unauthorized repair; B. to cosmetic problems or defects which result from normal wear and tear under ordinary use yet not affecting the performance or use of the product;...
- Page 18 The air conditioning system comes with the following accessories. Use all of the installation parts and accessories to install the air conditioner. Improper installation may result in water leakage, electrical shock and fire, or cause the equipment to fail. The items are not included with the air conditioner must be purchased separately.
- Page 20 The installation must be performed in accordance with the requirement of local and national standards. The installation may be slightly different in different areas. Functional Filter (On Back of Remote Control Wall Mounting Plate Main Filter - Some Units) Remote control Holder Front Panel Drainage Pipe (Some Units)
- Page 21 If there is no fixed refrigerant piping: While choosing a location, be aware that you Before installing the indoor unit, refer to the should leave ample room for a wall hole (see label on the product box to make sure that the Drill wall hole for connective piping step) model number of the indoor unit matches the for the signal cable and refrigerant piping...
- Page 22 1. Determine the location of the wall hole based on the position of the mounting plate. Refer 2. Using a 65mm (2.5in) or 90mm(3.54in) (depending on models )core drill, drill a 348.4mm(13.7in) hole in the wall. Make sure that the hole 179mm(7.1in) 101mm(4.0in) 136mm(5.4in)
- Page 23 By default, the drain hose is attached to the left- The refrigerant piping is inside an insulating sleeve attached to the back of the unit. You hand side of the unit (when you’re facing the back must prepare the piping before passing it of the unit).
- Page 24 1. All wiring must comply with local and national electrical codes, regulations and must be installed by a licensed electrician. The signal cable enables communication between 2. All electrical connections must be made the indoor and the outdoor units. You must first according to the Electrical Connection Diagram choose the right cable size before preparing it for located on the panels of the indoor and the...
- Page 25 pen the front panel of the indoor unit. 1. O Using a screwdriver, open the wire box cover on the right side of the unit. This will reveal the terminal block. Front view Terminal block Wire cover Before passing the piping, drain hose, and the signal cable through the wall hole, you must Screw Cable clamp...
- Page 26 Connect the drain hose and the refrigerant piping (refer to Refrigerant Piping Connection If you installed a new connective piping to section of this manual for instructions). the outdoor unit, do the following: Keep the pipe connection point exposed to If you have already passed the refrigerant perform the leak test (refer to the Electrical piping through the hole in the wall, proceed...
- Page 27 Install the unit by following local codes and install the unit in the following locations: regulations , there may be slightly different between different regions. Near an obstacle that will block air inlets and outlets Near a public street, crowded areas, or where noise from the unit will disturb others Near animals or plants that will be harmed by hot air discharge...
- Page 28 The outdoor unit can be anchored to the Before bolting the outdoor unit in place, you must install the drain joint at the bottom of the unit. ground or to a wall-mounted bracket with Note that there are two different types of drain bolt(M10).
- Page 31 When connecting the refrigerant piping, let substances or gases other than the specified refrigerant enter the unit. The presence of other gases or substances will lower the unit’s capacity, and can cause abnormally high pressure in the refrigeration cycle. This can cause explosion and injury.
- Page 32 Burrs can affect the air-tight seal of the refrigerant piping connection. They must be completely removed. Ø 6.35 (Ø 0.25”) 0.7 (0.0275”) 1.3 (0.05”) Hold the pipe at a downward angle to prevent Ø 9.52 ( Ø 0.375”) 1.6 (0.063”) burrs from falling into the pipe.
- Page 33 Tighten the flare nut as tightly as possible by hand. Using a spanner , grip the nut on the unit tubing. While firmly gripping the nut on the unit tubing, use a torque wrench to tighten the flare nut according to the torque values in the table below .
- Page 34 If there is a change in system pressure, refer to Gas Leak Check section for information Air and foreign matter in the refrigerant circuit can on how to check for leaks. If there is no cause abnormal rises in pressure, which can damage change in system pressure, unscrew the cap from the packed valve (high pressure valve).
- Page 35 Some systems require additional charging depending on pipe lengths. The standard pipe length varies according to local regulations. The standard pipe length is 5m (16‘). The refrigerant should be charged from the service port on the outdoor unit’s low pressure valve. The additional refrigerant to be charged can be calculated using the following formula: <...
- Page 37 During operation, the pressure of the You should perform the for at least 30 refrigerant circuit will increase. This may minutes. reveal leaks that were not present during your Connect power to the unit. initial leak check. Take time during the Test Press the button on the remote Run to double-check that all refrigerant pipe...
- Page 39 REMOTE CONTROL USER MANUAL IMPORTANT NOTE: Please read this manual carefully before operating the air conditioning unit. Make sure to save this manual for future reference.
- Page 40 Table of Contents Remote Control Specifications ............02 Handling the Remote Control ............03 Buttons and Functions ..............04 Remote Screen Indicators ..............05 How to Use Basic Functions ............06 How to Use Advanced Functions ..........09 SPECIAL NOTE • Button designs on your unit may differ slightly from the example shown. •...
- Page 41 Remote Control Specifications FSAV09M22 FSAV12M22 FSAV18M22 3.0V( Dry batteries R03/LR03×2) -5°C~60°C(23°F~140°F) Quick Start Guide AUTO COOL FIT BATTERIES SELECT MODE SELECT TEMPERATURE AU-100% SELECT FAN SPEED PRESS POWER BUTTON POINT REMOTE TOWARD UNIT NOT SURE WHAT A FUNCTION DOES? Refer to the How to Use Basic Functions and How to Use Advanced Functions sections...
- Page 42 Handling the Remote Control Inserting and Replacing Batteries NOTES FOR USING THE REMOTE CONTROL Your air conditioning unit may come with two The device could comply with the local national batteries(some units). Put the batteries in the regulations. remote control before use. In Canada, it should comply with •...
- Page 43 1% increments. SWING Starts and stops the horizontal Turbo louver movement. Hold down Enables the unit to reach the preset for 2 seconds to initiate vertical temperature in the shortest louver auto swing feature. possible time FSAV09M22 Model: FSAV12M22 FSAV18M22...
- Page 44 Remote Screen Indicators Information are displayed when the remote control is power up. Breeze Away display Active clean feature display Fresh feature display Sleep mode display Follow me feature display Wireless control feature display Transmission Indicator Low battery detection display(If flashes) Lights up when the remote sends signal to the indoor MODE display...
- Page 45 How to Use Basic Functions Basic operation SETTING TEMPERATURE The operating temperature range for units ATTENTION! Before operation, please is 16-30°C (60-86°F)/20-28 C(68-82 F). ensure the unit is plugged in and power You can increase or decrease the set is available. temperature in 1°C (1°F) increments.
- Page 46 DRY Mode (dehumidifying) 1. Press the MODE button to select DRY. 2. Set your desired temperature using the TEMP or TEMP button. 3. Press the ON/OFF button to start the unit. NOTE: FAN SPEED cannot be changed in DRY mode. FAN Mode Press the MODE button to select FAN mode.
- Page 47 Setting the TIMER TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off. TIMER ON setting Press the TIMER button to Press the Temp. up or down button Point the remote to the unit and wait for initiate the ON time sequence.
- Page 48 How to Use Advanced Functions Swing function Press the Swing button Swing Swing The horizontal louver will swing up and down Keep pressing this button for more than 2 seconds, automatically when pressing the Swing button. the vertical louver swing function will be activated. Press again to make it stop.
- Page 49 ECO/GEAR function Press this button to enter the energy efficient mode in a sequence of following: GEAR(75%) GEAR(50%) Previous setting mode ECO..Note:This function is only available under COOL mode. ECO operation: Under cooling mode, press this button, the remote control will adjust the temperature automatically to 24 C/75 F, fan speed of Auto to save energy (only when the set temperature is less than 24 C/75 F).
- Page 50 Silence function Keep pressing the Fan button for more than 2 seconds to activate/disable the Silence function(some units). Due to the low frequency operation of the compressor, it may result in insufficient cooling capacity. Press the ON/OFF, Mode, Sleep, Turbo or Clean button while operating will cancel the silence function.
- Page 51 SET function Press the SET button to enter the function setting, then press the SET button or the TEMP or TEMP button to select the desired function. The selected symbol will flash on the display area, press the OK button to confirm. To cancel the selected function, just perform the same procedures as above.
- Page 52 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details.
- Page 53 技术要求： 尺寸A5,大度 80克双胶纸 装订，黑白...
