IMPORTANT SAFETY INFORMATION: Always read this manual first before attempting to service this fireplace. For your
safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or prop-
erty damage.
Dimplex North America Limited
1367 Industrial Road Cambridge ON Canada N1R 7G8
1-888-346-7539 www.dimplex.com
In keeping with our policy of continuous product development, we reserve the right to make changes without notice.
© 2014 Dimplex North America Limited

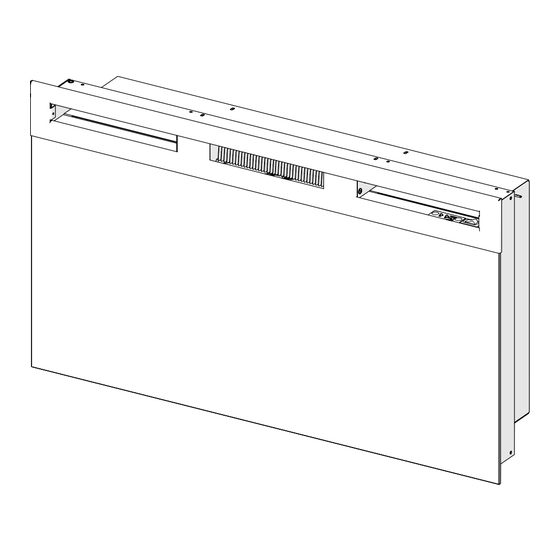

Service Manual
Model
BLF34
UL Part Number
6909150100
REV
PCN
DATE
00
-
24-Jan-14
7400730000R00
Advertisement
Table of Contents
Related Manuals for Dimplex BLF34
Summary of Contents for Dimplex BLF34
- Page 1 Dimplex North America Limited 24-Jan-14 1367 Industrial Road Cambridge ON Canada N1R 7G8 1-888-346-7539 www.dimplex.com In keeping with our policy of continuous product development, we reserve the right to make changes without notice. © 2014 Dimplex North America Limited 7400730000R00...
-
Page 2: Table Of Contents
NOTE: Procedures and techniques that are considered important enough to emphasize. CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, or death. www.dimplex.com... -
Page 3: Operation
Figure 1 and waiting five minutes before switching the unit back on. CAUTION: If you need to continuously reset the heater, disconnect power and call Dimplex customer service at 1-888-DIMPLEX (1-888-346-7539). Remote Control The fireplace is supplied with a radio frequency remote control. -
Page 4: Maintenance
Fireplace Surface Cleaning Use only a damp cloth to clean painted surfaces of the fireplace. Do not use abrasive cleaners. Servicing Except for installation and cleaning described in this manu- al, an authorized service representative should perform any other servicing. www.dimplex.com... -
Page 5: Exploded Parts Diagram
EXPLODED PARTS DIAGRAM Replacement Parts List 1. Element......2200510300RP 11. Switch Board....3000821100RP 2. -
Page 6: Wiring Diagram
WIRING DIAGRAM 120V~ 60Hz www.dimplex.com... -
Page 7: Preparation For Service
PREPARATION FOR SERVICE Figure 3 NOTE: All components are replaceable from the front of the fireplace while the unit is mounted on the wall, with the exception of replacement of the power cord. Front tray NOTE: If the power cord needs replacing or if the unit needs to be removed from the wall for any other reason please begin service by following the “PREPARATION FOR SERVICE”... -
Page 8: Recessed Mount - Partial In-Wall
(i.e. cloth, cardboard, thick plastic). 5. Proceed to the instructions within this manual relating Bottom Support to the repair being performed - see Table of Contents Bracket for page number. 6. Once repair is complete, reassemble in the reverse order as above. www.dimplex.com... -
Page 9: On/Off Switch Replacement
ing the screws to prevent the unit from falling. 5. Proceed to the instructions within this manual relating to the repair being performed - see Table of Contents 3. Remove the fireplace out of the opening by slightly lift- for page number. ing and pulling forward. -
Page 10: Remote Switchboard Replacement
(Figure 9), located at the top of the mirror on the switchboard in its original configuration. . right side of the unit. 8. Reassemble in the reverse order as above. 2. Slide the controls assembly out toward the front of the www.dimplex.com... -
Page 11: Flicker Motor/ Flicker Rod Replacement
unit. 8. Properly orient the new flicker motor onto the bracket and re-attach with the 2 mounting screws. CAUTION: Ensure that the assembly is removed care- fully, ensuring that no wires are caught or over strained. 9. Reassemble in the reverse order as above. 3. -
Page 12: Led Light Strips Replacement
(Figure 9), located at the top of the mirror on the right side of the unit. 4. Slide the controls assembly out toward the front of the unit. CAUTION: Ensure that the assembly is removed care- fully, ensuring that no wires are caught or over strained. Retaining Brackets www.dimplex.com... -
Page 13: Element Replacement
wedged underneath the Partially Reflective Glass. They maintenance or cleaning to reduce the risk of electric may obstruct the ease of removing the Partially Reflective shock or damage to persons. Glass from the fireplace. CAUTION: If unit was operating prior to servicing allow 2. - Page 14 11. Remove the 6 screws (3 sets) that secure the blower to the assembly (Figure 15). 12. Disconnect the wiring connections noting their original locations. NOTE: Using a flat head screwdriver gently pry between the end of the connectors and the blower/fan to release the www.dimplex.com...
-
Page 15: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION General Circuit breaker trips or fuse Short in unit wiring. Trace wiring in unit. blows when unit is turned on Improper circuit current rating Additional appliances may exceed the current rating of the circuit breaker or fuse. Plug unit into another outlet or install unit on a dedicated 15 amp circuit. - Page 16 Grinding or excessive noise with Flicker rod hitting or rubbing against Ensure rod is straight and mounted properly in the the heater off internal components bracket, spinning freely away from other components. Replace if necessary. Defective Flicker motor Replace Flicker motor www.dimplex.com...
