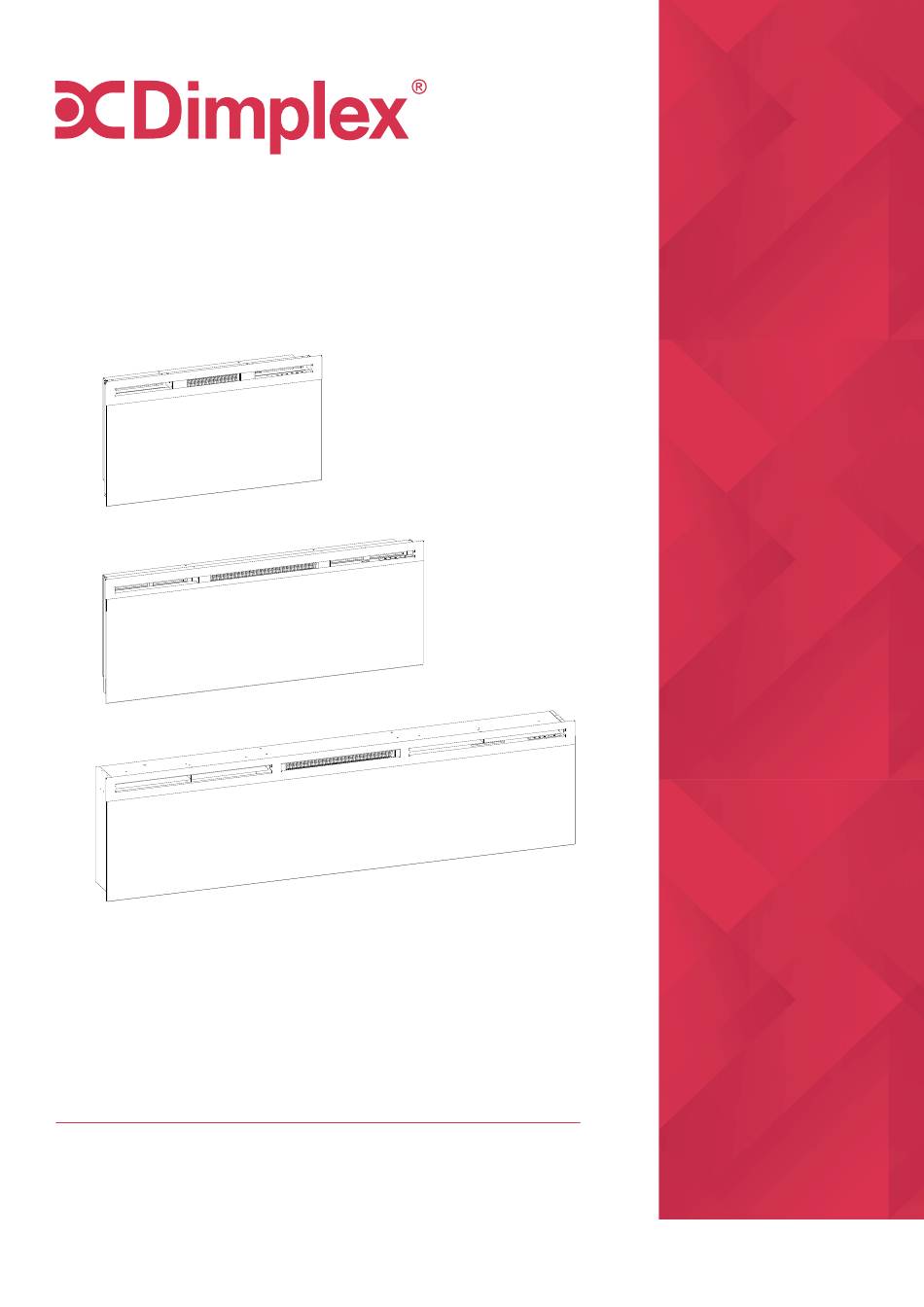

- Page 1 INSTRUCTION MANUAL Prism 1.2kW Wall Mounted Electric Fire Models: BLF3451-AU, BLF5051-AU & BLF7451-AU For domestic household use only. 8/55062/0 Issue 2 OCN 11905...
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your product for the first time and keep them in a safe place.
- Page 3 its use on deep pile carpets or on long hair type of rugs • The appliance must be positioned so that the plug is accessible. • If the supply cord is damaged it must be replaced by the manufacturer or service agent or a similarly qualified person in order to avoid a hazard.
- Page 4 WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN • Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the oesophagus. • If you suspect your child has swallowed or inserted a button battery immediately call the 24-hour Poisons Information Centre on 13 11 26 (in Australia) or 0800 764 766 (in New Zealand) for fast, expert advice.
- Page 5 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power boards cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 6: Specifications
Specifications Model no. BLF3451-AU BLF5051-AU BLF7451-AU Colour/Finish Self-trimming black Wattage 1200 Heat Settings Thermostat Control LED effect Remote Control Warranty 2 Years 867w x 179d x 1280w x 179d x 1883w x 187d x Dimensions (w x d x h) - Page 7 Setup General Information Unpack the heater carefully and retain the packaging for possible future use, in the event of moving or returning the fire to your supplier. The fire incorporates a flame effect, which can be used with or without heating, so that the comforting effect may be enjoyed at any time of the year.
-
Page 8: Product Dimensions
Product Dimensions 34" Prism BLF3451-AU 50" Prism BLF5051-AU 74" Prism BLF7451-AU... -
Page 9: Remote Control
Control Panel & Remote WARNING: The Electric Firebox must be installed properly before it is used. CAUTION: Except for installation and cleaning described in this manual, an authorized service representative should perform any other servicing. The manual controls are located at the top left hand side as pictured below. The selected setting displays on the right side of the front panel. -
Page 10: Installation
Installation... - Page 11 Installation Front Glass Installation- see Fig. 11 & 12 above 1. Pour and evenly distribute the supplied media in the media tray of the firebox. 2. Carefully mount front glass assembly so that the front glass hooks hang on the front glass mounts on the fireplace (Figure 11).
- Page 12 Installation Surface Mounting (34" & 74" Models)- see Fig. 3 & 4 CAUTION: Two people will be required for various steps of this procedure. 1. Determine the mounting location of the unit so that the wall-mounting bracket can be installed into a minimum of 2 wall studs for the 34" Models and 4 wall studs for the 74"...
- Page 13 Installation Surface Mounting (50" Models) continued. 1. Position the fireplace on a wall in the place where it will be mounted (Fig. 6). Use a spirit level (one is supplied) to ensure that fireplace is level on the wall. 2. Ensuring that at least two key-holes, line up with a wall stud (key-holes are spaced at 10.2cm centre) (Fig.
-
Page 14: Operation
Installation Flush Mount- see Fig. 9 & 10 CAUTION: Two people will be required for various steps of this procedure. 1. Prepare a wall with a framed opening for the correct model (Fig. 9) • 34" Model: 83.8cm wide x 47cm high •... - Page 15 Operation Icon Display Function Description Press once to turn the product ‘ON’. Press a second time to put the product into ‘STANDBY’ Power / (When returning from ‘STANDBY’ mode the product will return to previous settings unless the Standby product has been plugged out, in which case it will reset to factory settings) Press multiple times to change the ‘SLEEP TIMER’...
-
Page 16: Warranty
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,... - Page 18 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
