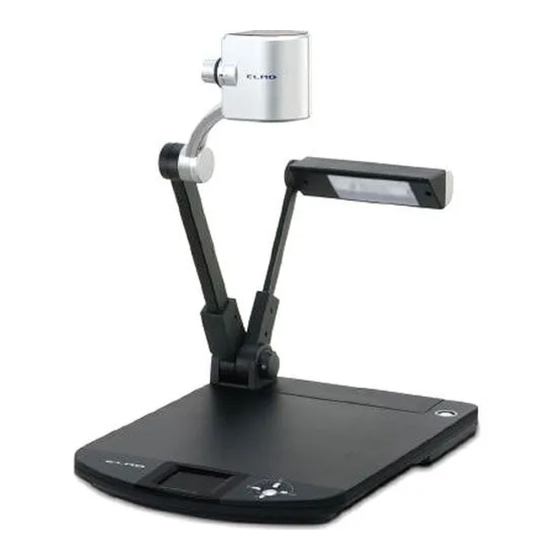

Elmo Digital presenter Quick Manual
  1. Manuals
  2. Brands
  3. Elmo Manuals
  4. Document Camera
  5. Digital presenter
  6. Quick manual

Elmo Digital presenter Quick Manual

Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

Turning On and Selecting Projector Source
Locate and press the power button on the ELMO (see 6 on diagram).
1.
Turn on your projector and select the S-Video source.
2.
Elmo Basic Operation
Turning the Lamp On/Off
 You can turn the lamp on/off from the front operating panel or from
the remote control (see diagram below). The lamp may not be needing
at times depending on lighting in the room.
Using the Zoom
 Turn the zoom dial (see 5 on diagram) or press the +/- buttons on the remote control.
Using Auto Focus
 Push the Auto Focus button (see 4 on diagram) or the AF button on the remote control.
Using the Remote Control
 POSI/NEGA - reverses white & black colors.
 COLOR/B&W - alternate between color or B&W image.
 IMAGE ROTATION - rotate the projected image 180°.
 PAUSE - freezes the image allowing you to remove the
(only works with the S-Video source)
document
 AF (auto focus) - auto focus the image.
 Zoom (+ or - ) - zoom in or out with the remote.
Using the VCR (if available)
The VCR will connect to the switch plate using a yellow RCA component video cable.
You will use the Video source on the projector to view videos from the VCR.
Elmo Digital Presenter Quick Guide
Plano ISD Instructional Technology
.
Support
Don Dempsey
28059
Dana Adams
28092
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Digital presenter and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elmo Digital presenter

Summary of Contents for Elmo Digital presenter

  • Page 1 Don Dempsey 28059 Dana Adams 28092 Locate and press the power button on the ELMO (see 6 on diagram). Turn on your projector and select the S-Video source. Elmo Basic Operation Turning the Lamp On/Off  You can turn the lamp on/off from the front operating panel or from the remote control (see diagram below).

  • Page 2: Quick Guide

    The remote control toolbar can be used while viewing your document in full screen mode to adjust brightness, focus and zoom instead of using the regular Elmo remote control.  Press the Remote Control button on the toolbar to view the remote control toolbar.

  • Page 3: General Information

    BenQ Projector Remote and Pen  Plano ISD Instructional Technology    THE BENQ REMOTE    Changing Input Source  Computer 1:  displays the computer  S‐Video:   displays the ELMO  Video:    displays the VCR (if connected)        Other Features  Blank:  displays a black background…used for hiding the projected image.  Freeze (#7):  freezes the screen so you can do other things on your computer.  Aspect (#8):  changes the aspect ration (screen size) on the white board.  Laser:  activates the laser pointer.                  THE BENQ PEN  GENERAL INFORMATION  BATTERY AND CHARGING   The pen can be used as a wireless mouse by pointing it at  Open the side panel of the pen.  Plug in the USB charger  cable.   your screen and using the buttons on the pen to click or it ...
  • Page 4 QDraw Software Reference Guide Plano ISD Instructional Technology INSTALLING AND OPENING QDRAW TOOLBAR FUNCTIONS 1. From the App Depot folder on the desktop, Minimize the toolbar – Hide the toolbar select BenQ Draw – InstallShortcut and click Lock/Unlock the toolbar – Locks position. the Run button.

  • Page 5: Manipulating Objects

    MANIPULATING OBJECTS Some annotation tools allow further manipulation after they have been drawn. Click on the object you will see editing tools. Rotate Edit Menu Resize USING THE PEN TO UNDERLINE AND ERASE UNDERLINE TEXT IN A DOCUMENT 1. Open a Microsoft Word Document. 2.
