Read INA226 Registers
Select the Get INA226 Registers tab

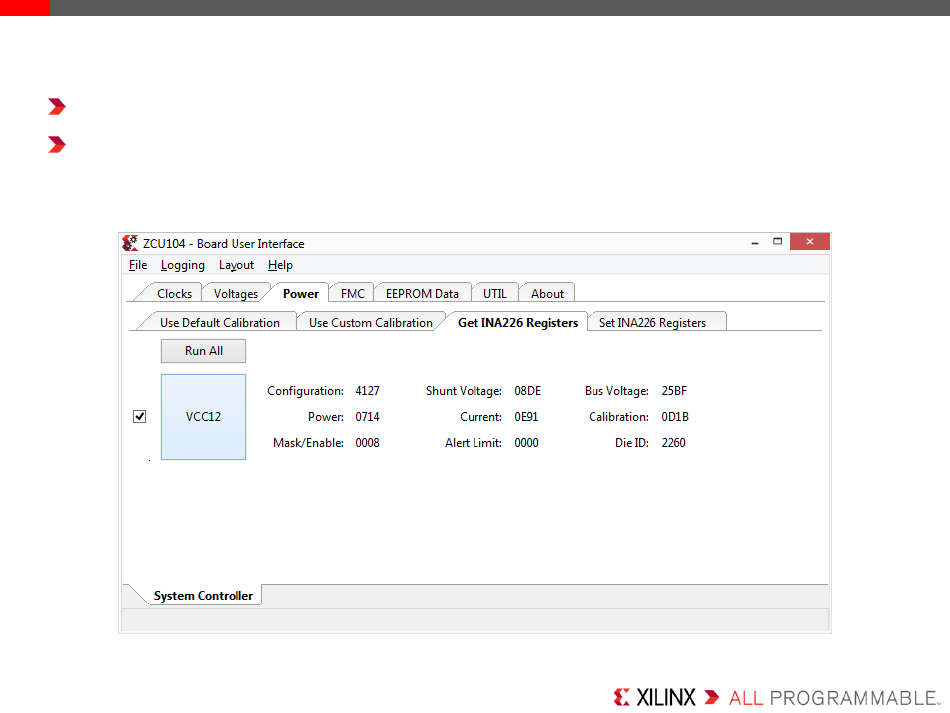

Click the VCC12 button and observe the INA226 Registers settings
Note: Presentation applies to the ZCU104
