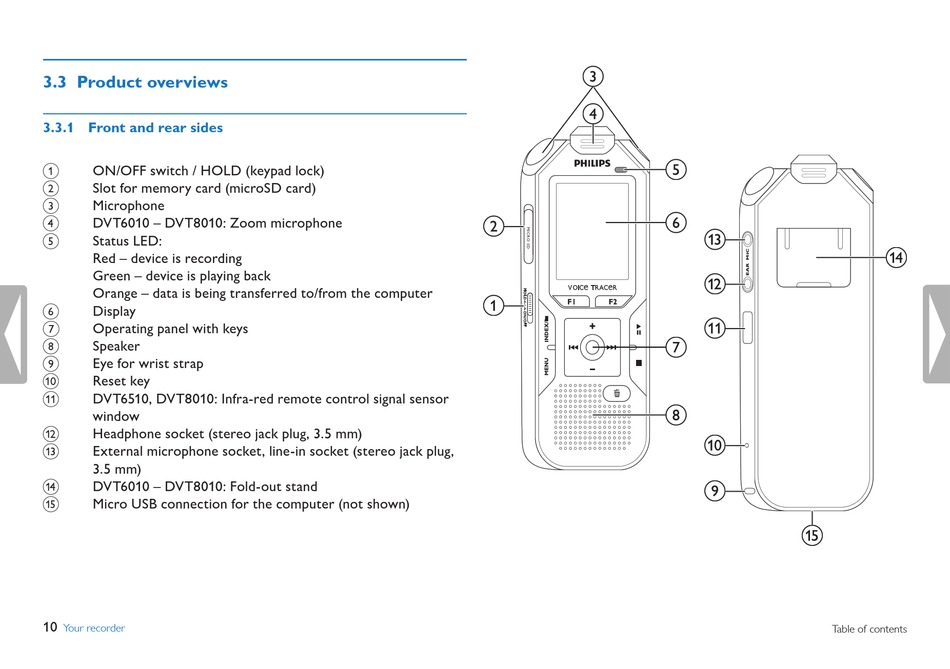

3.3 Product overviews

3.3.1 Front and rear sides
ON/OFF switch / HOLD (keypad lock)
a
Slot for memory card (microSD card)
b
Microphone
c
DVT6010 – DVT8010: Zoom microphone
d
Status LED:
e
Red – device is recording
Green – device is playing back
Orange – data is being transferred to/from the computer
Display
f
Operating panel with keys
g
Speaker
h
Eye for wrist strap
i
Reset key
j
DVT6510, DVT8010: Infra-red remote control signal sensor
k
window
Headphone socket (stereo jack plug, 3.5 mm)
l
External microphone socket, line-in socket (stereo jack plug,
m
3.5 mm)
DVT6010 – DVT8010: Fold-out stand
n
Micro USB connection for the computer (not shown)
