Elite Screens Q100V User Manual
Quickfold series folding presentation screen
Hide thumbs
Also See for Q100V:
- Product catalog (28 pages) ,
- Specifications (3 pages) ,
- Product catalog (72 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Elite Screens Q100V
Summary of Contents for Elite Screens Q100V

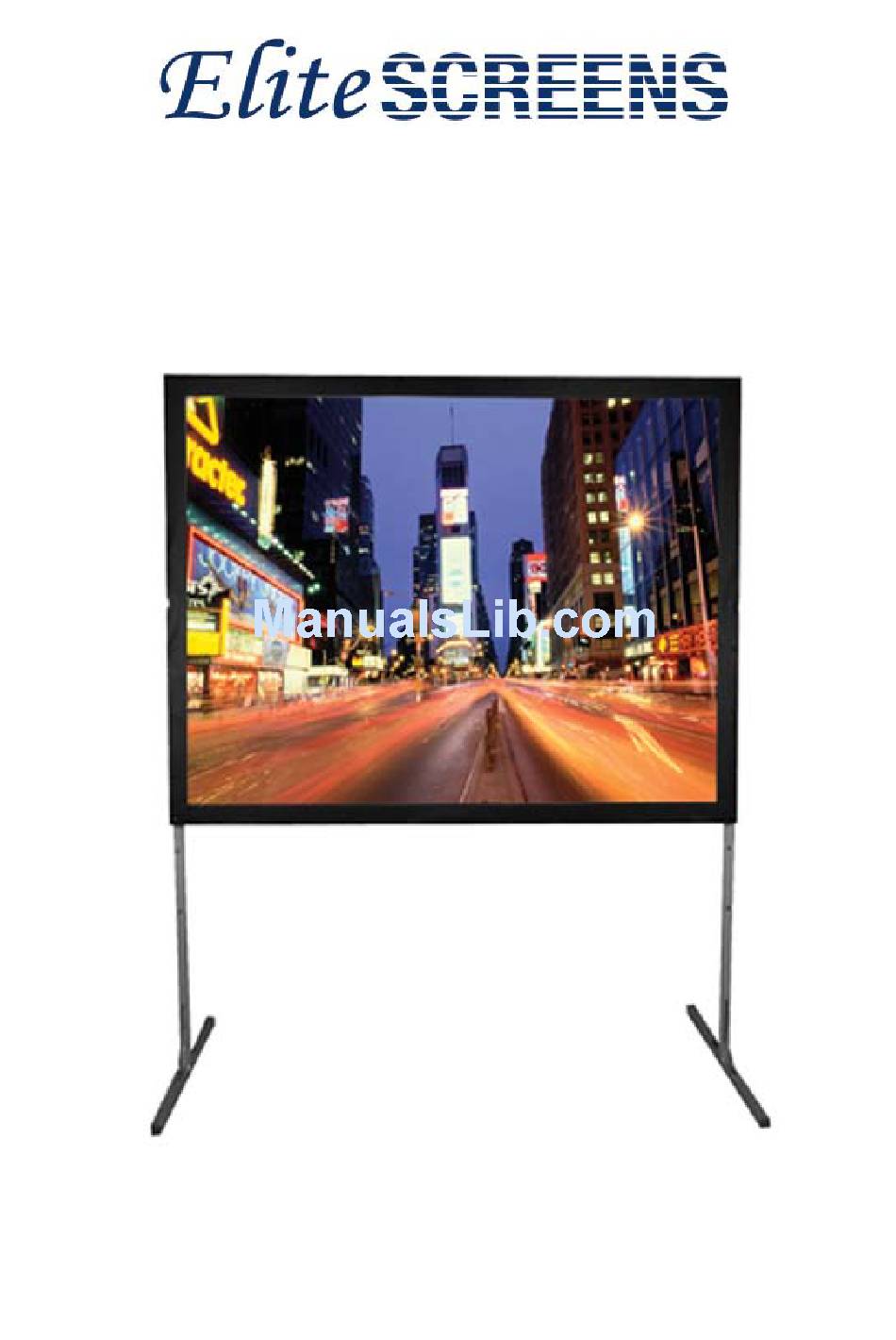

- Page 1 Folding Presentation Screen QuickFold Series Users Guide...
-
Page 2: Setup Procedure
The frame and supports are made of 1 3/8” aluminum tubing with an anodized finish. Please follow the instructions in this package. With proper care, your QuickFold screen will provide many years of reliable service. Two Section Frame (For presentation screens that are less than 120” in diagonal measurement) 1. - Page 3 Three Section Frame (For large presentation screens that are 120” or more in diagonal measurement) 1. Take the frame out of the case and remove its wrappings. Unfold the main joints making sure that both the end and middle spans are in prefect alignment as shown in (fig 4).
- Page 4 Standard T-Leg Support 1. Take the T-Leg out of the case and remove its wrappings. Fold down the support legs as shown in (fig 7). 2. Secure the corner braces into the locked position as shown in (fig 8) 3. Unfold the T-Leg’s main support until the snap latches “click”...
- Page 5 AT-Leg (optional support buttress recommended for the large screens with diagonal measurements of 150” and over) 1. Take the AT-Leg buttress out of the case and remove its wrappings. Unfold the buttress as shown in (fig 10). 2. Snap latches will automatically lock in the center joint. Use the snap latch buttons to unlock the end joints as shown in (fig 11).
- Page 6 SAT-Leg (optional added stability buttress recommended for the large screens with diagonal measurements of 180” and over) 1. Take the SAT-Leg out of the case and remove it wrappings as shown in (fig13). 2. Undo the snap locks to loosen and bend the joints for proper fitting as shown in (fig 14). 3.
- Page 7 ttaching the Frame to its Supports 1. Always use at least two locking bolts through the T-Leg Support, the Spacer and into the Frame on each side. 2. Height can be adjusted in 8” increments up or down. Normal screen height is 44” from the bottom of the frame to the floor.
- Page 8 1. With the viewing surface facing up, fold the fabric in half from top to bottom. When folding, make certain that the viewing surface does not come into contact with the black binding, grommets or snap buttons. *Note: The screens are shipped from production with tissue paper in the folds that should be retained for future use. 2.
-
Page 9: Packing List
Demo units or open box items are AS IS items and do not carry a warranty. • Elite Screens will cover ground shipping charges on warranty claims made within 7 days of receiving per our DOA (Defective On Arrival) policy •... - Page 10 WO WAYS TO REGISTER YOUR WARRANTY WITH LITE CREENS A. On Line (Faster and Easier) www.elitescreens.com/register.html B. Fill out & Fax to (562) 483-8498, Attn: Customer Service Dept. *Your Name: _______________________________________________________ Address: ____________________________________________________________ City/State/Zip ________________________________________________________ *Email Address: ______________________________________________________ *Phone: _____________________________________________________________ *Screen Model: _______________________________________________________ *Serial Number: _______________________________________________________ *Date of Purchase: _____________________________________________________...
