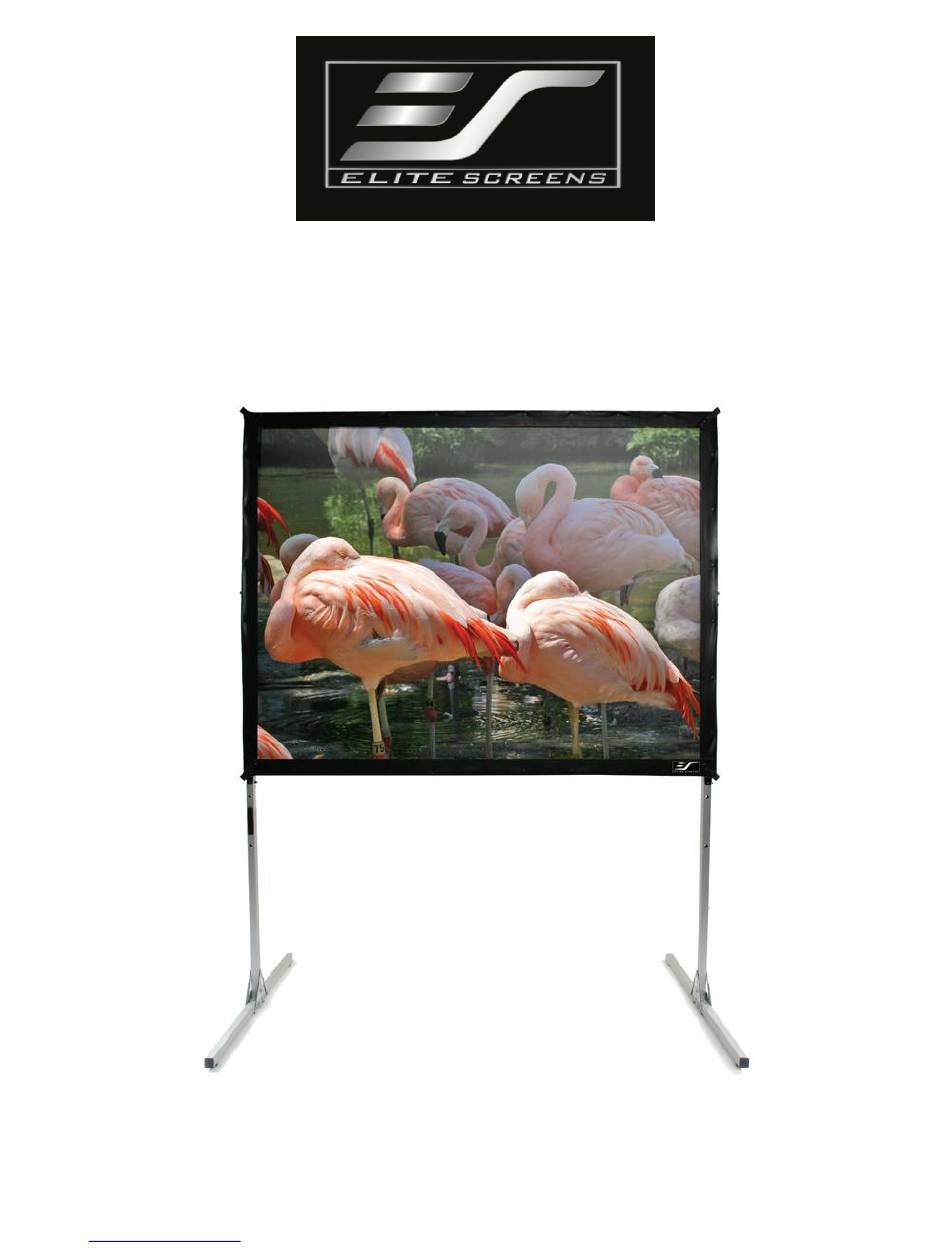

- Page 1 QuickStand Series Portable Frame-Folding Projection Screen User’s Guide Rev043010-JA www.elitescreenscom info@elitescreens.com...
-
Page 2: Setup Procedure
Setup Procedure The frame and supports are made of 1 3/8” aluminum tubing with an anodized finish. Please follow the instructions in this package. With proper care, your QuickStand screen will provide many years of reliable service. Two Section Frame (For presentation screens that are less than 120”... - Page 3 Three Section Frame (For large presentation screens that are 120” or more in diagonal measurement) 1. Take the frame out of the case and remove its wrappings. Unfold the main joints making sure that both the end and middle spans are in prefect alignment as shown in (fig 4).
- Page 4 Standard T-Leg Support 1. Take the T-Leg out of the case and remove its wrappings. Fold down the support legs as shown in (fig 7). 2. Secure the corner braces into the locked position as shown in (fig 8) 3. Unfold the T-Leg’s main support until the snap latches “click”...
- Page 5 AT-Leg (optional support buttress recommended for the large screens with diagonal measurements of 150” and over) 1. Take the AT-Leg buttress out of the case and remove its wrappings. Unfold the buttress as shown in (fig 10). 2. Snap latches will automatically lock in the center joint. Use the snap latch buttons to unlock the end joints as shown in (fig 11).
- Page 6 SAT-Leg (optional added stability buttress recommended for the large screens with diagonal measurements of 180” and over) 1. Take the SAT-Leg out of the case and remove it wrappings as shown in (fig13). 2. Undo the snap locks to loosen and bend the joints for proper fitting as shown in (fig 14). 3.
- Page 7 Attaching the Frame to its Supports 1. Always use at least two locking bolts through the T-Leg Support, the Spacer and into the Frame on each side. 2. Height can be adjusted in 8” increments up or down. Normal screen height is 44” from the bottom of the frame to the floor.
- Page 8 2. Make sure that the first folds never exceed 3 feet in width (fold again if necessary). Also make sure that there is always clean packing paper in between the two surfaces. 3. Larger sized screens will need to be folded with more frequency than smaller screens. Follow the instructions from step 1 as well.
-
Page 9: Parts List
Parts List 1. Frame x 1 piece 2. Support (T) Legs x 2 pieces 3. AT-Legs x 2 pieces (optional depending on size) 4. SAT-Legs x 2 pieces. (optional depending on size) 5. Screen Fabric x 1 piece 6. Locking Bolt x 6-26 pieces 7. -
Page 10: Limited Warranty Policy
If a return is needed, Elite Screens will issue you a Return Merchandise Authorization (“RMA”) Number. This number is valid for (45) days from the date of issue, and is required to process any returns. A returned item sent to Elite Screens without a visible or valid RMA Number is subject to refusal by Elite Screens.
