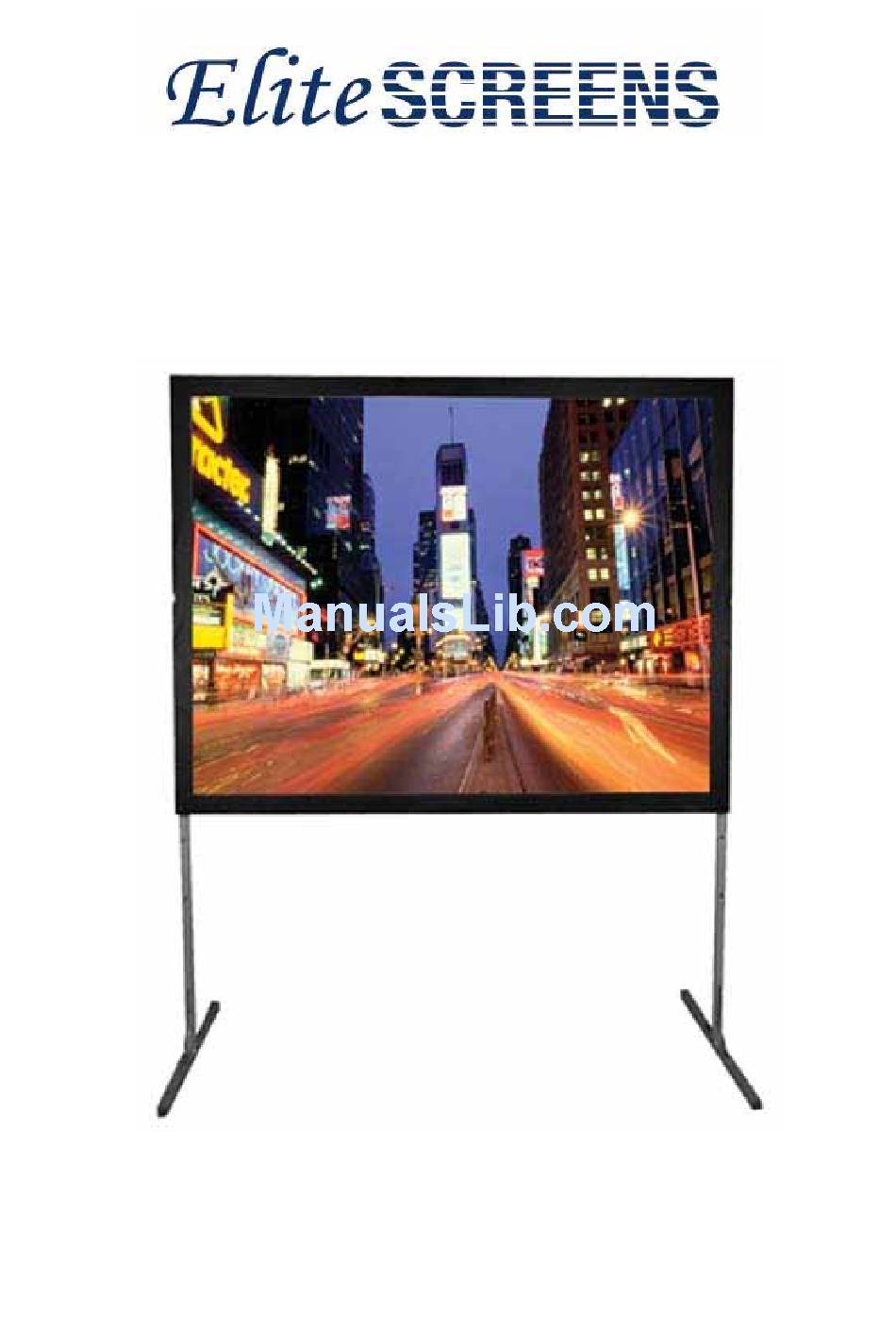

  • Page 1 Folding Presentation Screen QuickStand Series Users Guide...

  • Page 2: Setup Procedure

    Setup Procedure The frame and supports are made of 1 3/8” aluminum tubing with an anodized finish. Please follow the instructions in this package. With proper care, your QuickFold screen will provide many years of reliable service. Two Section Frame (For presentation screens that are less than 120”...
  • Page 3 Three Section Frame (For large presentation screens that are 120” or more in diagonal measurement) 1. Take frame case remove its wrappings. Unfold the main joints making sure that both the end and middle spans are in prefect alignment as shown in (fig 4). 2.
  • Page 4 Standard T-Leg Support 1. Take the T-Leg out of the case and remove its wrappings. Fold down the support legs as shown in (fig 7). 2. Secure the corner braces into the locked position as shown in (fig 8) 3. Unfold the T-Leg’s main support until the snap latches “click”...
  • Page 5 Following steps 1,2,3 below, use caution during attachment. unfold Fig2 ,3 adjust the height of the frame and then tighten the connection screws. unfold Connection screws removable frame unfold Lock down the corners locking bolt Snap latch Adjusting screws removable frame...
  • Page 6 Attaching the Frame to its Supports 1. Always use at least two locking bolts through the T-Leg Support, the Spacer and into the Frame on each side. 2. Height can be adjusted in 8” increments up or down. Normal screen height is 44” from the bottom of the frame to the floor.
  • Page 7 1. With the viewing surface facing up, fold the fabric in half from top to bottom. When folding, make certain that the viewing surface does not come into contact with the black binding, grommets or snap buttons. *Note: The screens are shipped from production with tissue paper in the folds that should be retained for future use. 2.

  • Page 8: Packing List

    Packing List 1. Frame 1 piece 2. Support (T) Legs 2 pieces 3. AT-Legs 2 pieces (optional depending on size) 4. SAT-Legs 2 pieces. (optional depending on size) 5. Screen Fabric 1-2 pieces 6. Locking Bolt 6-26 pieces 7. Frame Spacer 6-26 pieces 8.
  • Page 9 On Arrival) unit with a brand new replacement *(see exceptions below) after the DOA unit is received and/or confirmed defective. Once the product is received, Elite Screens will send out a new *unit to the customer by ground service (subject to inventory availability). Should a problem be reported after the 7-day grace period, the item must be shipped to us for warranty repair.
  • Page 10 Please contact us at service@elitescreens.com.cn or call +86-(0) 755-8461-7989 America: Europe: Elite Screens Inc Elite Screens GmbH 16410 Manning Way Elite Screens Europe GmbH Cerritos, CA 90703 USA Lübecker Straße 1 Tel: 877-511-1211 22087 Hamburg, Germany Fax: 562-483-8498 Tel: +49-40-30392494 info@elitescreens.com...
