- Page 1 FHD VC18PTZ 1080P H D P A N, TI LT & ZOO M CC T V CAM E R A U S E R M A N U A L www. espuk . com...
-
Page 2: Product Overview

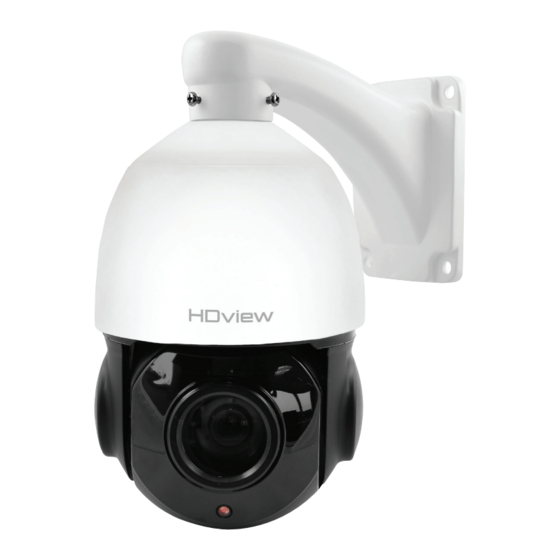

Product Overview FEATURES • 1080P HD image • 18x optical zoom • IR Night vision up to 50m • 360 degree endless pan rotation • Auto flip function to aid tracking of subjects beneath camera • Control protocol auto-detect • Supports Pelco D/P, Hik and Dahua control protocols •... -
Page 3: Maintenance
Pre-Installation Guidance SITING YOUR PTZ CAMERA Do not install your PTZ camera in any of the following locations: • In areas where humidity reaches >90% • Near a boiler flue or air conditioning outlet. • In environments high in smoke or dust. Avoid directing the camera towards very strong light sources such as the sun. -
Page 4: Installation
Installation 1. Mark out the holes for the 4 fixing screws 2. Drill holes and insert rawl plugs using template provided 3. Remove cover to access address/baud 4. Replace cover and screw rate/resistor switches (see page 5) M4 SCREW 5. Thread cables through the bracket 6. -
Page 5: Configuration Dip Switches
Configuration DIP Switches SWITCH SW1 CAMERA ID/ ADDRESS SETUP (SWITCH SW1) PTZ cameras must be addressed with a unique number. This number can be from 0-255 and is set in binary, use the table below to manually set the address. SWITCH SW2 Visit http://www.binaryhexconverter.com for more help to convert decimal to binary. -
Page 6: Connecting Multiple Ptz Cameras
Connections Using a screened control cable is recommended for maximum protection against interference. 12V/DC Connect to power supply, connect 230V mains supply to power supply RS485A(+) Connect to PTZ controller (or DVR) RS485A+ RS485B(-) Connect to PTZ Controller (or DVR) RS485B- Earth wire Connect to control cable screen. -
Page 7: Basic Operation
Basic Operation SET/RECALL PRESET POSITIONS 1. Set PTZ controller to the correct PTZ camera (input PTZ ID, press CAM) 2. Use joystick to position/zoom camera to chosen position 3. Input (position number), + PRESET To recall a preset position, input (position number) +SHOT PRESET FUNCTION ACCESS Some of the commonly used functions on the PTZ camera can be accessed by entering certain preset numbers. -
Page 8: Osd Menu Overview
OSD Menu Overview... -
Page 10: System Information
OSD Menu Features MAIN MENU System Information Display system information System Setting Configuration of system parameters IR LED Setting Configuration of IR illumination parameters Reset Revert to factory default settings SYSTEM INFORMATION Protocol Set control protocol to Pelco/Hik/Auto Baud Rate Set control baud rate to 2400/4800/9600/Auto Hard Addr Display current address/ID set by DIP switches (0-255) -
Page 11: Movement Control
MOVEMENT CONTROL Auto Flip Enable/disable auto flip (camera turns 180° when following a subject passing underneath the camera, to aid tracking) Proportion Enable/disable proportion pan (camera control speed is lowered when zoomed in to aid tracking) Park Time Set park time (idle time) in seconds (0-255) Park Action Set park action when camera is idle (Preset/Pattern/Patrol/ Scan) -
Page 12: Technical Specifications
Working conditions -10°C - +50°C Elite Security Products Telephone: 01527 51 51 50 Unit 7, Target Park, Shawbank Rd Fax: 01527 51 51 43 Lakeside, Redditch B98 8YN email: info@espuk.com E&OE- Errors and ommissions excepted. E17 www.esp uk.c o m...
