Summary of Contents for Vax BLADE 4 PET

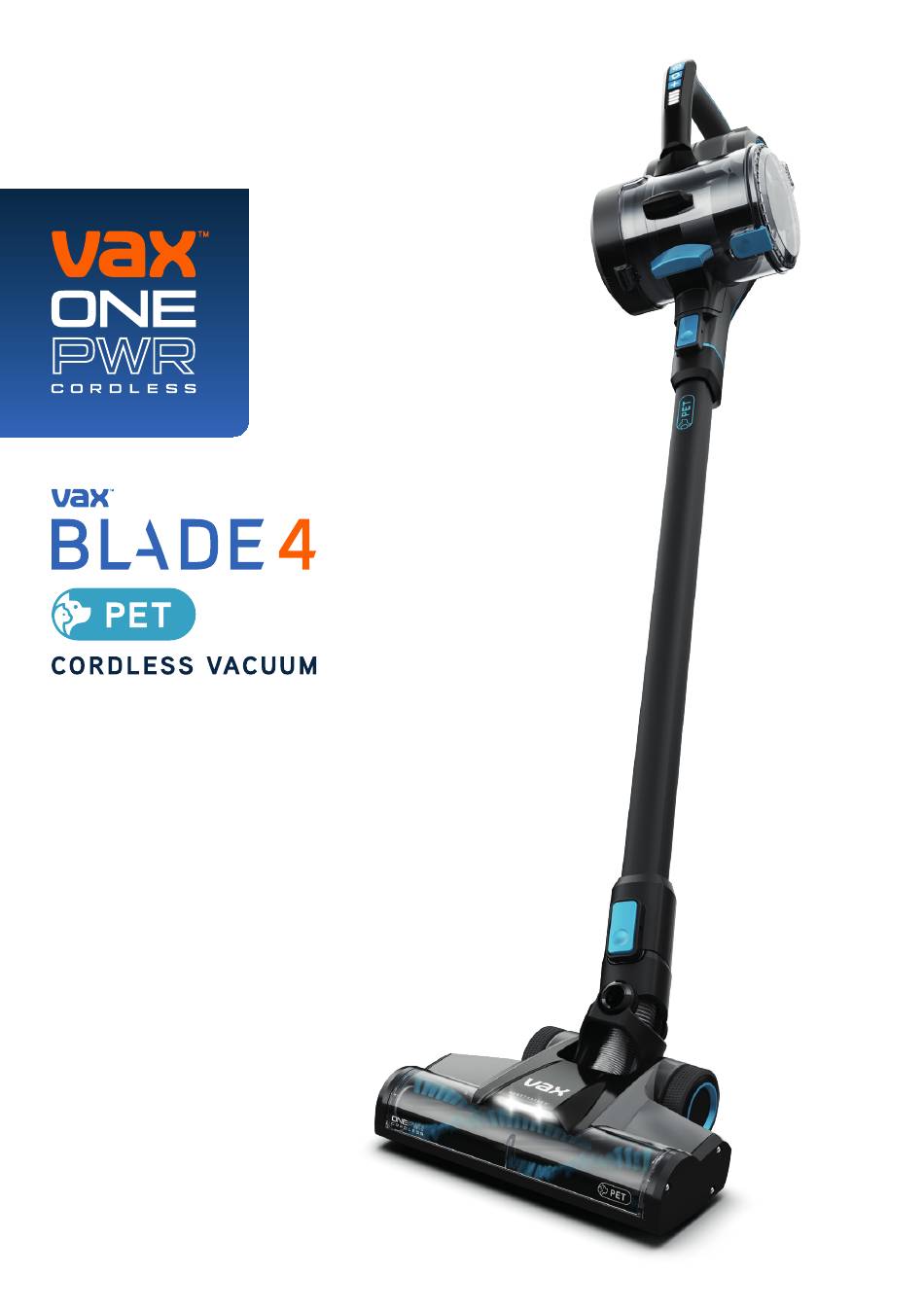

- Page 1 USER GUIDE CLSV-B4KP...
-
Page 2: Safety Guide
• Don’t use the machine to pick up hot DO’S coals, cigarette butts, matches or • Only VAX ONEPWR batteries smoking hot burning items or use in (BV15020/BV15030/BV25040) and an area where there may be harmful... - Page 3 Children shall not BATTERY SAFETY PRECAUTIONS use, clean or play with this machine, • Replace the battery with a VAX which when not in use should be ONEPWR battery only. Use of secured out of their reach.
-
Page 4: Warranty
- Blockages caused by misuse. TECHNICAL EU Statement of Compliance: Manufacturer/EU importer: VAX Limited, hereby on our own responsibility, declare that the VAX ONEPWR Blade 4 Pet is manufactured in compliance with the following Directives: Safety: 2014/35/EU Low Voltage Directive. -
Page 5: Getting To Know Your Machine
Crevice tool Dusting brush Crevice tool storage caddy Wall mount screws and wall plugs TECHNICAL SPECIFICATION VAX ONEPWR Blade 4 Pet Weight (without battery pack) 2.9kg Dirt bin capacity 0.6L Runtime and charge time dependent on battery pack and power mode used. -
Page 6: Getting Started
GETTING STARTED support.vax.co.uk ASSEMBLY To assemble the dirt container, line up the arrow on the dirt Attach the handheld to the reach wand until it clicks into place. container connection with the arrow on the handle. Push the Attach the reach wand to the powered floorhead until it clicks dirt container onto the handle until it clicks into place. -
Page 7: Charging The Battery
CHARGING THE BATTERY THIS MACHINE IS ONLY TO BE USED WITH VAX ONEPWR BATTERIES AND CHARGER. PLEASE READ THE SAFETY GUIDE BEFORE USE. NOTE: Before first use, ensure the battery is fully charged. Failure to fully charge the battery before first use may result in poor battery performance. - Page 8 GETTING STARTED support.vax.co.uk OPERATION Press the on/off button to switch the Press the brushbar on/off button to Press the boost button on to increase machine on. switch the brushbar on the powered the suction for particularly dirty areas. floorhead or mini motorised pet tool on.
-
Page 9: Cleaning And Maintenance
CLEANING & MAINTENANCE support.vax.co.uk REMOVING AND REFITTING THE DIRT CONTAINER WARNING: Always remove the battery before carrying out any maintenance or troubleshooting. 1. Squeeze the latch on the dirt To refit, line up the dirt container When correctly fitted all 3 connection container to release. - Page 10 CLEANING & MAINTENANCE support.vax.co.uk CLEANING THE FILTER AND SEPARATOR Lift the filter and separator from the Push the tab on the lid of the dirt container and lift the cover to access the filter. dirt container. Tap the separator over a bin to remove...
- Page 11 CLEANING & MAINTENANCE support.vax.co.uk REMOVING AND CLEANING THE POWERED FLOORHEAD BRUSHBAR Press the powered floorhead release Using a coin, push and turn the brushbar lock anticlockwise to release the brushbar. button to remove the powered floorhead from the machine. Pull the brushbar out from the brushbar...
- Page 12 CLEANING & MAINTENANCE support.vax.co.uk REMOVING AND CLEANING THE PET TOOL BRUSHBAR CAUTION: If the brushbar in the mini motorised pet tool has been obstructed, the brushbar motor protection sensor may have been activated. The brushbar will stop and the machine may switch off.
- Page 13 CLEANING & MAINTENANCE support.vax.co.uk CHECKING FOR BLOCKAGES Press the handheld release button and Press the dirt container release button Check the powered floorhead for any remove the reach wand. Check and clear and remove the dirt container. Check blockages and use a blunt object to...
-
Page 14: Troubleshooting
TROUBLESHOOTING support.vax.co.uk THERE IS AN ACCESSORY MISSING Check the contents on the back of the box. WHY DOES THE MACHINE HAVE NO POWER? • The battery is not fitted correctly. See OPERATION page 7. • The battery has no charge. See CHARGING THE BATTERY page 7.
