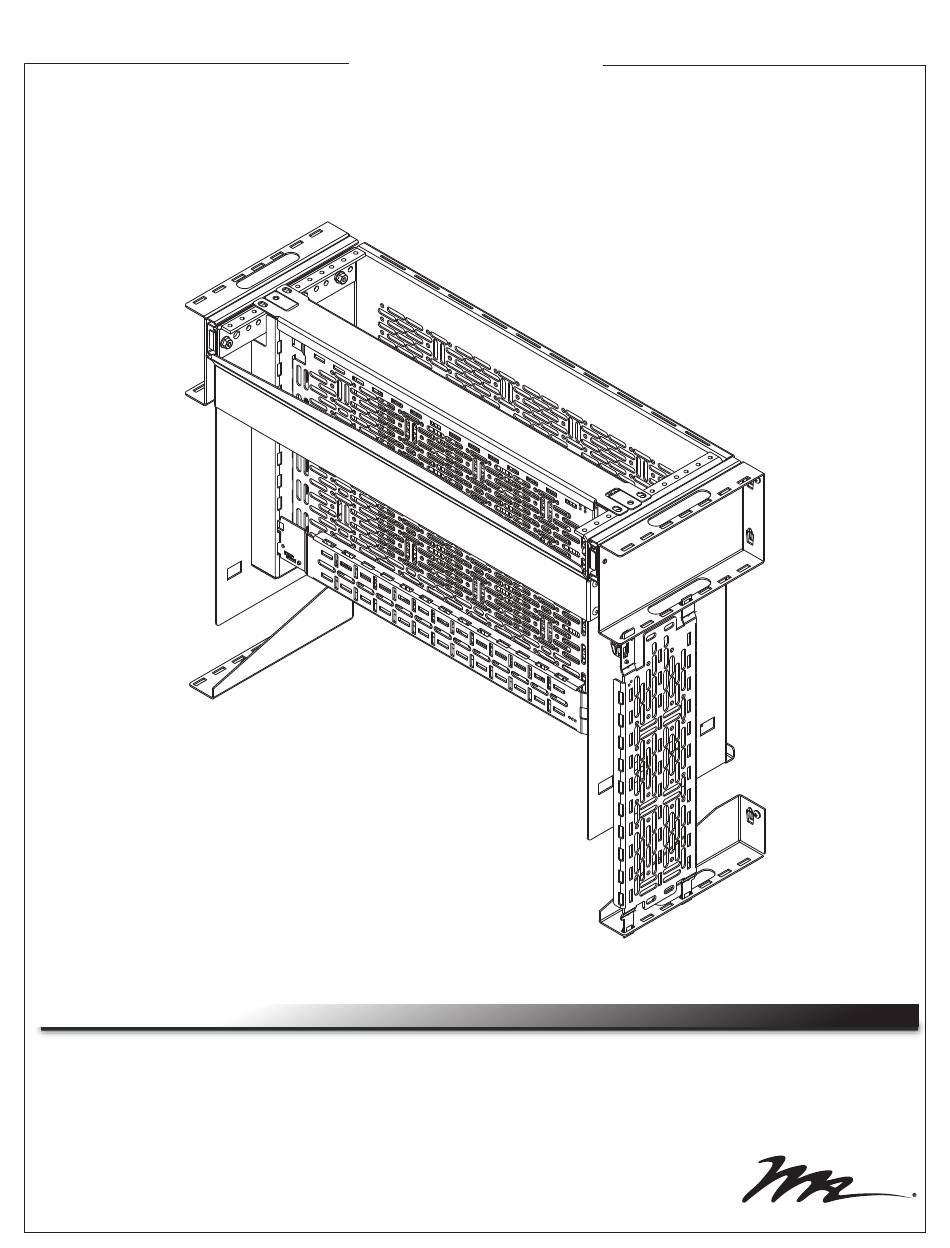

Instruction Sheet

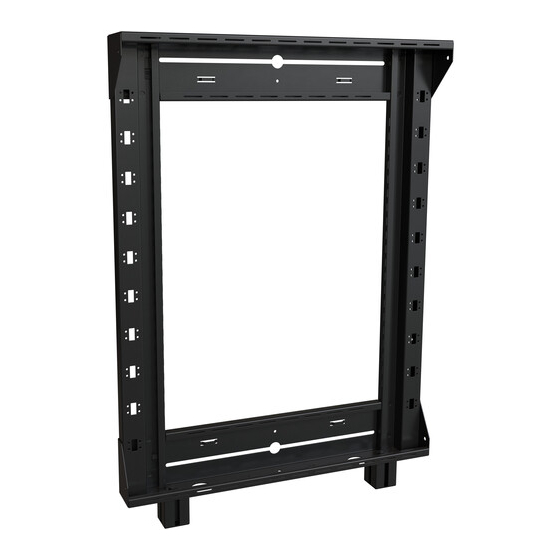

C3 Series
Slide-Out Rack (C3-TECHKIT4-SO) and
Lever Lock™ (LLOCKSWRF-KIT)
Options
NOTE: You may have purchased a
Lever Lock option (LLOCKSWRF-KIT)
for your Slide-Out Rack option
(C3-TECHKIT4-SO).
THANK YOU
Thank you for purchasing a C3 Series Slide-Out Rack option. Please read these instructions
thoroughly before installing or assembling this product.
100-00036
Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C3 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Middle Atlantic C3 Series

Summary of Contents for Middle Atlantic C3 Series

  • Page 1 NOTE: You may have purchased a Lever Lock option (LLOCKSWRF-KIT) for your Slide-Out Rack option (C3-TECHKIT4-SO). THANK YOU Thank you for purchasing a C3 Series Slide-Out Rack option. Please read these instructions thoroughly before installing or assembling this product. 100-00036 Rev A...

  • Page 2: Important Safety Instructions

    It is the responsibility of the Installer/User to ensure that this product is loaded according to specifications. WARNING: Middle Atlantic Products, electrical systems conform to and should be properly grounded in compliance with require- ments of the current National Electrical Code or codes administered by local authorities. All electrical products may present a possible shock or fire hazard if improperly installed or used.

  • Page 3: Instructions Importantes Sur La Sécurité

    AVERTISSEMENT: Les produits Middle Atlantic, les systèmes électriques sont conformes et doivent être correctement mis à la terre conformément aux exigences du Code national de l'électricité en vigueur ou aux codes administrés par les autorités locales.

  • Page 4: Weight Rating

    WEIGHT RATINGS Model Number Weight Rating C3 1-Bay 24” (610 mm) and 32” (813 mm) Height 75 lbs. (34 kg) Per Bay, 25 lbs. (11 kg) On Top, 100 lbs. (45 kg) Maximum Total Rated Load C3 2-Bay 24” (610 mm) and 32” (813 mm) Height 75 lbs.

  • Page 5: Required Tools

    INTRODUCTION NOTE: • Only use this instruction sheet to install your C3 Series Slide-Out Rack option after you refer to the C3 Series Credenza Frame instruction sheet (100-00032) and secure the frame to your wall. • If your installation includes a purchased fan kit and/or a large cover option (for your purchased display...
  • Page 6 1. Set power strip (J) aside and only install after the woodkit is attached to the frame. For more information, refer to the C3 Series WoodKit instruction sheet (100-00040). 2. Hook the shovel lances on the brackets of the partially pre-assembled slide-out rack (A) into the rectangular set of holes on the frame (shaded) as shown.
  • Page 7 INSTALLING THE SLIDE-OUT RACK OPTION (C3-TECHKIT4-SO, CONTINUED) 3. With the shovel lances hooked in the holes, push downward on the brackets until the rack locks into place. NOTE: Verify the torque on your power driver is on the lightest setting and only increase as necessary. 4.
  • Page 8 INSTALLING LEVER LOCK™ BRACKETS OUTSIDE OF RACK OPTIONS 2. With the shovel lances hooked in the holes, push downward on the brackets until they lock into place. NOTE: Adjust torque on power driver to lightest setting and increase as needed. 3.
  • Page 9 INSTALLING LEVER LOCK OPTION (LLOCKSWRF-KIT) INSIDE SLIDE-OUT RACK OPTION NOTE: The Lever Lock option requires the purchase of the Slide-Out Rack Option (C3-TECHKIT4-SO). 1. Remove your slide-out rack (A) from the brackets by pulling the rack into the open position, pushing down on the lever inside the left track and pulling up on the lever inside the right track while carefully lifting the rack off the brackets.
  • Page 10 INSTALLING LEVER LOCK OPTION INSIDE SLIDE-OUT RACK (CONTINUED) 3. Insert the tab on the end of the Lever Lock adapter bracket (K) into the opening of your selected position. (FIGURE J) FIGURE J NOTE: Verify the torque on your power driver is on the lightest setting and only increase as necessary. 4.
  • Page 11 INSTALLING LEVER LOCK OPTION INSIDE SLIDE-OUT RACK (CONTINUED) 5. Repeat the process to install the second Lever Lock adapter bracket (K) in the same position as the first, but on the opposite side of the rack. (FIGURE L) NOTE: There are 3 different depths available on the Lever Lock...

  • Page 12: Warranty

    C3 Series WoodKit instruction sheet (100-00040) to install your woodkit, and then refer to the C3 Series Fan Kit (C3-FANKIT) instruction sheet (100-00039) and/or C3 Series Display Mount Large Cover Option instruction sheet (100-00035) to install your fan kit and/or your large cover option, respectively.
